Built for longer welding lead runs in fabrication shops, mobile service operations, industrial maintenance areas, and welding workstations, the Coxreels 1125WCL-12-EA is a 115V explosion proof electric motor rewind welding cable reel from the 1125WCL Series. This model supports up to 2 AWG x 600 ft welding cable capacity and is rated for 450 amps through a drum-located slip ring assembly, allowing current to pass through the reel while keeping electrode or grounding cable stored in a cleaner, more controlled layout.
The 1/2 HP electric motor rewind helps retrieve long, heavy welding cable without hand cranking, which is especially useful when cable is repeatedly pulled across large work areas or field service setups. Its 115V explosion proof motor configuration is intended for applications where the installation requires that motor type, while the narrow drum design keeps electrical components inside the reel to reduce overall mounting width. This model is supplied less cable, giving the buyer flexibility to install the correct cable gauge and length for the welding machine, duty cycle, and jobsite layout.

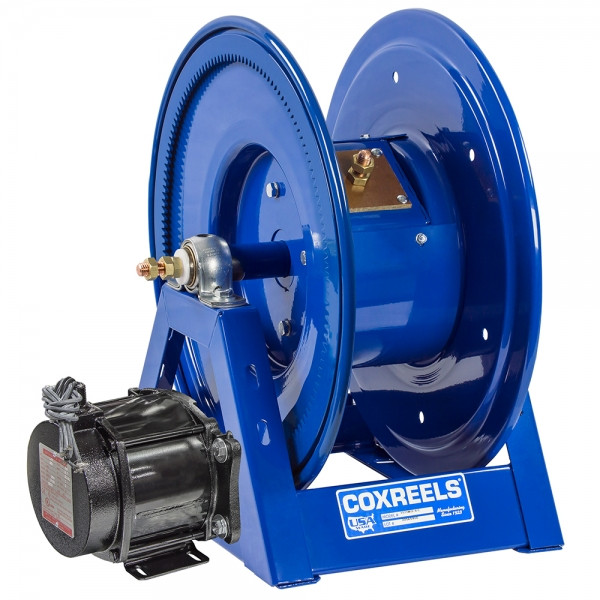

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any welding cable. Please note this before ordering.
Type: Motorized Welding Cable Reel | Series: 1125WCL Series | Model: 1125WCL-12-EA | Rewind: Electric Motor Rewind | Motor: 115V Explosion Proof, 1/2 HP | Configuration: Less Cable | Cable Capacity: Up to 2 AWG x 600 ft | Gauge Capacity: #2, #1, #1/0, #2/0 | Amp Rating: 450 AMPS | Ship Weight: 71 lbs | Overall Dimensions: 25.88" W x 19.13" H x 17.5" L | Mounting Pattern: 15.44" M x 10" N | Base: 17.38" X x 16" Y
Features:
- Drum-located slip ring assembly provides access through a removable panel for routine maintenance without removing the reel from its mount.
- 450 AMP rated slip ring supports current transfer for welding electrode and grounding lead applications.
- 115V explosion proof electric motor rewind retrieves long welding cable with less manual effort than hand-crank operation.
- 1/2 HP motor rewind configuration helps manage heavier cable loads and longer lead lengths in shop or field use.
- Electrical components are positioned inside the drum, creating a narrow-width reel for installations where side clearance matters.
- Reliable direct gear drive provides powered reel rotation without a chain.
- Permanently lubricated self-aligning pillow block bearings support smooth payout and rewind.
- Long-handled locking pin secures the reel from rotation during transport, storage, or equipment movement.
- One-piece CNC robotically welded 12 gauge steel A frame base provides a stable mounting platform with the mounting pattern located in the steel base.
- CNC spun and ribbed discs with rolled edges add strength while helping protect welding cable during use.
Made in USA:
Applications:
- Large fabrication shops: Managing longer electrode or ground leads across welding tables, fixtures, frame work, and production work areas.
- Industrial maintenance and MRO: Keeping welding cable organized for machinery repair, plant fabrication, bracket work, and general weld maintenance.
- Mobile welding and field service: Storing extended welding cable on trucks, trailers, and service skids where powered rewind speeds cable recovery after the job.
- Fleet and heavy equipment repair: Supporting weld repair on trailers, frames, buckets, guards, and structural components where cable reach is important.
- Electrode and grounding lead storage: Reducing loose cable on the floor while helping protect welding leads from dragging, tangling, and repeated handling damage.
FAQs:
- Q: Does the Coxreels 1125WCL-12-EA include welding cable?
A: No. This model is supplied less cable, so welding cable must be selected and installed separately. This allows the reel to be matched to the cable gauge, length, and welding amperage requirements of the application. - Q: How is the 1125WCL-12-EA different from the 1125WCL-6-EA?
A: The 1125WCL-12-EA has the larger 1125WCL frame and supports longer cable capacities, including up to 600 ft of #2 AWG cable. The 1125WCL-6-EA is the shorter-capacity version, with up to 300 ft of #2 AWG cable capacity. - Q: What does the 450 AMP rating apply to?
A: The 450 AMP rating applies to the reel's slip ring assembly, which carries welding current through the reel. The installed cable, connectors, welding machine, duty cycle, and job requirements must also be properly matched before use. - Q: Can this reel hold 600 ft of any welding cable size?
A: No. The 600 ft capacity applies to #2 AWG cable. Larger welding cable has a larger outside diameter, so listed maximum capacity decreases to 500 ft for #1 AWG, 400 ft for #1/0 AWG, and 300 ft for #2/0 AWG. - Q: Why choose an electric motor rewind welding cable reel?
A: Electric motor rewind reduces the effort required to retrieve long, heavy welding leads. It is useful in larger work areas, service truck installations, and repetitive welding operations where hand-cranking several hundred feet of cable would slow down cleanup and repositioning.
| LESS CABLE | SIZE INDEX | |||||
|---|---|---|---|---|---|---|
| SKU | CABLE TYPE & CAPACITY | APRX. LBS. |
||||
| #2 | #1 | #1/0 | #2/0 | |||
| 1125WCL-12-EA | 600' | 500' | 400' | 300' | 45 | 3 |
| 1125WCL-12-EB | 600' | 500' | 400' | 300' | 45 | 3 |
| 1125WCL-12-ED | 600' | 500' | 400' | 300' | 45 | 3 |
| 1125WCL-12-A | 600' | 500' | 400' | 300' | 45 | 3 |
| 1125WCL-12-C | 600' | 500' | 400' | 300' | 45 | 3 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
