Coxreels 1125-6-100-C Bevel Geared Crank Hose Reel | 1125 Series | 1" Hose Diameter | 100' Hose Length | 3000 Max PSI | Less Hose

Built for controlled manual hose retrieval in maintenance shops, fleet service areas, utility trucks, washdown stations, and industrial fluid handling setups, the Coxreels 1125-6-100-C is a 1125 Series bevel geared crank hose reel configured for 100 ft of 1" I.D. hose. The bevel geared crank provides mechanical assistance during rewind, helping operators bring larger hose assemblies back onto the drum with smoother, more controlled motion than a direct hand crank alone.

Rated for 3000 PSI, this reel supports medium-pressure service when the installed hose, fittings, swivel, and media are compatible with the complete system. Coxreels' all-welded steel 'A' frame, low-profile outlet riser, and open drum slot help guide the hose into a flat, non-crimping wrap during rewind. The less hose configuration gives buyers the flexibility to choose the correct hose material, end fittings, and pressure rating for air, water, oil, grease, lubrication, pressure washing, spraying, or washdown use.

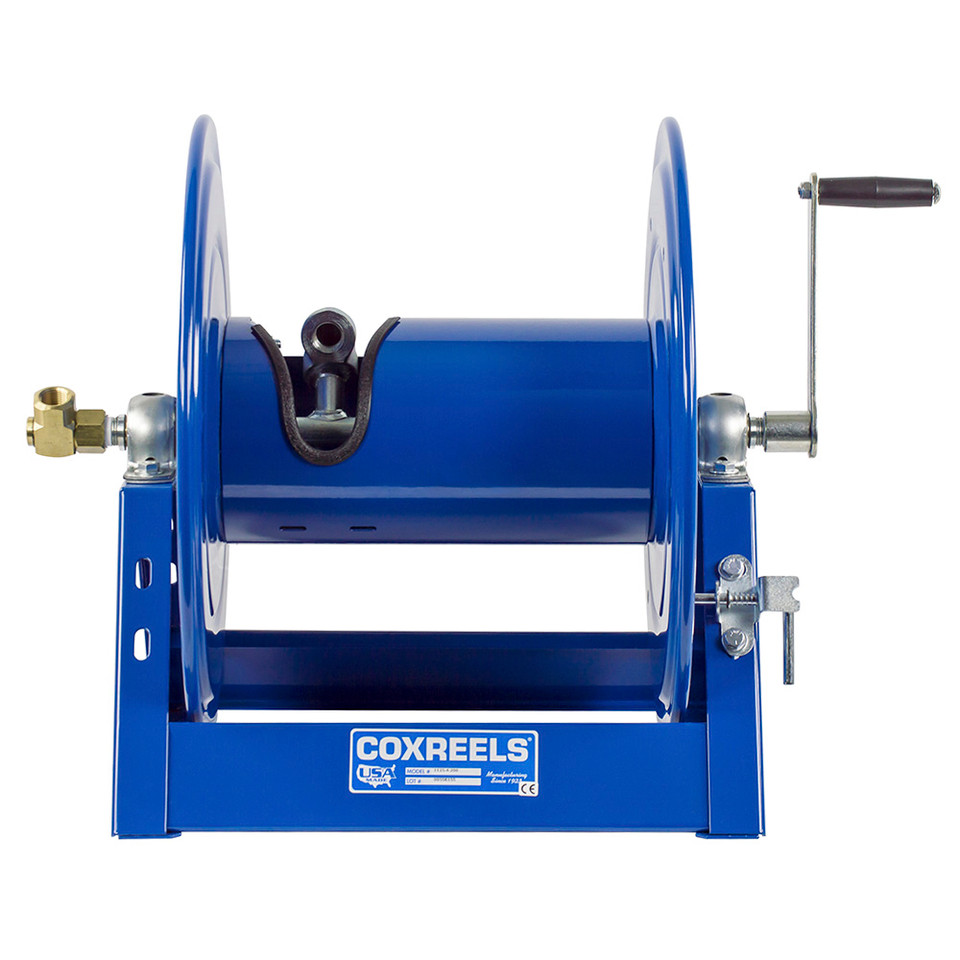

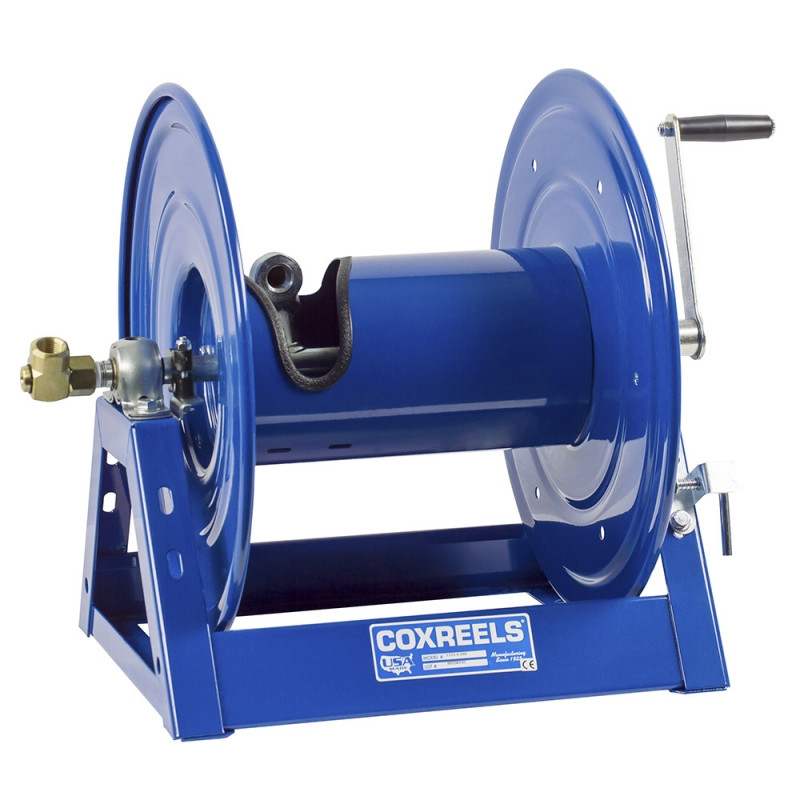

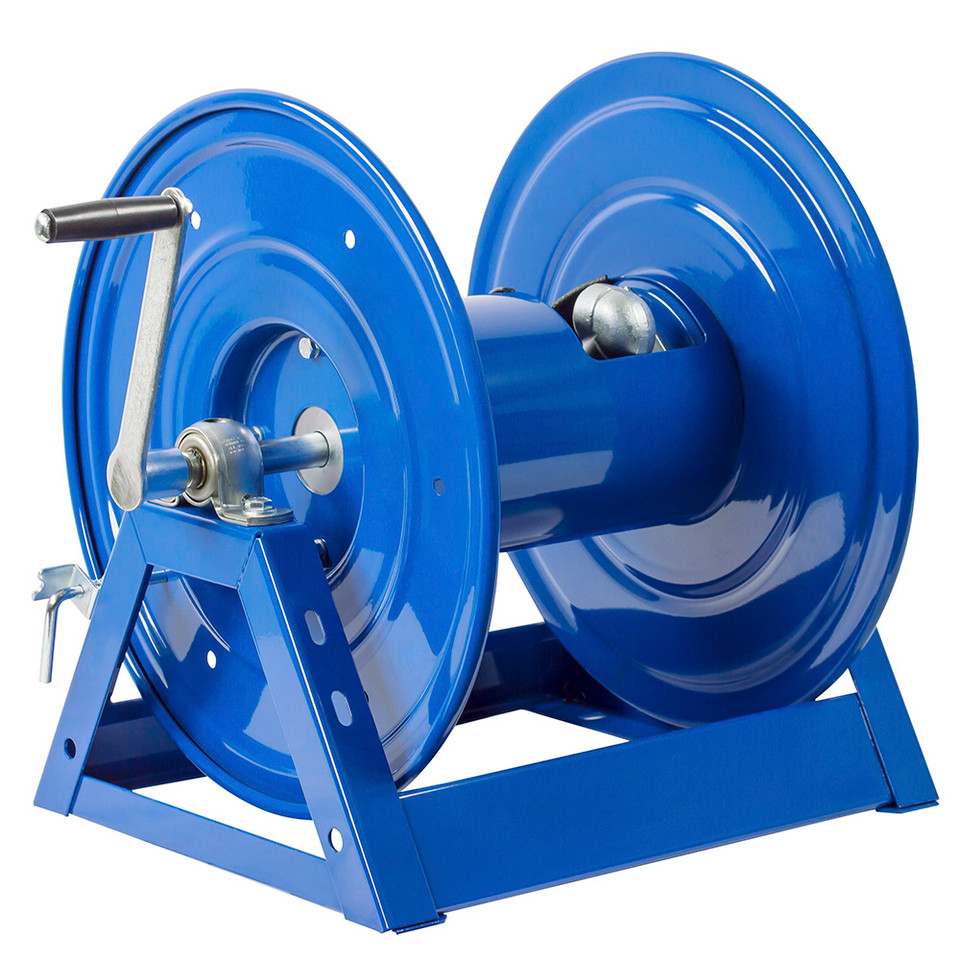

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Bevel Geared Crank Hose Reel | Series: 1125 Series | Model: 1125-6-100-C | Configuration: Less Hose | Rewind: Front Bevel Geared Crank | Hose I.D.: 1" | Hose O.D.: 1-7/16" | Hose Capacity: 100 ft | Hose Included: No | Max Pressure: 3000 PSI | Drum Width: 28" | Overall Dimensions: 44.5" W x 18.5" H x 17.63" L | Mounting Pattern: 31.44" M x 10" N | Base: 33.38" X x 15.38" Y | Ship Weight: 69 lb

Features:

• Front bevel geared crank provides mechanical retraction for controlled rewind of larger hose assemblies.
• One-piece all welded steel 'A' frame base provides a rigid structure for floor, bench, truck, trailer, skid, or equipment-mounted installations.
• Low-profile outlet riser and open drum slot help create a flat, smooth hose wrap while reducing crimping at the outlet path.
• External fluid path with nickel plated steel 90° full-flow NPT swivel on 1" models supports efficient flow through the reel.
• AFLAS swivel seals are used on 1" models for the reel's medium-pressure fluid path.
• Permanently lubricated, self-aligning pillow block bearings support smooth rotation during payout and rewind.
• Long-handled locking pin secures the reel from rotation during transport or storage.
• CPC powder coat finish, rolled edges, ribbed discs, and adjustable tension brake support hose protection, reel strength, and controlled operation.

Made in USA:

2 Year Warranty

Applications:

• Industrial MRO areas storing medium-pressure hose for air, water, oil, lubrication, grease, washdown, or general service tasks.
• Fleet maintenance and utility trucks where a manual geared crank reel is preferred over electric, hydraulic, or air motor rewind.
• Pressure washing and spraying setups when the installed hose and fittings match the 3000 PSI reel rating and selected media.
• Agricultural, grounds maintenance, and equipment service operations needing organized storage for longer 1" hose assemblies.
• Shop, skid, trailer, or plant floor installations where controlled hand rewind and less-hose flexibility are more important than powered rewind.

FAQs:

• Q: What does 'less hose' mean on the Coxreels 1125-6-100-C?
  A: It means this reel is supplied without hose installed. The buyer must provide compatible hose separately and confirm hose I.D., hose O.D., pressure rating, fittings, and media compatibility before use.
• Q: What does the C suffix mean?
  A: The C suffix identifies the bevel geared crank version. Instead of powered rewind, this model uses a front bevel geared crank to mechanically retract hose by hand.
• Q: How is this different from the standard 1125-6-100 hand crank reel?
  A: Both models hold 100 ft of 1" I.D. hose and are rated to 3000 PSI. The 1125-6-100-C adds the bevel geared crank configuration, which provides assisted mechanical retraction compared with a direct hand crank setup.
• Q: Can this reel be used at the full 3000 PSI rating?
  A: Yes, only when the hose, fittings, swivel, and connected equipment are also rated for the same working pressure and media. The final assembly should always be operated within the limit of the lowest-rated component.
• Q: What should be checked before mounting this reel?
  A: Confirm available mounting space, hose pull direction, mounting pattern, hose clearance, and operator access to the crank handle. This model lists overall dimensions of 44.5" W x 18.5" H x 17.63" L.
