Built for air-powered hose retrieval in maintenance shops, fleet service areas, mobile service rigs, and industrial fluid handling setups, the Coxreels 1125-6-100-A is a 1125 Series motor rewind hose reel equipped with a compressed air #4 Gast motor. This air motor rewind configuration uses compressed air to rotate the reel drum, helping retrieve longer hose runs without manual cranking. With capacity for 100 ft of 1" I.D. hose, this model gives buyers a larger-diameter hose platform for applications where flow capacity and hose storage length both matter.
Rated for 3000 PSI, the 1125-6-100-A is suited for medium-pressure service when the installed hose, fittings, swivel, and media are compatible with the full system. Coxreels' all-welded steel 'A' frame, low-profile outlet riser, and open drum slot help support a flat, smooth hose wrap during rewind. The less hose configuration lets buyers install the hose material, fittings, and pressure rating needed for their air, water, oil, lubrication, washdown, or pressure service application.

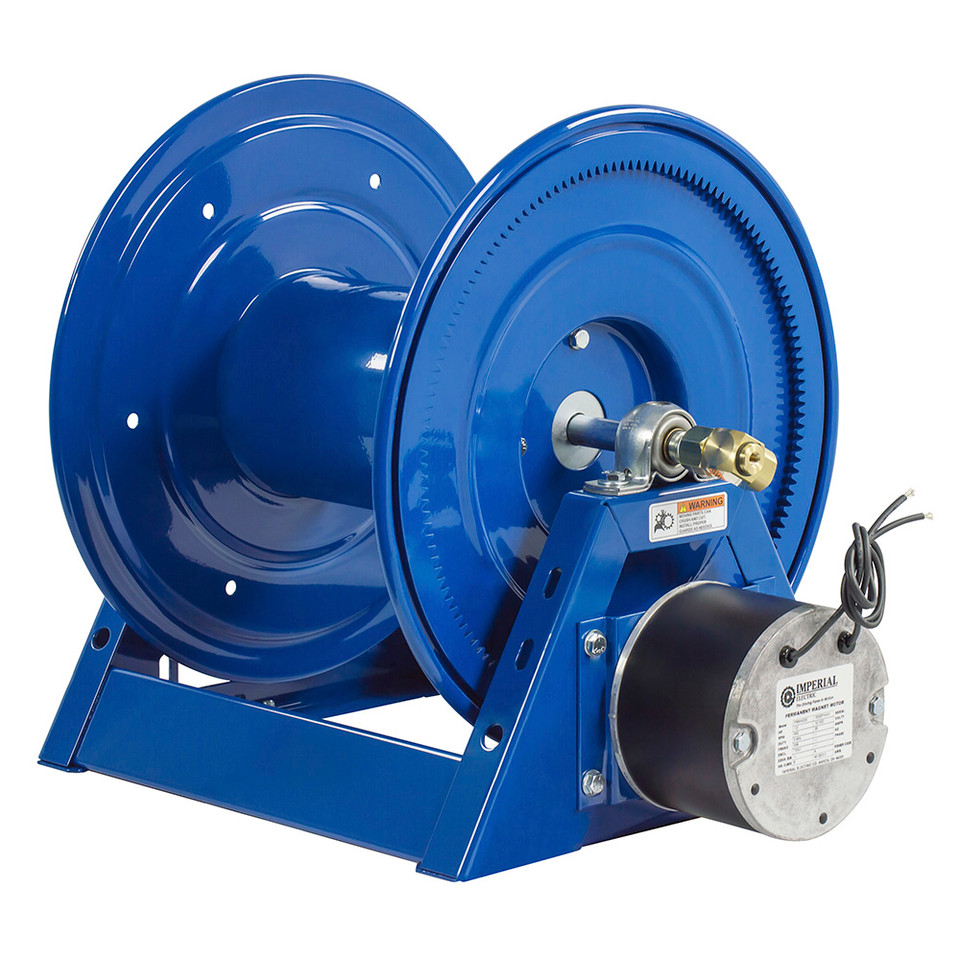

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Compressed Air Motor Rewind Hose Reel | Series: 1125 Series | Model: 1125-6-100-A | Configuration: Less Hose | Motor: Compressed Air #4 Gast Motor | Hose I.D.: 1" | Hose O.D.: 1-7/16" | Hose Capacity: 100 ft | Hose Included: No | Max Pressure: 3000 PSI | Overall Dimensions: 40.75" W x 18.5" H x 17.63" L | Mounting Pattern: 31.44" M x 10" N | Base: 33.38" X x 16" Y | Ship Weight: 77 lb
Features:
- Compressed air #4 Gast motor rewind uses shop or equipment air to retrieve hose without hand cranking.
- Direct gear drive on motor driven models provides quiet, smooth retraction with no chain drive.
- All welded steel 'A' frame construction provides a rigid base for truck, skid, bench, floor, or equipment-mounted installations.
- Low-profile outlet riser and open drum slot help guide hose into a flat wrap, reducing sharp bends during storage.
- Nickel plated steel 90° full-flow NPT swivel on 1" models supports efficient flow through the reels fluid path.
- AFLAS swivel seals are used on 1" models for the reels medium-pressure service configuration.
- Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation during payout and rewind.
- Adjustable tension brake helps reduce free-wheeling during operation, while the long-handled locking pin secures the reel during transport or storage.
Made in USA:
Applications:
- Fleet service and mobile maintenance trucks using compressed air to retract larger 1" hose assemblies.
- Industrial MRO areas where organized hose storage is needed for medium-pressure air, water, oil, lubrication, or washdown service.
- Construction and field service equipment where air-powered rewind helps manage long hose runs on skids, trailers, and service vehicles.
- Pressure washing and spraying systems where the installed hose and fittings match the 3000 PSI reel rating.
- Agricultural, grounds maintenance, and utility operations requiring a less-hose reel that can be fitted with application-specific hose.
FAQs:
- Q: What does 'less hose' mean on the Coxreels 1125-6-100-A?
A: It means the reel is supplied without hose installed. The buyer must provide compatible hose separately and verify hose I.D., hose O.D., pressure rating, fitting style, and media compatibility before installation. - Q: What does the A suffix mean?
A: The A suffix identifies the compressed air #4 Gast motor rewind option. This version uses an air motor for rewind instead of a hand crank, electric motor, or hydraulic motor. - Q: Is this reel for the same air line that runs through the hose?
A: The compressed air motor uses air to power the rewind mechanism, while the hose installed on the reel carries the application media. Confirm the installation layout so the air supply to the motor and the hose service path are connected correctly. - Q: Can this reel be used at 3000 PSI?
A: Yes, only when the installed hose, fittings, swivel, and all connected components are also rated for the required working pressure and media. The system should always be limited to the lowest-rated component in the assembly. - Q: What hose size does this model accept?
A: This model is listed for 100 ft of 1" I.D. hose with a 1-7/16" O.D. Using a different hose outside diameter may affect the reels actual capacity and wrap clearance.
| LESS HOSE | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | APRX. LBS. |
SIZE INDEX |
||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||
| 1125-6-100 | 1" | 1 7/16" | 100 | 3/4" | 1 1/4" | 150 | 1" F NPT | 3,000 | 69 | 14 |
| 1125-6-100-A | 1" | 1 7/16" | 100 | 3/4" | 1 1/4" | 150 | 1" F NPT | 3,000 | 69 | 14 |
| 1125-6-100-AB | 1" | 1 7/16" | 100 | 3/4" | 1 1/4" | 150 | 1" F NPT | 3,000 | 69 | 14 |
| 1125-6-100-C | 1" | 1 7/16" | 100 | 3/4" | 1 1/4" | 150 | 1" F NPT | 3,000 | 69 | 14 |
| 1125-6-100-E | 1" | 1 7/16" | 100 | 3/4" | 1 1/4" | 150 | 1" F NPT | 3,000 | 69 | 14 |
| 1125-6-100-EA | 1" | 1 7/16" | 100 | 3/4" | 1 1/4" | 150 | 1" F NPT | 3,000 | 69 | 14 |
| 1125-6-100-EB | 1" | 1 7/16" | 100 | 3/4" | 1 1/4" | 150 | 1" F NPT | 3,000 | 69 | 14 |
| 1125-6-100-ED | 1" | 1 7/16" | 100 | 3/4" | 1 1/4" | 150 | 1" F NPT | 3,000 | 69 | 14 |
| 1125-6-100-EF | 1" | 1 7/16" | 100 | 3/4" | 1 1/4" | 150 | 1" F NPT | 3,000 | 69 | 14 |
| 1125-6-100-H | 1" | 1 7/16" | 100 | 3/4" | 1 1/4" | 150 | 1" F NPT | 3,000 | 69 | 14 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
