Built for air-powered hose retrieval in service trucks, fleet maintenance bays, mobile washdown rigs, and industrial fluid handling stations, the Coxreels 1125-6-100-AB is a 1125 Series motor rewind hose reel equipped with a compressed air #6 Gast motor. The air motor rewind system uses compressed air to rotate the reel drum, helping retrieve long hose runs without hand cranking. With capacity for 100 ft of 1" I.D. hose, this model supports larger hose assemblies where both hose length and flow path size are important purchasing factors.
Rated for 3000 PSI, the 1125-6-100-AB is suited for medium-pressure service when the installed hose, fittings, swivel, and media are compatible with the entire system. Coxreels' one-piece all-welded steel 'A' frame, low-profile outlet riser, and open drum slot help guide the hose into a flat, smooth wrap during rewind. The less hose configuration gives buyers the flexibility to install the correct hose material, pressure rating, and end connections for air, water, oil, lubrication, washdown, pressure washing, spraying, or fluid-transfer service.

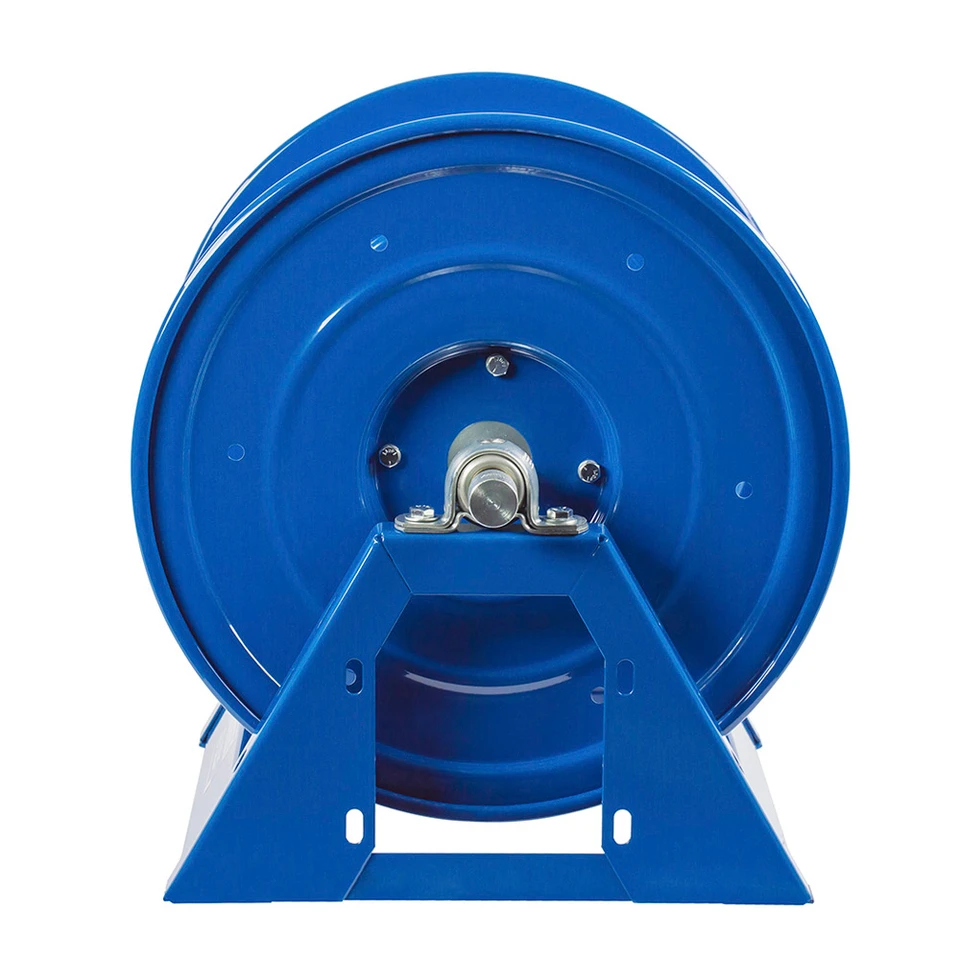

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Compressed Air Motor Rewind Hose Reel | Series: 1125 Series | Model: 1125-6-100-AB | Configuration: Less Hose | Motor: Compressed Air #6 Gast Motor | Hose I.D.: 1" | Hose O.D.: 1-7/16" | Hose Capacity: 100 ft | Hose Included: No | Max Pressure: 3000 PSI | Overall Dimensions: 40.75" W x 18.5" H x 17.63" L | Mounting Pattern: 31.44" M x 10" N | Base: 33.38" X x 16" Y | Ship Weight: 77 lb
Features:
- Compressed air #6 Gast motor rewind uses an air motor to retrieve hose without manual cranking.
- Direct gear drive on motor driven models provides quiet, smooth retraction with no chain drive.
- All welded steel 'A' frame construction provides a rigid base for truck, trailer, skid, floor, or equipment-mounted installations.
- Low-profile outlet riser and open drum slot help guide hose into a flat wrap during rewind.
- Nickel plated steel 90° full-flow NPT swivel on 1" models supports efficient flow through the reels fluid path.
- AFLAS swivel seals are used on 1" models for the reels medium-pressure service configuration.
- Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation during payout and rewind.
- Long-handled locking pin secures the reel from rotation during transport or storage, while the adjustable tension brake helps reduce free-wheeling during operation.
Made in USA:
Applications:
- Fleet and utility service trucks using compressed air to manage long 1" hose assemblies.
- Industrial MRO departments storing medium-pressure hose for air, water, oil, lubrication, washdown, or pressure service.
- Construction and field service rigs where air-powered rewind reduces manual handling of larger-diameter hose.
- Pressure washing, spraying, and water service setups when the selected hose and fittings match the 3000 PSI reel rating.
- Agricultural, grounds maintenance, and equipment service operations that need a less-hose reel for application-specific hose selection.
FAQs:
- Q: What does 'less hose' mean on the Coxreels 1125-6-100-AB?
A: It means the reel is supplied without hose installed. The buyer must provide compatible hose separately and confirm the hose I.D., hose O.D., pressure rating, fitting style, and media compatibility before installation. - Q: What does the AB suffix mean?
A: The AB suffix identifies the compressed air #6 Gast motor rewind option. This version uses an air motor for rewind rather than a hand crank, electric motor, or hydraulic motor. - Q: How is this different from the 1125-6-100-A?
A: Both models are compressed air motor rewind reels with the same 1" x 100 ft hose capacity and 3000 PSI reel rating. The key difference is the motor designation: the 1125-6-100-A uses a #4 Gast motor, while the 1125-6-100-AB uses a #6 Gast motor. - Q: Can this reel be used at the full 3000 PSI rating?
A: Yes, only when the installed hose, fittings, swivel, and connected system components are also rated for the working pressure and media being used. The safe working pressure of the final assembly is limited by the lowest-rated component. - Q: What should be confirmed before installing this air motor rewind reel?
A: Confirm mounting space, hose pull direction, air supply to the rewind motor, hose compatibility, fitting connection, and clearance around the reel. The listed overall dimensions are 40.75" W x 18.5" H x 17.63" L.
| LESS HOSE | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | APRX. LBS. |
SIZE INDEX |
||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||
| 1125-6-100 | 1" | 1 7/16" | 100 | 3/4" | 1 1/4" | 150 | 1" F NPT | 3,000 | 69 | 14 |
| 1125-6-100-A | 1" | 1 7/16" | 100 | 3/4" | 1 1/4" | 150 | 1" F NPT | 3,000 | 69 | 14 |
| 1125-6-100-AB | 1" | 1 7/16" | 100 | 3/4" | 1 1/4" | 150 | 1" F NPT | 3,000 | 69 | 14 |
| 1125-6-100-C | 1" | 1 7/16" | 100 | 3/4" | 1 1/4" | 150 | 1" F NPT | 3,000 | 69 | 14 |
| 1125-6-100-E | 1" | 1 7/16" | 100 | 3/4" | 1 1/4" | 150 | 1" F NPT | 3,000 | 69 | 14 |
| 1125-6-100-EA | 1" | 1 7/16" | 100 | 3/4" | 1 1/4" | 150 | 1" F NPT | 3,000 | 69 | 14 |
| 1125-6-100-EB | 1" | 1 7/16" | 100 | 3/4" | 1 1/4" | 150 | 1" F NPT | 3,000 | 69 | 14 |
| 1125-6-100-ED | 1" | 1 7/16" | 100 | 3/4" | 1 1/4" | 150 | 1" F NPT | 3,000 | 69 | 14 |
| 1125-6-100-EF | 1" | 1 7/16" | 100 | 3/4" | 1 1/4" | 150 | 1" F NPT | 3,000 | 69 | 14 |
| 1125-6-100-H | 1" | 1 7/16" | 100 | 3/4" | 1 1/4" | 150 | 1" F NPT | 3,000 | 69 | 14 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
