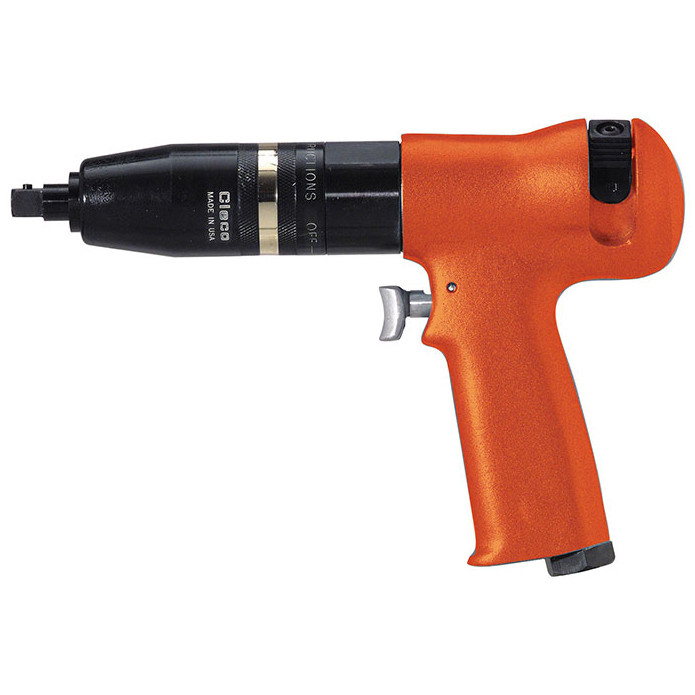

Cleco 88RSAPT-7CQ Sliding Knob Reverse Pneumatic Screwdriver | Push and Trigger Start | 88 Series | 550 RPM | 1.2 - 7.3 (ft-lbs) Torque Range | 1/4" Hex Quick Change Drive

Built for controlled production fastening where operators need both trigger control and push-to-start engagement, the Cleco 88RSAPT-7CQ sliding knob reverse pneumatic screwdriver delivers a 1.2 - 7.3 ft-lbs torque range for light-to-medium assembly fasteners. Its 550 RPM free speed provides a balanced rundown rate for seating screws, threaded inserts, and small fasteners without the aggressive speed of lighter high-RPM drivers.

This 88 Series model uses Cleco’s Clecomatic clutch, a torque-controlled clutch system that helps improve fastening repeatability by shutting off at the selected torque setting. The push and trigger start configuration gives operators two ways to initiate the fastening cycle, while the sliding knob reverse allows direction changes for screw removal, rework, or correction. The 1/4" hex quick-change drive accepts compatible insert bits for fast tooling changes at the assembly station.

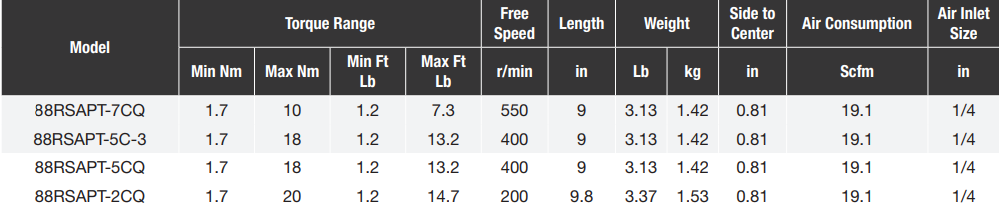

Type: Pneumatic Screwdriver | Series: Cleco 88 Series | Model: 88RSAPT-7CQ | Clutch Type: Clecomatic Clutch | Start Type: Push and Trigger Start | Reverse Type: Sliding Knob Reverse | Drive: 1/4" Hex Quick Change | Torque Range: 1.2 - 7.3 ft-lbs / 15 - 95 in-lbs / 1.7 - 10 Nm | Free Speed: 550 RPM | Length: 9.0" / 229 mm | Weight: 3.1 lbs / 1.4 kg | Air Inlet: 1/4" NPT | Minimum Hose I.D.: 1/4" | Air Consumption: 19 SCFM | Rated Air Pressure: 90 PSI / 620 kPa

Features:

• Clecomatic clutch delivers consistent torque accuracy and repeatability for production fastening.
• Push and trigger start configuration gives operators flexible start control for different assembly positions and work methods.
• Sliding knob reverse allows direction changes for backing out screws, correcting misstarts, and performing rework.
• 1.2 - 7.3 ft-lbs torque range supports controlled fastening of light-to-medium assembly fasteners.
• 550 RPM free speed provides a steady rundown speed for controlled seating without excessive fastener speed.
• 1/4" hex quick change drive accepts compatible insert bits and helps reduce downtime during bit changes.
• Compact 88 Series design saves weight and supports integration into bench, line, and fixture-based assembly environments.
• Standard equipment includes operating instructions and service manual, suspension bail, all torque springs required to meet the indicated torque range, and side handle 861006PT on models above 8 ft-lbs torque.

Applications:

• Electronics and appliance assembly for controlled fastening of housings, brackets, panels, and internal components.
• Automotive component production where repeatable torque helps protect threaded inserts, trim hardware, and small mechanical assemblies.
• Light manufacturing lines using 1/4" hex screwdriver bits for screws, machine screws, and repeated fastening operations.
• Industrial repair benches where reversible pneumatic screwdriving helps remove and reinstall covers, guards, and access plates.
• Fixture-based assembly stations, where push and trigger start options give operators more control over how the fastening cycle begins.

FAQs:

• Q: What torque range does the Cleco 88RSAPT-7CQ provide?
  A: The 88RSAPT-7CQ provides 1.2 - 7.3 ft-lbs of torque, equal to 15 - 95 in-lbs or 1.7 - 10 Nm. This range is used for controlled assembly fastening, not high-torque bolt removal.
• Q: What does push and trigger start mean?
  A: Push and trigger start means the tool can be activated by applying axial pressure and using the trigger, giving the operator controlled engagement before the fastening cycle begins. This can be useful when aligning the bit before the rundown.
• Q: How does the sliding knob reverse differ from the push button reverse?
  A: Sliding knob reverse uses a sliding selector to change tool direction, while push button reverse uses a button-style control. Both allow screw removal and correction, but the preferred style depends on operator preference and station layout.
• Q: What bits fit the 1/4" hex quick-change drive?
  A: This model accepts compatible 1/4" hex insert bits, including common Phillips, Torx, hex, and other assembly bit styles. Always match the bit profile and bit quality to the fastener and torque setting.
• Q: What air supply does this screwdriver require?
  A: Cleco rates the tool at 90 PSI, or 620 kPa, for maximum rated torque. The listed air inlet is 1/4" NPT, with 19 SCFM air consumption and a 1/4" minimum hose I.D. shown in the product data.
