Cleco 88RSAPT-5CQ Sliding Knob Reverse Pneumatic Screwdriver | Push and Trigger Start | 88 Series | 400 RPM | 1.2 - 7.3 (ft-lbs) Torque Range | | 1/4" Hex Quick Change Drive

Built for controlled fastening in production cells, bench assembly, and repair stations, the Cleco 88RSAPT-5CQ sliding knob reverse pneumatic screwdriver delivers a 1.2 - 7.3 ft-lbs torque range for light-to-medium assembly screws and threaded fasteners. Its 400 RPM free speed gives operators a slower, more controlled rundown than the 550 RPM version, making it useful when the fastening process benefits from deliberate seating speed rather than a faster cycle rate.

This 88 Series screwdriver uses Cleco’s Clecomatic clutch, a torque-controlled clutch system that helps stop the tool at the selected torque setting for repeatable fastening results. The push and trigger start layout helps the operator align the bit before the cycle begins, while the sliding knob reverse allows direction changes for screw removal, correction, or rework. The 1/4" hex quick-change drive accepts compatible insert bits for fast tooling changes at the assembly station.

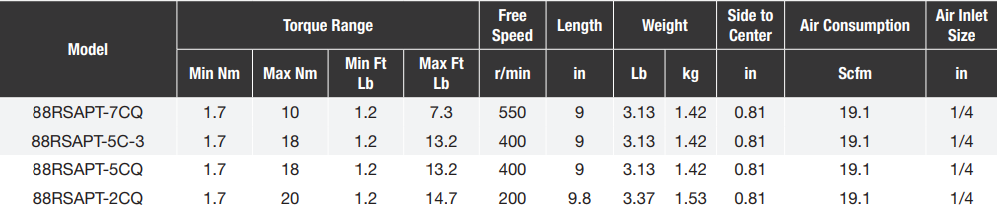

Type: Pneumatic Screwdriver | Series: Cleco 88 Series | Model: 88RSAPT-5CQ | Clutch Type: Clecomatic Clutch | Start Type: Push and Trigger Start | Reverse Type: Sliding Knob Reverse | Drive: 1/4" Hex Quick Change | Torque Range: 1.2 - 7.3 ft-lbs / 15 - 95 in-lbs / 1.7 - 10 Nm | Free Speed: 400 RPM | Length: 9.0" / 229 mm | Weight: 3.1 lbs / 1.4 kg | Air Inlet: 1/4" NPT | Minimum Hose I.D.: 1/4" | Air Consumption: 19 SCFM | Rated Air Pressure: 90 PSI / 620 kPa

Features:

• Clecomatic clutch supports torque-controlled fastening for repeatable production assembly.
• 1.2 - 7.3 ft-lbs torque range handles light-to-medium assembly screws and threaded fasteners.
• 400 RPM free speed provides controlled rundown, where slower seating speed is preferred over faster cycle rate.
• Push and trigger start configuration helps operators align the bit and control the start of each fastening cycle.
• Sliding knob reverse allows direction changes for removing screws, clearing misstarts, and completing rework.
• 1/4" hex quick change drive accepts compatible insert bits and helps reduce downtime during bit changes.
• Compact 88 Series format supports use at assembly benches, production lines, and fixture-based workstations.
• Standard equipment includes operating instructions and service manual, suspension bail, all torque springs required to meet the indicated torque range, and side handle 861006PT on models above 8 ft-lbs torque.

Applications:

• Appliance and equipment assembly for installing covers, housings, brackets, and internal components.
• Electronics and light manufacturing work where repeatable torque helps protect threaded inserts and smaller fasteners.
• Automotive component production involving trim parts, panels, small brackets, and controlled screwdriving tasks.
• Industrial repair benches used for removing and reinstalling guards, access plates, covers, and machine panels.
• Fixture-based assembly stations where push and trigger start control help operators align the bit before the rundown.

FAQs:

• Q: What is the torque range of the Cleco 88RSAPT-5CQ?
  A: The 88RSAPT-5CQ provides 1.2 - 7.3 ft-lbs of torque, equal to 15 - 95 in-lbs or 1.7 - 10 Nm. This range is suited to controlled assembly fastening, not high-torque breakaway work.
• Q: How is the 88RSAPT-5CQ different from the 88RSAPT-7CQ?
  A: Both models share the same 1.2 - 7.3 ft-lbs torque range and 1/4" hex quick change drive, but the 88RSAPT-5CQ runs at 400 RPM while the 88RSAPT-7CQ runs at 550 RPM. Choose the 5CQ when a slower rundown speed gives better control for the joint or process.
• Q: What does push and trigger start mean?
  A: Push and trigger start means the tool cycle is initiated using trigger control with axial pressure at the bit. This helps the operator stabilize the bit in the fastener before the rundown begins.
• Q: What is the sliding knob reverse used for?
  A: Sliding knob reverse changes the tool direction so operators can remove screws, back out a misstarted fastener, or complete rework without changing to another tool.
• Q: What air supply does this screwdriver need?
  A: Cleco rates this tool at 90 PSI, or 620 kPa. The listed air requirements include a 1/4" NPT air inlet, 1/4" minimum hose I.D., and 19 SCFM air consumption.

Looking for more information about the Cleco Screwdriver? Click here to view the Catalog.

Need help selecting the correct Cleco Screwdrivers for your application? Please call (800) 608-5210 or email info@intlairtool.com
