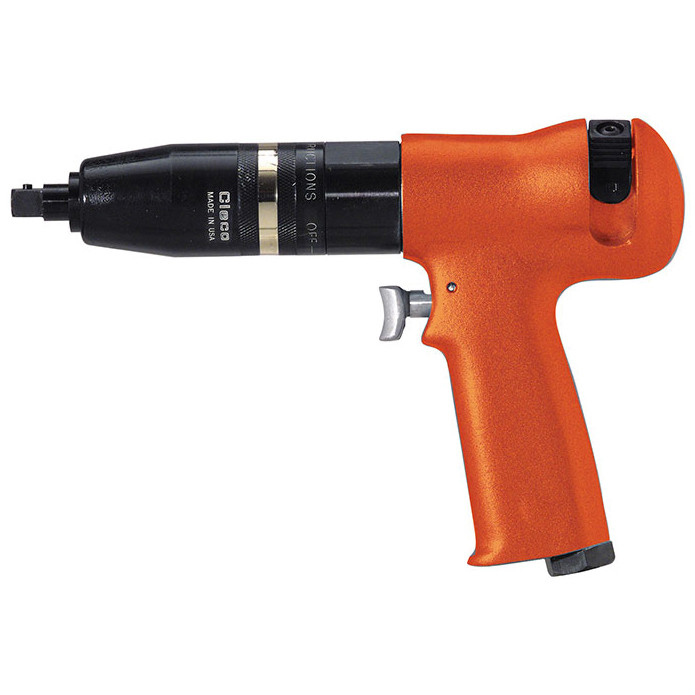

Cleco 88RSAPT-5C-3 Sliding Knob Reverse Pneumatic Screwdriver | Push and Trigger Start | 88 Series | 400 RPM | 1.2 - 13.2 (ft-lbs) Torque Range | 3/8" Square Drive

Built for controlled socket-driven fastening in production assembly, the Cleco 88RSAPT-5C-3 sliding knob reverse pneumatic screwdriver delivers a 1.2 - 13.2 ft-lbs torque range for small bolts, hex-head screws, and threaded fasteners that require repeatable torque rather than impact-style breakaway force. Its 400 RPM free speed gives operators a controlled rundown rate, helping seat fasteners consistently in mechanical assemblies, fixtures, and component build stations.

This 88 Series push and trigger start model uses Cleco’s Clecomatic clutch, a torque-controlled clutch system that helps stop the tool at the selected torque setting for repeatable fastening. The sliding knob reverse allows direction changes for removal, correction, and rework, while the 3/8" square drive accepts compatible sockets for assembly jobs that use hex-head fasteners instead of screwdriver bits.

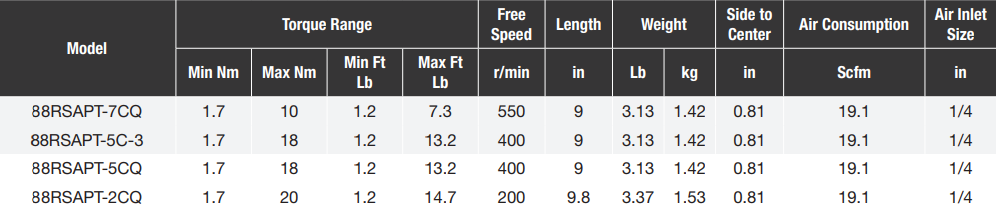

Type: Pistol Grip Pneumatic Screwdriver | Series: Cleco 88 Series | Model: 88RSAPT-5C-3 | Clutch Type: Clecomatic Clutch | Start Type: Push and Trigger Start | Reverse Type: Sliding Knob Reverse | Drive: 3/8" Square Drive | Torque Range: 1.2 - 13.2 ft-lbs / 15 - 160 in-lbs / 1.7 - 18 Nm | Free Speed: 400 RPM | Length: 9.0" / 229 mm | Weight: 3.1 lbs / 1.4 kg | Air Inlet: 1/4" NPT | Minimum Hose I.D.: 1/4" | Air Consumption: 19 SCFM | Rated Air Pressure: 90 PSI / 620 kPa

Features:

• Clecomatic clutch supports repeatable torque-controlled fastening for production assembly environments.
• 1.2 - 13.2 ft-lbs torque range handles small bolts, hex-head screws, and moderate-torque threaded fasteners.
• 400 RPM free speed provides controlled rundown speed for fastening jobs where seating control matters more than maximum cycle speed.
• Push and trigger start configuration helps operators stabilize the socket and control the start of each fastening cycle.
• Sliding knob reverse allows quick direction changes for backing out fasteners, correcting misstarts, and completing rework.
• 3/8" square drive accepts compatible sockets for socket-driven assembly applications.
• Pistol grip format provides trigger control for bench, line, and fixture-based fastening stations.
• Standard equipment includes operating instructions and service manual, suspension bail, all torque springs required to meet the indicated torque range, and side handle 861006PT on models above 8 ft-lbs torque.

Applications:

• Mechanical assembly stations fasten small bolts, hex-head screws, brackets, covers, and component hardware.
• Automotive and off-road equipment component production, where controlled socket fastening helps protect threaded joints.
• Appliance and machinery manufacturing for repeatable rundown of panels, frames, guards, and subassemblies.
• Industrial repair benches used for removing and reinstalling socket-head or hex-head fasteners during service work.
• Fixture-based fastening operations, where push and trigger start control help operators align the socket before applying torque.

FAQs:

• Q: What torque range does the Cleco 88RSAPT-5C-3 provide?
  A: The 88RSAPT-5C-3 provides 1.2 - 13.2 ft-lbs of torque, equal to 15 - 160 in-lbs or 1.7 - 18 Nm. This range is intended for controlled assembly fastening, not impact wrench-style removal of seized fasteners.
• Q: Why choose the 3/8" square drive version?
  A: The 3/8" square drive accepts compatible sockets for hex-head fasteners and small bolts. Choose this model when the station uses sockets rather than 1/4" hex insert bits.
• Q: How is the 88RSAPT-5C-3 different from the 88RSAPT-5CQ?
  A: Both models share the same 400 RPM speed and 1.2 - 13.2 ft-lbs torque range, but the 88RSAPT-5C-3 has a 3/8" square drive for sockets. The 88RSAPT-5CQ uses a 1/4" hex quick change drive for screwdriver bits.
• Q: What does push and trigger start mean?
  A: Push and trigger start means the operator uses trigger control while applying pressure at the fastener. This helps stabilize the socket before the tool begins the fastening cycle.
• Q: What air supply does this screwdriver require?
  A: Cleco rates this tool at 90 PSI, or 620 kPa. The listed air requirements include a 1/4" NPT air inlet, 1/4" minimum hose I.D., and 19 SCFM air consumption.

Looking for more information about Cleco Screwdriver? Click here to view the Catalog.
