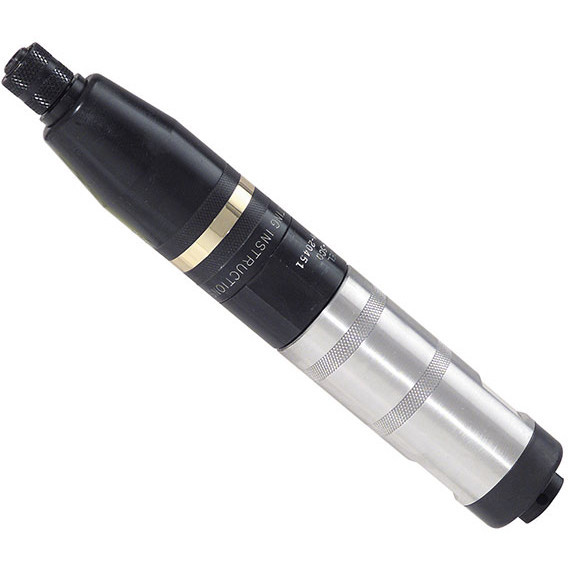

Cleco 88RSA-5CQ Push Button Reverse Inline Pneumatic Screwdriver | 88 Series | 400 RPM | 1.2 - 13.2 (ft-lbs) Torque Range | 1/4" Hex Quick Change Drive

Built for controlled threaded-fastener assembly, the Cleco 88RSA-5CQ push button reverse inline pneumatic screwdriver gives production operators a balanced straight-body tool for repeat-cycle fastening, adjustment, and rework. Its 1.2 - 13.2 ft-lbs torque range supports medium-torque screw and small-bolt applications where repeatability matters more than impact force, while the 400 RPM free speed provides measured rundown control for assemblies that should not be overdriven. The 1/4" hex quick change drive accepts compatible hex screwdriver bits and bit holders, helping teams swap bits quickly between workstations or fastener sizes.

The 88 Series uses a Clecomatic clutch, a shut-off style torque-control clutch that stops at the selected torque to improve fastening consistency across repeated cycles. Push-to-start operation begins rundown when the bit is pressed into the fastener, and the push button reverse lets the operator back out screws or correct a joint without reaching for a separate tool. With 19.1 SCFM air consumption, a 1/4" NPT air inlet, and a 90 PSI operating requirement, the 88RSA-5CQ fits assembly benches, fixture stations, appliance production, vehicle component assembly, and light manufacturing lines with regulated compressed air.

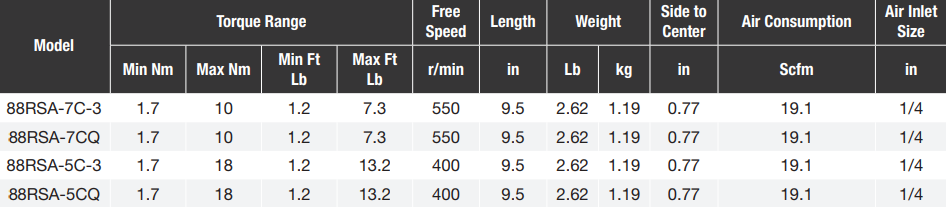

Type: Inline Pneumatic Screwdriver | Series: 88 Series | Model: 88RSA-5CQ | Start Type: Push-to-Start | Reverse Type: Push Button Reverse | Drive Type: Hex Quick Change | Drive Size: 1/4" | Torque Range: 1.2 - 13.2 ft-lbs / 1.7 - 18 Nm | Free Speed: 400 RPM | Length: 9.5" | Weight: 2.62 lb / 1.19 kg | Side to Center: 0.77" | Air Consumption: 19.1 SCFM | Air Inlet: 1/4" NPT | Required Air Pressure: 90 PSI

Features:

• Compact inline configuration supports straight access to fasteners at bench, fixture, and assembly-line workstations.
• Clecomatic clutch provides shut-off torque control for repeatable fastening on production assemblies.
• Push-to-start operation begins rundown when the bit is pressed into the fastener, reducing extra trigger movement during repetitive work.
• Push button reverse allows fastener removal, correction, or rework without switching tools.
• Cleco motor construction is suited to pneumatic assembly environments where tool consistency and serviceability are important.
• High parts interchangeability with other Cleco products helps simplify tool-room maintenance and service planning.
• CQ 1/4" quick release output supports fast bit changes for mixed screw sizes and station changeovers.
• Side handle 861006 is supplied on models above 8 ft-lbs torque capacity for added control during higher-torque fastening.

Made in USA:

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator FRL)

Applications:

• Production assembly: tightening threaded fasteners on repeat-cycle workstations where shut-off torque control helps maintain consistency from part to part.
• Appliance and equipment manufacturing: fastening panels, brackets, housings, covers, and internal components that require controlled rundown instead of impact force.
• Automotive and vehicle component assembly: installing screws and small bolts in subassemblies, interior components, fixture-held parts, and light-duty production cells.
• Electronics and light manufacturing: driving fasteners into assemblies where the inline body keeps the bit aligned with the joint.
• Maintenance and rework stations: removing, correcting, and reinstalling fasteners using push button reverse during inspection, repair, or adjustment.

FAQs:

• Q: What does the Clecomatic clutch do?
  A: The Clecomatic clutch is a shut-off style torque-control clutch. It helps stop the tool at the selected torque setting, improving repeatability compared with fastening by feel alone.
• Q: Is the 88RSA-5CQ intended for high-speed screw rundown?
  A: This model runs at 400 RPM, so it is better suited to controlled medium-torque fastening than very fast low-torque rundown. For faster cycle speeds at lower torque, compare the higher-speed 88 Series models.
• Q: What bits fit the 1/4" hex quick change drive?
  A: The CQ output is made for compatible 1/4" hex screwdriver bits and bit holders. Match the bit type, length, and fastener style to the assembly station before use.
• Q: What air setup is required for this pneumatic screwdriver?
  A: Cleco rates the tool for maximum torque at 90 PSI. The tool uses 19.1 SCFM and has a 1/4" NPT air inlet, so it should be supplied through a properly regulated compressed-air line.
• Q: Does this model include a side handle?
  A: Yes. Cleco catalog information lists side handle 861006 on models above 8 ft-lbs torque capacity, and the 88RSA-5CQ is rated up to 13.2 ft-lbs.

Looking for more information about Cleco Tool? Click here to view the Catalog.

Need help selecting the correct Cleco Screwdrivers for your application? Please call (800) 608-5210 or email info@intlairtool.com
