Cleco 88RSA-5C-3 Push Button Reverse Inline Pneumatic Screwdriver | 88 Series | 400 RPM | 1.2 - 13.2 (ft-lbs) Torque Range | 3/8" Square Drive

When a fastening station needs more torque than a light-duty screwdriver but still requires inline control, the Cleco 88RSA-5C-3 provides a compact pneumatic solution for socket-driven assembly work. This 88 Series inline pneumatic screwdriver runs at 400 RPM, giving operators a slower, more controlled rundown speed than higher-RPM models when working with fasteners that need careful seating. Its 1.2 - 13.2 ft-lbs torque range covers a useful band for small bolts, machine screws, brackets, covers, and production hardware where repeatability matters.

The 3/8" square drive output is intended for compatible sockets rather than screwdriver bits, making this model a strong fit for assembly jobs that use hex-head fasteners, nuts, or socket-driven hardware. Push-to-start actuation starts the tool when forward pressure is applied, while push button reverse allows quick removal or correction without reaching for a second tool. The Clecomatic clutch (Cleco’s torque-control clutch for repeatable shut-off performance) helps maintain consistent fastening results across repeated cycles in production, repair, and MRO environments.

Type: Inline Pneumatic Screwdriver | Series: 88 Series | Model: 88RSA-5C-3 | Start Type: Push-to-Start | Reverse Type: Push Button Reverse | Drive Size: 3/8" Square Drive | Torque Range: 1.2 - 13.2 ft-lbs / 1.7 - 18 Nm | Free Speed: 400 RPM | Length: 9.5" / 241 mm | Weight: 2.62 lb / 1.19 kg | Air Consumption: 19.1 SCFM | Air Inlet: 1/4" NPT | Minimum Hose Size: 3/8" | Rated Air Pressure: 90 PSI / 620 kPa

Features:

• 400 RPM free speed provides a controlled rundown rate for applications where fastener seating and torque repeatability are more important than maximum speed.
• Push-to-start operation lets the operator begin each fastening cycle by applying forward pressure, helping reduce hand motion during repetitive assembly tasks.
• Push button reverse allows quick backing out of fasteners during rework, alignment checks, or service operations.
• Dependable Clecomatic clutch delivers consistent torque accuracy and repeatability in production fastening applications.
• Compact inline configuration helps the tool fit into bench assembly stations, fixtures, and workstation layouts where pistol-grip tools may be less convenient.
• Cleco motor construction supports routine pneumatic assembly use in manufacturing and maintenance settings.
• High parts interchangeability with other Cleco products helps simplify service planning, spare parts management, and tool crib support.
• 3/8" square drive output accepts compatible sockets for nut-running and bolt-fastening jobs.

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator FRL)

Applications:

• Production assembly benches — fastening small bolts, nuts, clamps, brackets, and covers with repeatable torque control.
• Appliance and light equipment manufacturing — assembling panels, housings, guards, and mechanical subassemblies that use socket-driven hardware.
• Automotive component work — controlled installation and removal of small fasteners on interior parts, brackets, trim-related assemblies, and subcomponents.
• Industrial maintenance and MRO — reinstalling small machine fasteners after service, inspection, or component replacement.
• Fixture and tool room work — fastening jigs, tooling plates, small guards, and shop-built assemblies where a compact inline air tool is preferred.

FAQs:

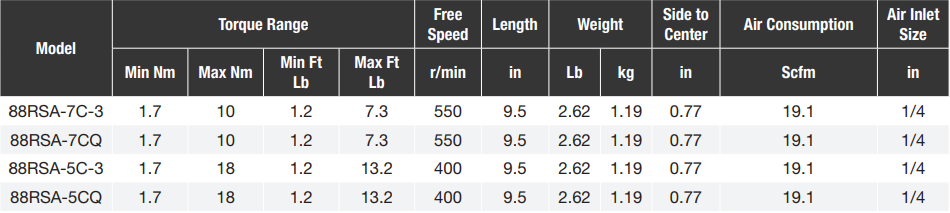

• Q: How is the 88RSA-5C-3 different from the 88RSA-7C-3?
  A: The 88RSA-5C-3 runs at 400 RPM and offers a higher maximum torque range of 13.2 ft-lbs. The 88RSA-7C-3 runs faster at 550 RPM but has a lower maximum torque range, making the 5C-3 the better match when the application needs more torque and a slower rundown.
• Q: What does the 3/8" square drive mean?
  A: The tool has a square output drive for use with compatible 3/8" drive sockets. It is not a 1/4" hex quick-change screwdriver-bit model.
• Q: What is the advantage of push-to-start actuation?
  A: Push-to-start operation begins the fastening cycle when the operator presses the tool against the fastener. This can improve rhythm on repetitive work because the operator does not need to pull a trigger for each rundown.
• Q: Is this tool used for high-torque bolt removal?
  A: No. This is a controlled assembly screwdriver/nutrunner for small fasteners within its listed torque range. For high-breakaway removal, seized bolts, or wheel service, use an impact wrench sized for that application.
• Q: What air supply should be used with this Cleco screwdriver?
  A: Cleco rates the tool at 90 PSI / 620 kPa with a 3/8" minimum hose size. Clean, regulated, lubricated air helps the tool deliver its rated torque and improves service life.
