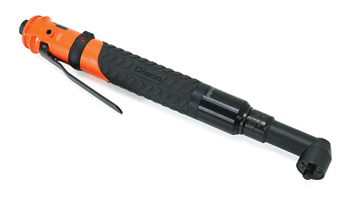

Cleco 19RAA11AH3 Pneumatic Collar Reversible Angle Nutrunner | Lever Start | 19 Series | 340 RPM | Clutch Shut-Off | 1.8 - 8.3 (ft-lbs) Torque Range

When your assembly process needs controlled torque in a confined fastening area, the Cleco 19RAA11AH3 pneumatic collar reversible angle nutrunner delivers repeatable shut-off performance in a compact right-angle format. Its 3/8" square drive fits common production sockets, while the 340 RPM free speed supports steady rundown on threaded fasteners without turning the tool into a high-speed, hard-to-control driver. The CLECOmatic clutch shut-off system stops the tool once the preset torque is reached, helping reduce over-tightening on repeat assembly work.

Part of Cleco’s 19 Series, this lever-start angle nutrunner is built for light- to medium-torque production fastening where access, repeatability, and tool control matter more than breakaway force. The 1.8 - 8.3 ft-lbs torque range suits small fasteners, brackets, covers, subassemblies, and other controlled assembly jobs, while the collar reverse lets operators change direction at the tool for removal or rework.

Type: Pneumatic Angle Nutrunner | Brand: Cleco | Model: 19RAA11AH3 | Series: 19 Series | Drive Size: 3/8" Square | Start Type: Lever Start | Reverse Type: Collar Reverse | Clutch Type: CLECOmatic Clutch Shut-Off | Free Speed: 340 RPM | Torque Range: 18 - 100 in-lbs / 2.0 - 11.3 Nm | Torque Range with Standard Spring: 30 - 100 in-lbs / 3.4 - 11.3 Nm | Overall Length: 12.3" / 312 mm | Weight: 2.1 lbs / 1.0 kg | Head Height: 1.19" / 30 mm | Side to Center: 0.50" / 13 mm | Air Inlet: 1/8" NPT | Minimum Hose I.D.: 3/16" | Air Consumption: 11 SCFM

Features:

• CLECOmatic clutch shut-off stops the tool when the preset torque is reached, supporting consistent fastening from part to part.
• Right-angle head reaches fasteners where a pistol or inline tool may not fit, including brackets, housings, and recessed assembly points.
• Collar reverse allows direction changes at the tool for backing out fasteners during adjustment, rework, or disassembly.
• Lever start gives operators controlled actuation during repetitive production fastening cycles.
• 3/8" square drive supports socket-based assembly work without requiring specialty hex bits.
• 340 RPM free speed balances controlled rundown with practical cycle time on small fasteners.
• Compact 0.50" side-to-center distance helps position the socket close to nearby walls, ribs, or fixture edges.

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator FRL)

Applications:

• Production assembly — tightening small nuts and bolts where repeatable shut-off torque is required.
• Automotive and transportation subassemblies — fastening brackets, covers, panels, and light mechanical components.
• Appliance and equipment manufacturing — controlled assembly work on frames, housings, guards, and access panels.
• Industrial MRO and rework stations — removing and reinstalling fasteners during service, inspection, and repair.
• Fixture-based assembly cells — reaching fasteners near tooling, clamps, and other access-limiting obstructions.

FAQs:

• Q: What does CLECOmatic clutch shut-off mean?
  A: CLECOmatic clutch shut-off means the tool automatically stops when the clutch reaches the preset torque. This helps improve repeatability compared with a non-shut-off tool that depends more heavily on operator feel.
• Q: Is the 19RAA11AH3 a good choice for tight spaces?
  A: Yes. The angle-head configuration and 0.50" side-to-center distance help the socket reach fasteners close to walls, fixtures, or adjacent parts.
• Q: What sockets fit this model?
  A: This model uses a 3/8" square drive, so it accepts compatible 3/8" drive sockets that match the fastener size and application requirements.
• Q: What is the difference between the full tool torque range and the standard spring range?
  A: The tool range is 18 - 100 in-lbs / 2.0 - 11.3 Nm, while the standard spring range is 30 - 100 in-lbs / 3.4 - 11.3 Nm. Use the standard spring range when setting torque with the factory spring configuration.
• Q: Is this tool for loosening seized fasteners?
  A: No. This is a controlled assembly nutrunner, not an impact wrench. It is intended for repeatable fastening and light removal or rework within its torque range.

Looking for more information about Cleco Nutrunner? Click here to view the Catalog.

Need help selecting the correct Cleco Nutrunners for your application? Please call (800) 608-5210 or email info@intlairtool.com
