Available to order

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Chicago Pneumatic

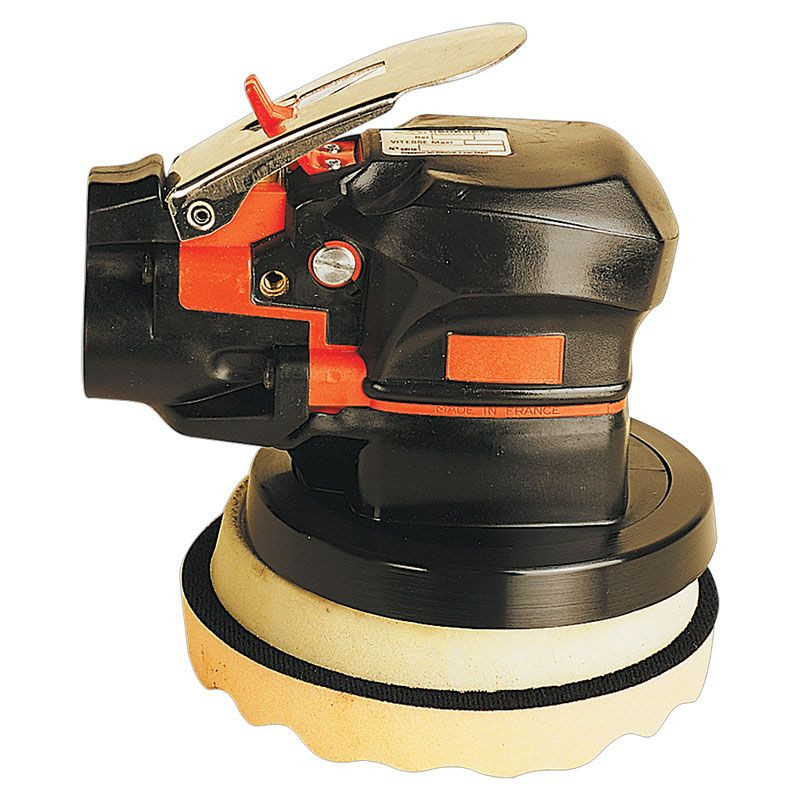

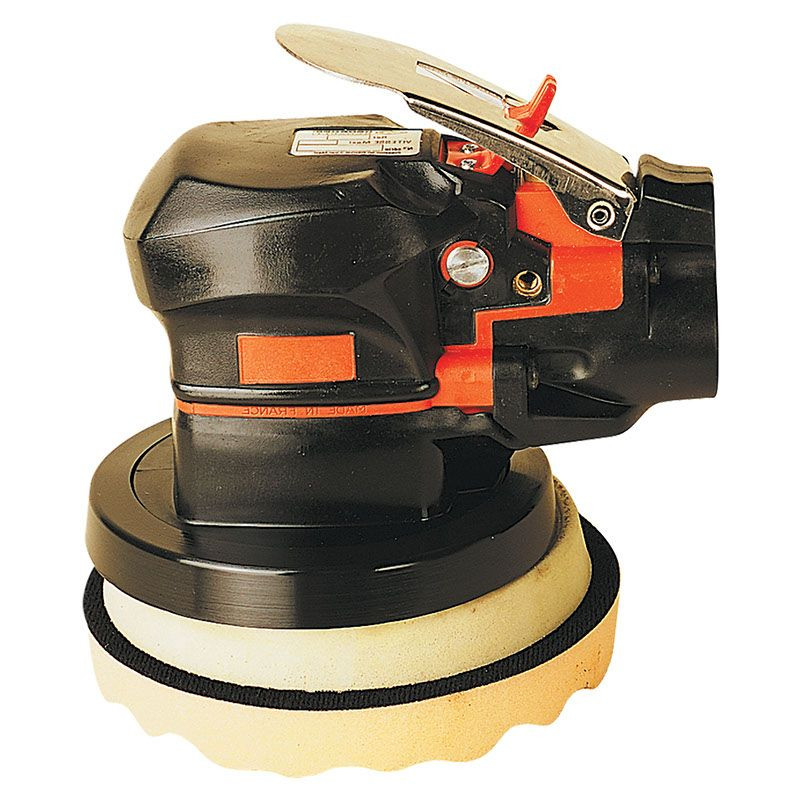

Chicago Pneumatic Random Orbital Sander | CP5518-50 | 10000 RPM | 5" PSA Pad | 3/4" Orbit

(0 review)
Status: Available to order
Product code: 6151701980-CP
UPC: 15451612719
Condition: New
Weight: 3.6900 LBS
Shipping: Calculated at Checkout
$1,516.64
$1,225.44
(You save $291.20 )
Adding to cart… The item has been added


Built for sanding, finishing, and pre-polishing work on prepared surfaces, the Chicago Pneumatic CP5518-50 pneumatic random orbital sander combines a 10,000 RPM free speed with a 0.5 hp / 375 W motor to keep the abrasive moving quickly across paint, primer, filler, and fabricated parts. Its 5" / 127 mm PSA circular pad uses pressure-sensitive adhesive discs, giving the abrasive a secure hold during surface preparation and finishing passes.

The manufacturer data for SKU 6151701980 lists a 9/16" / 14 mm orbit, which creates a more aggressive random orbital motion than smaller finishing orbits and helps speed up surface preparation before polishing or coating. This non-vacuum CP55 Series model is suited to shops that use separate dust control, booth extraction, or cleanup processes rather than tool-integrated self-vacuum or central-vacuum collection.

Type: Pneumatic Random Orbital Sander / Polisher | Model: CP5518-50 | SKU: 6151701980 | Body Style: Standard | Free Speed: 10,000 RPM | Power: 0.5 hp / 375 W | Pad Size: 5" / 127 mm | Pad Type: Circular PSA | Orbit Diameter: 9/16" / 14 mm | Vacuum Type: Non-vacuum | Spindle Thread: 5/8-24 UNF | Air Consumption @ Load: 23 CFM / 11 l/s | Air Consumption @ Free Speed: 23 CFM / 11 l/s | Air Inlet: 1/4" NPT | Min. Hose Size: 3/8" / 10 mm | Rated Working Pressure: 90 PSI / 6.3 bar | Weight: 2.65 lb / 1.2 kg | Length: 5.59" | Height: 3.98" | Sound Pressure: 80 dB(A) | Sound Power: 91 dB(A) | Vibration: <2.5 m/s² | Starting System: Safety lever

Features:

  • 0.5 hp / 375 W oil-free pneumatic motor supports sanding, finishing, and pre-polishing work while helping protect the sanding process from exhaust-related oil contamination.
  • 10,000 RPM free speed provides fast pad motion for paint preparation, surface refinement, and polishing-related finishing steps.
  • 5" / 127 mm circular PSA pad holds adhesive-backed abrasive discs securely during repeated sanding passes.
  • 9/16" / 14 mm orbit provides aggressive random orbital action for faster surface preparation compared with smaller-orbit finishing tools.
  • Standard body configuration keeps the tool compact for panel work, spot repair, and general surface preparation.
  • Non-vacuum configuration works well where separate dust collection, booth extraction, or manual cleanup processes are already in place.
  • Integrated motor silencer helps reduce tool noise in body shop, repair, and production environments.
  • Safety lever starting system helps reduce accidental activation while positioning the tool or changing abrasive discs.

Applications:

  • Autobody refinishing: Preparing repair panels, smoothing primer, and refining filler before paint, clearcoat, or polishing steps.
  • Paint and coating preparation: Sanding painted, primed, and coated surfaces where a 5" circular pad gives controlled contact.
  • Metal fabrication: Blending surface marks, preparing fabricated parts, and refining workpieces before finishing or coating.
  • Industrial maintenance and MRO: Cleaning up covers, housings, panels, and repair surfaces during equipment refurbishment.
  • Garage and workshop projects: General sanding and pre-polishing on compatible materials when paired with PSA abrasive discs and a compressor sized for the tool’s air demand.

FAQs:

  • Q: What does PSA pad mean?
    A: PSA stands for pressure-sensitive adhesive. This model uses adhesive-backed sanding discs that stick directly to the pad, rather than hook & loop discs.
  • Q: What does non-vacuum mean on the CP5518-50?
    A: Non-vacuum means the tool does not include built-in self-vacuum or central-vacuum dust extraction. Use separate dust control, shop ventilation, or cleanup procedures based on the material being sanded.
  • Q: Is the CP5518-50 mainly for sanding or polishing?
    A: Chicago Pneumatic lists this model in the orbital sanders and polishing machines family. It can be used for sanding, finishing, and pre-polishing tasks when matched with the correct PSA abrasive or finishing media.
  • Q: What air supply does this sander require?
    A: The CP5518-50 is rated for 90 PSI / 6.3 bar and uses 23 CFM / 11 l/s at load. Use a properly sized 3/8" / 10 mm air hose and confirm the compressor can maintain airflow during continuous sanding work.
  • Q: Can hook & loop abrasive discs be used on this model?
    A: No. This version is specified with a PSA pad, so use compatible 5" adhesive-backed abrasive discs unless the pad has been changed to a manufacturer-approved alternate pad.
MODEL PART NUMBER FREE SPEEDrpm POWERhp POWERW PAD CAPACITYin. PAD CAPACITYmm PAD TYPE VACUUM SPINDLE THREADin. AIR CONS.cfm AIR CONS.l/s NET WEIGHTlb NET WEIGHTkg VIBRATIONISO 28927 (m/s²) SOUND PRESS.dB(A) SOUND POWERdB(A) AIR INLETin.
ModelCP5506-R6 Part Number6151700660 Free Speed (rpm)8,000 Power (hp)0.5 Power (W)375 Pad Capacity (in.)6.7 x 3.6 Pad Capacity (mm)170 x 93 Pad TypeRectangular VacuumNon vacuum Spindle Thread (in.)5/8-24 UNF Air Cons. (cfm)23 Air Cons. (l/s)11 Net Weight (lb)3.75 Net Weight (kg)1.7 Vibration (m/s²)35.1 Sound Pressure dB(A)80 Sound Power dB(A)91 Air Inlet (in.)1/4
ModelCP5506-R6CV Part Number6151700740 Free Speed (rpm)8,000 Power (hp)0.5 Power (W)375 Pad Capacity (in.)6.7 x 3.6 Pad Capacity (mm)170 x 93 Pad TypeRectangular VacuumCentral vacuum Spindle Thread (in.)5/8-24 UNF Air Cons. (cfm)23 Air Cons. (l/s)11 Net Weight (lb)3.75 Net Weight (kg)1.7 Vibration (m/s²)35.1 Sound Pressure dB(A)78 Sound Power dB(A)89 Air Inlet (in.)1/4
ModelCP5506-R6H Part Number6151700670 Free Speed (rpm)8,000 Power (hp)0.5 Power (W)375 Pad Capacity (in.)6.7 x 3.6 Pad Capacity (mm)170 x 93 Pad TypeRectangular VacuumNon vacuum Spindle Thread (in.)5/8-24 UNF Air Cons. (cfm)23 Air Cons. (l/s)11 Net Weight (lb)3.97 Net Weight (kg)1.8 Vibration (m/s²)34.8 Sound Pressure dB(A)81 Sound Power dB(A)92 Air Inlet (in.)1/4
ModelCP5506-R6HCV Part Number6151700750 Free Speed (rpm)8,000 Power (hp)0.5 Power (W)375 Pad Capacity (in.)6.7 x 3.6 Pad Capacity (mm)170 x 93 Pad TypeRectangular VacuumCentral vacuum Spindle Thread (in.)5/8-24 UNF Air Cons. (cfm)23 Air Cons. (l/s)11 Net Weight (lb)3.97 Net Weight (kg)1.8 Vibration (m/s²)34.8 Sound Pressure dB(A)78 Sound Power dB(A)89 Air Inlet (in.)1/4
ModelCP5506-R6HSV Part Number6151700710 Free Speed (rpm)8,000 Power (hp)0.5 Power (W)375 Pad Capacity (in.)6.7 x 3.6 Pad Capacity (mm)170 x 93 Pad TypeRectangular VacuumSelf vacuum Spindle Thread (in.)5/8-24 UNF Air Cons. (cfm)23 Air Cons. (l/s)11 Net Weight (lb)3.97 Net Weight (kg)1.8 Vibration (m/s²)34.8 Sound Pressure dB(A)81 Sound Power dB(A)92 Air Inlet (in.)1/4
ModelCP5506-R6SV Part Number6151700700 Free Speed (rpm)8,000 Power (hp)0.5 Power (W)375 Pad Capacity (in.)6.7 x 3.6 Pad Capacity (mm)170 x 93 Pad TypeRectangular VacuumSelf vacuum Spindle Thread (in.)5/8-24 UNF Air Cons. (cfm)23 Air Cons. (l/s)11 Net Weight (lb)3.75 Net Weight (kg)1.7 Vibration (m/s²)35.1 Sound Pressure dB(A)82 Sound Power dB(A)93 Air Inlet (in.)1/4
ModelCP5506-R8H Part Number6151700680 Free Speed (rpm)8,000 Power (hp)0.5 Power (W)375 Pad Capacity (in.)8.5 x 4.5 Pad Capacity (mm)215 x 113 Pad TypeRectangular VacuumNon vacuum Spindle Thread (in.)5/8-24 UNF Air Cons. (cfm)23 Air Cons. (l/s)11 Net Weight (lb)4.19 Net Weight (kg)1.9 Vibration (m/s²)27.2 Sound Pressure dB(A)83 Sound Power dB(A)94 Air Inlet (in.)1/4
ModelCP5506-R8HCV Part Number6151700760 Free Speed (rpm)8,000 Power (hp)0.5 Power (W)375 Pad Capacity (in.)8.5 x 4.5 Pad Capacity (mm)215 x 113 Pad TypeRectangular VacuumCentral vacuum Spindle Thread (in.)5/8-24 UNF Air Cons. (cfm)23 Air Cons. (l/s)11 Net Weight (lb)4.19 Net Weight (kg)1.9 Vibration (m/s²)27.2 Sound Pressure dB(A)80 Sound Power dB(A)91 Air Inlet (in.)1/4
ModelCP5506-R8HSV Part Number6151700720 Free Speed (rpm)8,000 Power (hp)0.5 Power (W)375 Pad Capacity (in.)8.5 x 4.5 Pad Capacity (mm)215 x 113 Pad TypeRectangular VacuumSelf vacuum Spindle Thread (in.)5/8-24 UNF Air Cons. (cfm)23 Air Cons. (l/s)11 Net Weight (lb)4.19 Net Weight (kg)1.9 Vibration (m/s²)27.2 Sound Pressure dB(A)81 Sound Power dB(A)92 Air Inlet (in.)1/4
ModelCP5518-50 Part Number6151701980 Free Speed (rpm)10,000 Power (hp)0.5 Power (W)375 Pad Capacity (in.)5 Pad Capacity (mm)127 Pad TypeCircular VacuumNon vacuum Spindle Thread (in.)5/8-24 UNF Air Cons. (cfm)23 Air Cons. (l/s)11 Net Weight (lb)2.65 Net Weight (kg)1.2 Vibration (m/s²)<2.5 Sound Pressure dB(A)80 Sound Power dB(A)91 Air Inlet (in.)1/4
ModelCP5518-50H Part Number6151701970 Free Speed (rpm)10,000 Power (hp)0.5 Power (W)375 Pad Capacity (in.)5 Pad Capacity (mm)127 Pad TypeCircular VacuumNon vacuum Spindle Thread (in.)5/8-24 UNF Air Cons. (cfm)23 Air Cons. (l/s)11 Net Weight (lb)2.87 Net Weight (kg)1.3 Vibration (m/s²)<2.5 Sound Pressure dB(A)81 Sound Power dB(A)92 Air Inlet (in.)1/4

industrial-tools-parts-breakdown.pngLooking for more information about Chicago Pneumatic Orbital Sander? Click here to view the Catalog.

For help selecting the correct Chicago Pneumatic Sanders for your assembly application, call (800) 608-5210 or email info@intlairtool.com

Type
Orbital Sander
RPM
10000
Power (hp)
0.5
Pad Size (in.)
5
Pad Type
Circular
Vacuum Type
Non vacuum
Spindle Thread (in.)
5/8-24 UNF
Air Consumption (CFM)
23
Air Consumption (l/s)
11
Sound Power (dBA)
80
Sound Pressure (dBA)
91
Air Inlet
1/4"
One year warranty against manufacturer's defects
