Chicago Pneumatic

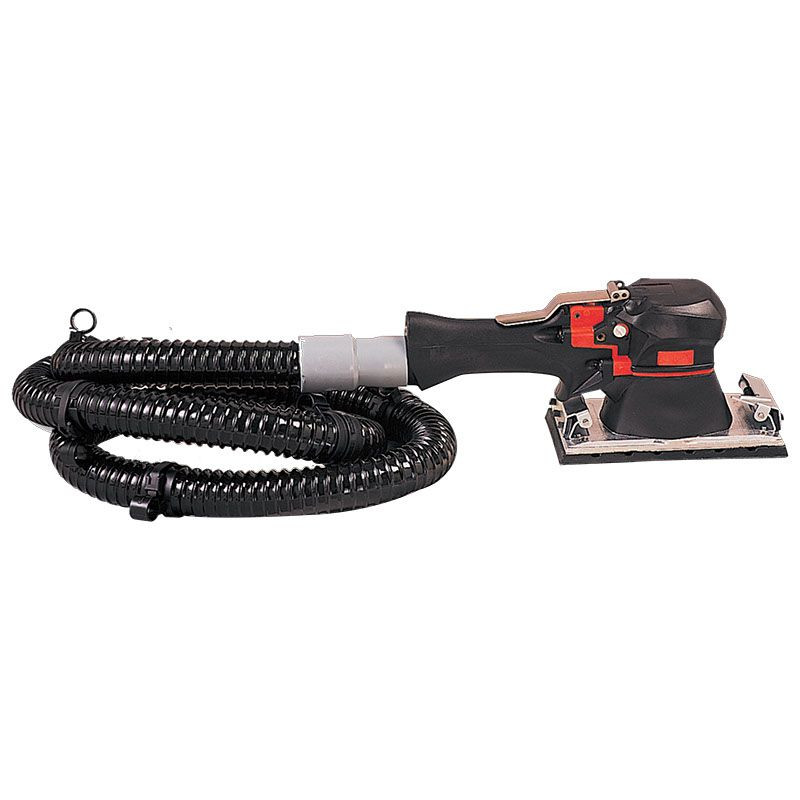

Chicago Pneumatic Orbital Sander | CP5506-R6HSV | 8000 RPM | 3.6"x6.7" Hook & Loop Pad | 3/16" Orbit

(0 review)
Status: Available to order
Product code: 6151700710-CP
UPC: 15451620141
Condition: New
Weight: 7.1800 LBS
Shipping: Calculated at Checkout
$2,031.20
$1,641.21
(You save $389.99 )
Adding to cart… The item has been added


For flat-panel sanding, paint preparation, and pre-polishing work where dust control and consistent scratch patterns matter, the Chicago Pneumatic CP5506-R6HSV pneumatic orbital sander pairs an 8,000 RPM free speed with a 0.5 hp / 375 W motor to keep abrasive sheets moving smoothly across body panels, fabricated parts, and repair surfaces. Its 6.7" x 3.6" hook & loop rectangular pad accepts compatible sheet abrasives for fast grit changes, while the 3/16" / 5 mm orbit creates a controlled sanding pattern for surface preparation before coating, finishing, or polishing.

The self-vacuum configuration helps pull sanding dust away from the work area without requiring a central vacuum line, making this CP55 Series model a practical choice for autobody refinishing, metalworking, maintenance shops, and production sanding stations. A safety lever start, integrated motor silencer, and lubrication-free motor support cleaner, more controlled operation when the tool is supplied with clean, regulated compressed air at the manufacturer's rated pressure.

Type: Pneumatic Orbital Sander | Model: CP5506-R6HSV | SKU: 6151700710 | Free Speed: 8,000 RPM | Power: 0.5 hp / 375 W | Pad Size: 6.7" x 3.6" / 170 x 93 mm | Pad Type: Rectangular Hook & Loop | Orbit Diameter: 3/16" / 5 mm | Vacuum Type: Self vacuum | Spindle Thread: 5/8-24 UNF | Air Consumption @ Load: 23 CFM / 11 l/s | Air Inlet: 1/4" NPT | Min. Hose Size: 5/16" / 8 mm | Rated Working Pressure: 90 PSI / 6.3 bar | Weight: 3.94 lb / 1.8 kg | Length: 10.57" / 266 mm | Height: 4.8" / 123 mm | Sound Pressure: 81 dB(A) | Sound Power: 92 dB(A) | Vibration: 10.6 m/s²

Features:

  • 0.5 hp / 375 W pneumatic motor provides steady sanding power for surface preparation, finishing, and pre-polishing tasks.
  • 3/16" orbit diameter helps produce a consistent finish pattern while maintaining useful material removal on coatings, fillers, and prepared surfaces.
  • 6.7" x 3.6" rectangular hook & loop pad supports quick abrasive sheet changes during multi-step sanding work.
  • Self-vacuum setup helps manage airborne dust and sanding debris when used with compatible collection components and abrasives.
  • Integrated motor silencer reduces exhaust noise compared with unsilenced air tools in shop environments.
  • Lubrication-free motor reduces routine oiling requirements and helps keep the air exhaust cleaner around refinishing work.
  • Safety lever start helps prevent accidental tool activation during handling, positioning, and abrasive changes.
  • Listed 2000 operating hours with low maintenance supports consistent use in production and repair environments.

Applications:

  • Autobody refinishing: Sanding body filler, primer, and paint-prep surfaces before finishing or blending work.
  • Metalworking and fabrication: Preparing flat metal panels, formed parts, and welded assemblies for coating or final finish steps.
  • Industrial maintenance and MRO: Removing surface marks, old coatings, and oxidation during equipment repair and refurbishment.
  • Vehicle service shops: Smoothing repair panels and refinishing surfaces where dust control and repeatable scratch patterns matter.
  • Workshop and garage use: General surface sanding on compatible materials when supplied by a compressor capable of supporting the tool's air demand.

FAQs:

  • Q: What does self-vacuum mean on the CP5506-R6HSV?
    A: Self-vacuum means the sander is configured to help draw sanding dust away from the work surface without needing a central vacuum system. Use compatible abrasives and collection components so the dust path can function properly.
  • Q: What size abrasive sheets fit this orbital sander?
    A: This model is specified for 6.7" x 3.6" / 170 x 93 mm rectangular hook & loop sanding sheets. Match the abrasive style to the pad and the vacuum setup before use.
  • Q: Is a 3/16" orbit better for finishing or fast material removal?
    A: A 3/16" / 5 mm orbit is a balanced choice for surface preparation and finishing. It removes material efficiently while leaving a finer sanding pattern than more aggressive large-orbit tools.
  • Q: What air supply does the CP5506-R6HSV require?
    A: The tool is rated for 90 PSI / 6.3 bar and uses 23 CFM / 11 l/s at load. Use at least a 5/16" / 8 mm air hose and confirm the compressor can maintain airflow during continuous sanding.
  • Q: Can this sander be used for paint prep?
    A: Yes, it is well suited for paint preparation, primer sanding, and pre-polishing work when paired with the correct abrasive grit and dust collection setup for the material being sanded.
MODEL PART NUMBER FREE SPEEDrpm POWERhp POWERW PAD CAPACITYin. PAD CAPACITYmm PAD TYPE VACUUM SPINDLE THREADin. AIR CONS.cfm AIR CONS.l/s NET WEIGHTlb NET WEIGHTkg VIBRATIONISO 28927 (m/s²) SOUND PRESS.dB(A) SOUND POWERdB(A) AIR INLETin.
ModelCP5506-R6 Part Number6151700660 Free Speed (rpm)8,000 Power (hp)0.5 Power (W)375 Pad Capacity (in.)6.7 x 3.6 Pad Capacity (mm)170 x 93 Pad TypeRectangular VacuumNon vacuum Spindle Thread (in.)5/8-24 UNF Air Cons. (cfm)23 Air Cons. (l/s)11 Net Weight (lb)3.75 Net Weight (kg)1.7 Vibration (m/s²)35.1 Sound Pressure dB(A)80 Sound Power dB(A)91 Air Inlet (in.)1/4
ModelCP5506-R6CV Part Number6151700740 Free Speed (rpm)8,000 Power (hp)0.5 Power (W)375 Pad Capacity (in.)6.7 x 3.6 Pad Capacity (mm)170 x 93 Pad TypeRectangular VacuumCentral vacuum Spindle Thread (in.)5/8-24 UNF Air Cons. (cfm)23 Air Cons. (l/s)11 Net Weight (lb)3.75 Net Weight (kg)1.7 Vibration (m/s²)35.1 Sound Pressure dB(A)78 Sound Power dB(A)89 Air Inlet (in.)1/4
ModelCP5506-R6H Part Number6151700670 Free Speed (rpm)8,000 Power (hp)0.5 Power (W)375 Pad Capacity (in.)6.7 x 3.6 Pad Capacity (mm)170 x 93 Pad TypeRectangular VacuumNon vacuum Spindle Thread (in.)5/8-24 UNF Air Cons. (cfm)23 Air Cons. (l/s)11 Net Weight (lb)3.97 Net Weight (kg)1.8 Vibration (m/s²)34.8 Sound Pressure dB(A)81 Sound Power dB(A)92 Air Inlet (in.)1/4
ModelCP5506-R6HCV Part Number6151700750 Free Speed (rpm)8,000 Power (hp)0.5 Power (W)375 Pad Capacity (in.)6.7 x 3.6 Pad Capacity (mm)170 x 93 Pad TypeRectangular VacuumCentral vacuum Spindle Thread (in.)5/8-24 UNF Air Cons. (cfm)23 Air Cons. (l/s)11 Net Weight (lb)3.97 Net Weight (kg)1.8 Vibration (m/s²)34.8 Sound Pressure dB(A)78 Sound Power dB(A)89 Air Inlet (in.)1/4
ModelCP5506-R6HSV Part Number6151700710 Free Speed (rpm)8,000 Power (hp)0.5 Power (W)375 Pad Capacity (in.)6.7 x 3.6 Pad Capacity (mm)170 x 93 Pad TypeRectangular VacuumSelf vacuum Spindle Thread (in.)5/8-24 UNF Air Cons. (cfm)23 Air Cons. (l/s)11 Net Weight (lb)3.97 Net Weight (kg)1.8 Vibration (m/s²)34.8 Sound Pressure dB(A)81 Sound Power dB(A)92 Air Inlet (in.)1/4
ModelCP5506-R6SV Part Number6151700700 Free Speed (rpm)8,000 Power (hp)0.5 Power (W)375 Pad Capacity (in.)6.7 x 3.6 Pad Capacity (mm)170 x 93 Pad TypeRectangular VacuumSelf vacuum Spindle Thread (in.)5/8-24 UNF Air Cons. (cfm)23 Air Cons. (l/s)11 Net Weight (lb)3.75 Net Weight (kg)1.7 Vibration (m/s²)35.1 Sound Pressure dB(A)82 Sound Power dB(A)93 Air Inlet (in.)1/4
ModelCP5506-R8H Part Number6151700680 Free Speed (rpm)8,000 Power (hp)0.5 Power (W)375 Pad Capacity (in.)8.5 x 4.5 Pad Capacity (mm)215 x 113 Pad TypeRectangular VacuumNon vacuum Spindle Thread (in.)5/8-24 UNF Air Cons. (cfm)23 Air Cons. (l/s)11 Net Weight (lb)4.19 Net Weight (kg)1.9 Vibration (m/s²)27.2 Sound Pressure dB(A)83 Sound Power dB(A)94 Air Inlet (in.)1/4
ModelCP5506-R8HCV Part Number6151700760 Free Speed (rpm)8,000 Power (hp)0.5 Power (W)375 Pad Capacity (in.)8.5 x 4.5 Pad Capacity (mm)215 x 113 Pad TypeRectangular VacuumCentral vacuum Spindle Thread (in.)5/8-24 UNF Air Cons. (cfm)23 Air Cons. (l/s)11 Net Weight (lb)4.19 Net Weight (kg)1.9 Vibration (m/s²)27.2 Sound Pressure dB(A)80 Sound Power dB(A)91 Air Inlet (in.)1/4
ModelCP5506-R8HSV Part Number6151700720 Free Speed (rpm)8,000 Power (hp)0.5 Power (W)375 Pad Capacity (in.)8.5 x 4.5 Pad Capacity (mm)215 x 113 Pad TypeRectangular VacuumSelf vacuum Spindle Thread (in.)5/8-24 UNF Air Cons. (cfm)23 Air Cons. (l/s)11 Net Weight (lb)4.19 Net Weight (kg)1.9 Vibration (m/s²)27.2 Sound Pressure dB(A)81 Sound Power dB(A)92 Air Inlet (in.)1/4
ModelCP5518-50 Part Number6151701980 Free Speed (rpm)10,000 Power (hp)0.5 Power (W)375 Pad Capacity (in.)5 Pad Capacity (mm)127 Pad TypeCircular VacuumNon vacuum Spindle Thread (in.)5/8-24 UNF Air Cons. (cfm)23 Air Cons. (l/s)11 Net Weight (lb)2.65 Net Weight (kg)1.2 Vibration (m/s²)<2.5 Sound Pressure dB(A)80 Sound Power dB(A)91 Air Inlet (in.)1/4
ModelCP5518-50H Part Number6151701970 Free Speed (rpm)10,000 Power (hp)0.5 Power (W)375 Pad Capacity (in.)5 Pad Capacity (mm)127 Pad TypeCircular VacuumNon vacuum Spindle Thread (in.)5/8-24 UNF Air Cons. (cfm)23 Air Cons. (l/s)11 Net Weight (lb)2.87 Net Weight (kg)1.3 Vibration (m/s²)<2.5 Sound Pressure dB(A)81 Sound Power dB(A)92 Air Inlet (in.)1/4

industrial-tools-parts-breakdown.pngLooking for more information about Chicago Pneumatic Orbital Sander? Click here to view the Catalog.

For help selecting the correct Chicago Pneumatic Sanders for your assembly application, call (800) 608-5210 or email info@intlairtool.com

Type
Orbital Sander
RPM
8000
Power (hp)
0.5
Pad Size (in.)
6.7 x 3.6
Pad Type
Rectangular
Vacuum Type
Self vacuum
Spindle Thread (in.)
5/8-24 UNF
Air Consumption (CFM)
23
Air Consumption (l/s)
11
Sound Power (dBA)
81
Sound Pressure (dBA)
92
Air Inlet
1/4"
One year warranty against manufacturer's defects
