Designed for light-vehicle tire changing in workshops and roadside assistance, the Chicago Pneumatic CP8854K Cordless Impact Wrench Kit combines a 1/2" square drive, 4,500 RPM free speed, and 774 ft-lbs maximum reverse torque in a cordless configuration. Its 18V platform provides the mobility of a cordless tool while maintaining a compact format similar in length and weight to a high-performance 1/2" pneumatic impact wrench.
The CP8854K features a 0–88.5 ft-lbs forward working torque range and a two-stage forward trigger with a snugging function to help improve fastening productivity. A forward shut-off position helps prevent overtightening, while the specified 9.3 m/s² vibration level and 87 dB(A) sound pressure provide defined operating characteristics for tire service applications. The pack configuration includes the battery and charging station, unlike the bare-tool version.
Type: Cordless Impact Wrench Kit | Model: CP8854K | Catalog Model: CP8854 Pack 18V | Part Number: 8941088540 | Drive Size: 1/2" | Drive Type: Square | Free Speed: 4,500 RPM | Working Torque (Forward): 0–88.5 ft-lbs | Max Torque (Reverse): 774 ft-lbs | Weight: 5.51 lb | Length: 7.44" | Height: 8.7" | Width: 3.03" | Vibration: 9.3 m/s² | Vibration K: 3.1 m/s² | Sound Pressure: 87 dB(A) | Sound Power: 98 dB(A) | Battery: 18V, 2.5 Ah
Features:
- 1/2" square drive accepts compatible 1/2" drive sockets for light-vehicle tire service.
- 4,500 RPM free speed provides the specified high-speed cordless impact performance.
- 0–88.5 ft-lbs forward working torque provides the catalog-specified fastening range.
- 774 ft-lbs maximum reverse torque provides the specified loosening capability.
- One forward shut-off position helps prevent overtightening during fastening.
- Two-stage forward trigger includes a snugging feature for improved fastening productivity.
- 18V, 2.5 Ah battery configuration provides cordless operation without an air hose during use.
- Compact dimensions are similar in length and weight to high-performance 1/2" pneumatic impact wrenches.
- 9.3 m/s² vibration level provides the manufacturer's specified vibration characteristic.

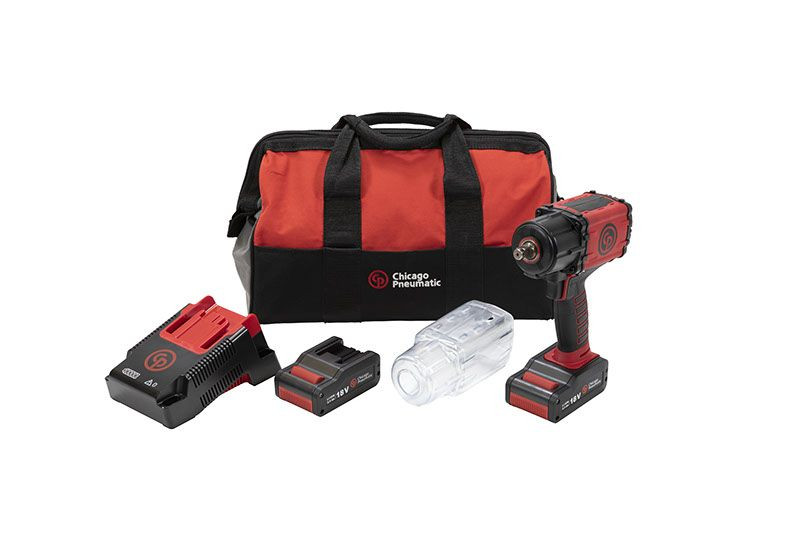

- The pack version is supplied with the battery and charging station, unlike the CP8854 bare-tool model.
Applications:
- Light-vehicle tire changing — loosening and fastening compatible wheel fasteners during tire service.
- Automotive workshops — cordless fastening and removal where mobility around the vehicle is useful.
- Roadside assistance — providing cordless impact capability without requiring an air compressor or pneumatic hose.
- Mobile vehicle service — supporting fastening and removal operations where access to compressed air is limited.
- General light-vehicle maintenance — compatible impact-wrench applications using 1/2" drive sockets.
FAQs:
- Q: What is the maximum torque of the CP8854K?
A: The catalog specifies 774 ft-lbs maximum torque in reverse. - Q: What is the forward working torque range?
A: The specified forward working torque range is 0–88.5 ft-lbs. - Q: What battery does the CP8854K use?
A: The CP8854K pack is specified with an 18V, 2.5 Ah battery configuration. - Q: Does the CP8854K include a battery and charger?
A: Yes. The catalog distinguishes the CP8854 Pack 18V from the bare-tool version, which is supplied without batteries and charging equipment. The pack is therefore the battery-and-charging-station configuration. - Q: What drive size does the CP8854K use?
A: It uses a 1/2" square drive for compatible 1/2" drive sockets. - Q: What is the free speed?
A: The CP8854K has a specified free speed of 4,500 RPM. - Q: What is the purpose of the snugging feature?
A: The two-stage forward trigger includes a snugging feature intended to improve fastening productivity and reduce the need for subsequent hand tightening. - Q: Where is the CP8854 series designed to be used?
A: Chicago Pneumatic specifies the CP8854 series for light-vehicle tire changing in workshops and roadside assistance applications.
| MODEL | PART NUMBER | DRIVE | FREE SPEED | WORKING TORQUE (FW) | MAX TORQUE (REV) | WEIGHT | LENGTH | HEIGHT | WIDTH | VIBRATION LEVEL ISO 28927 (M/S²) | SOUND PRESS. | SOUND POWER | BATTERY | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FT.LB | NM | FT.LB | NM | LB | KG | IN. | MM | IN. | MM | IN. | MM | A | K | V | AH | ||||||
| Model CP8854 BARE TOOL | Part Number8941088548 | Drive (in.)1/2 | Free Speed (RPM)4500 | Working Torque FW (ft.lb)0–88.5 | Working Torque FW (Nm)0–120 | Max Torque REV (ft.lb)774 | Max Torque REV (Nm)1050 | Weight (lb)4.63 | Weight (kg)2.1 | Length (in.)7.44 | Length (mm)189 | Height (in.)8.7 | Height (mm)221 | Width (in.)3.03 | Width (mm)77 | Vibration Level A (m/s²)9.3 | Vibration Level K (m/s²)3.1 | Sound Pressure dB(A)87 | Sound Power dB(A)98 | Battery (V)18 | Battery (Ah)2.5 |
| Model CP8854K KIT | Part Number8941088540 | Drive (in.)1/2 | Free Speed (RPM)4500 | Working Torque FW (ft.lb)0–88.5 | Working Torque FW (Nm)0–120 | Max Torque REV (ft.lb)774 | Max Torque REV (Nm)1050 | Weight (lb)5.51 | Weight (kg)2.5 | Length (in.)7.44 | Length (mm)189 | Height (in.)8.7 | Height (mm)221 | Width (in.)3.03 | Width (mm)77 | Vibration Level A (m/s²)9.3 | Vibration Level K (m/s²)3.1 | Sound Pressure dB(A)87 | Sound Power dB(A)98 | Battery (V)18 | Battery (Ah)2.5 |
| Model CP8854-2 BARE TOOL | Part Number8941088549 | Drive (in.)1/2 | Free Speed (RPM)4500 | Working Torque FW (ft.lb)0–88.5 | Working Torque FW (Nm)0–120 | Max Torque REV (ft.lb)774 | Max Torque REV (Nm)1050 | Weight (lb)4.78 | Weight (kg)2.17 | Length (in.)9.41 | Length (mm)239 | Height (in.)8.7 | Height (mm)221 | Width (in.)3.03 | Width (mm)77 | Vibration Level A (m/s²)9.3 | Vibration Level K (m/s²)3.1 | Sound Pressure dB(A)87 | Sound Power dB(A)98 | Battery (V)18 | Battery (Ah)2.5 |
| Model CP8854-2K KIT | Part Number8941088542 | Drive (in.)1/2 | Free Speed (RPM)4500 | Working Torque FW (ft.lb)0–88.5 | Working Torque FW (Nm)0–120 | Max Torque REV (ft.lb)774 | Max Torque REV (Nm)1050 | Weight (lb)5.73 | Weight (kg)2.6 | Length (in.)9.41 | Length (mm)239 | Height (in.)8.7 | Height (mm)221 | Width (in.)3.03 | Width (mm)77 | Vibration Level A (m/s²)9.3 | Vibration Level K (m/s²)3.1 | Sound Pressure dB(A)87 | Sound Power dB(A)98 | Battery (V)18 | Battery (Ah)2.5 |
Looking for more information about Chicago Pneumatic For help selecting the correct Chicago Pneumatic Impact Wrench Kits for your assembly application, call (800) 608-5210 or email info@intlairtool.com
- Type
- Impact Wrench Kit
- Drive Size (in.)
- 1/2
- RPM
- 4500
- Max Torque Reverse (ft-lbs)
- 774
- Battery (V)
- 2.5
- Battery (Ah)
- 18 V
