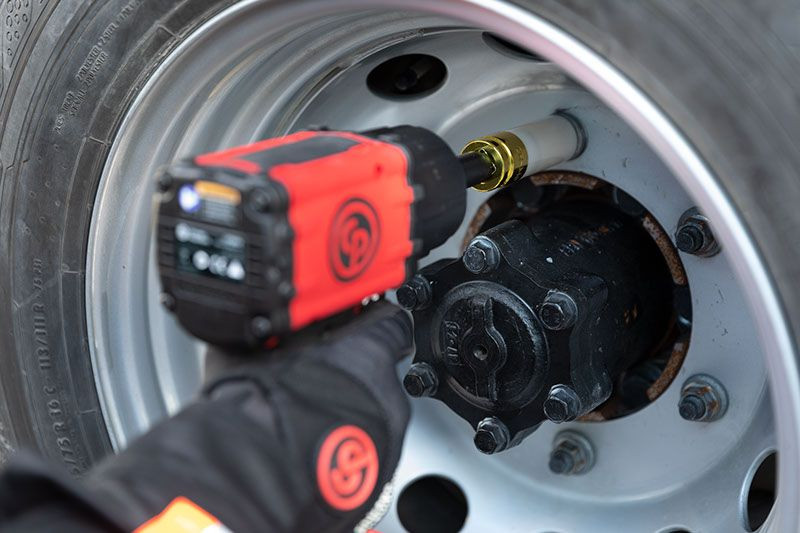

Designed for light-vehicle tire changing in workshops and roadside assistance, the Chicago Pneumatic CP8854-2 Cordless Impact Wrench combines a 1/2" square drive, 4,500 RPM free speed, and 774 ft-lbs maximum reverse torque in a cordless bare-tool configuration. Its 2" extended anvil provides additional reach for compatible sockets, while the two-stage forward trigger includes a snugging feature and a forward shut-off position to help improve fastening productivity and prevent overtightening.
The CP8854-2 is supplied as a bare tool, so the battery and charging station are not included. It uses the Chicago Pneumatic 18V battery platform and delivers a specified 0–88.5 ft-lbs forward working torque. The extended configuration measures 9.41" in length and weighs 4.78 lb without the battery, while its 9.3 m/s² vibration level and 87 dB(A) sound pressure provide defined operating characteristics for mobile vehicle service.
Type: Cordless Impact Wrench | Model: CP8854-2 | Part Number: 8941088549 | Configuration: Bare Tool | Drive Size: 1/2" | Drive Type: Square | Anvil: 2" Extended | Free Speed: 4,500 RPM | Working Torque (Forward): 0–88.5 ft-lbs | Max Torque (Reverse): 774 ft-lbs | Weight: 4.78 lb | Length: 9.41" | Height: 8.7" | Width: 3.03" | Vibration: 9.3 m/s² | Vibration K: 3.1 m/s² | Sound Pressure: 87 dB(A) | Sound Power: 98 dB(A) | Battery: 18V, 2.5 Ah
Features:
- 1/2" square drive accepts compatible 1/2" drive sockets for light-vehicle service.
- 2" extended anvil provides additional reach for compatible socket applications.
- 4,500 RPM free speed provides the specified operating speed for fastener rundown.
- 0–88.5 ft-lbs forward working torque provides the manufacturer's specified forward torque range.
- 774 ft-lbs maximum reverse torque provides the specified reverse torque capability.
- Two-stage forward trigger includes a snugging feature to improve fastening productivity.
- One forward shut-off position helps prevent overtightening during fastening.
- 18V cordless operation eliminates the need for an air hose during use.
- The compact cordless design is specified as similar in length and weight to high-performance 1/2" pneumatic impact wrenches.
- The bare-tool configuration is supplied without batteries and charging station.
Applications:
- Light-vehicle tire changing — loosening and fastening compatible wheel fasteners during tire service.
- Automotive workshops — cordless fastening and removal where movement around the vehicle is important.
- Roadside assistance — providing impact-wrench capability without requiring a compressed-air supply.
- Mobile vehicle service — servicing compatible fasteners away from fixed shop equipment.
- Wheel-service applications — using the extended anvil configuration where additional socket reach is useful.
FAQs:
- Q: What is the maximum torque of the CP8854-2?
A: The manufacturer specifies 774 ft-lbs maximum torque in reverse. - Q: What is the forward working torque range?
A: The specified forward working torque range is 0–88.5 ft-lbs. - Q: What is the difference between CP8854-2 and CP8854?
A: CP8854-2 is the extended-anvil version, using a 2" extended anvil and a 9.41" overall length. The standard CP8854 has a 7.44" overall length. - Q: Is the CP8854-2 a complete kit?
A: No. CP8854-2 is the bare-tool configuration. The battery and charging station are not included. - Q: What battery does the CP8854-2 use?
A: The CP8854-2 uses the Chicago Pneumatic 18V battery system. The catalog table specifies an 18V, 2.5 Ah battery configuration. - Q: What is the free speed?
A: The CP8854-2 has a specified free speed of 4,500 RPM. - Q: Does the CP8854-2 have a shut-off function?
A: Yes. The forward control has one shut-off position intended to help prevent overtightening. - Q: What is the purpose of the snugging feature?
A: The two-stage forward trigger includes a snugging feature designed to improve productivity by helping reduce the need for hand tightening. - Q: What applications is the CP8854 series designed for?
A: Chicago Pneumatic specifies the CP8854 series for light-vehicle tire changing in workshops and roadside assistance applications.
| MODEL | PART NUMBER | DRIVE | FREE SPEED | WORKING TORQUE (FW) | MAX TORQUE (REV) | WEIGHT | LENGTH | HEIGHT | WIDTH | VIBRATION LEVEL ISO 28927 (M/S²) | SOUND PRESS. | SOUND POWER | BATTERY | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FT.LB | NM | FT.LB | NM | LB | KG | IN. | MM | IN. | MM | IN. | MM | A | K | V | AH | ||||||
| Model CP8854 BARE TOOL | Part Number8941088548 | Drive (in.)1/2 | Free Speed (RPM)4500 | Working Torque FW (ft.lb)0–88.5 | Working Torque FW (Nm)0–120 | Max Torque REV (ft.lb)774 | Max Torque REV (Nm)1050 | Weight (lb)4.63 | Weight (kg)2.1 | Length (in.)7.44 | Length (mm)189 | Height (in.)8.7 | Height (mm)221 | Width (in.)3.03 | Width (mm)77 | Vibration Level A (m/s²)9.3 | Vibration Level K (m/s²)3.1 | Sound Pressure dB(A)87 | Sound Power dB(A)98 | Battery (V)18 | Battery (Ah)2.5 |
| Model CP8854K KIT | Part Number8941088540 | Drive (in.)1/2 | Free Speed (RPM)4500 | Working Torque FW (ft.lb)0–88.5 | Working Torque FW (Nm)0–120 | Max Torque REV (ft.lb)774 | Max Torque REV (Nm)1050 | Weight (lb)5.51 | Weight (kg)2.5 | Length (in.)7.44 | Length (mm)189 | Height (in.)8.7 | Height (mm)221 | Width (in.)3.03 | Width (mm)77 | Vibration Level A (m/s²)9.3 | Vibration Level K (m/s²)3.1 | Sound Pressure dB(A)87 | Sound Power dB(A)98 | Battery (V)18 | Battery (Ah)2.5 |
| Model CP8854-2 BARE TOOL | Part Number8941088549 | Drive (in.)1/2 | Free Speed (RPM)4500 | Working Torque FW (ft.lb)0–88.5 | Working Torque FW (Nm)0–120 | Max Torque REV (ft.lb)774 | Max Torque REV (Nm)1050 | Weight (lb)4.78 | Weight (kg)2.17 | Length (in.)9.41 | Length (mm)239 | Height (in.)8.7 | Height (mm)221 | Width (in.)3.03 | Width (mm)77 | Vibration Level A (m/s²)9.3 | Vibration Level K (m/s²)3.1 | Sound Pressure dB(A)87 | Sound Power dB(A)98 | Battery (V)18 | Battery (Ah)2.5 |
| Model CP8854-2K KIT | Part Number8941088542 | Drive (in.)1/2 | Free Speed (RPM)4500 | Working Torque FW (ft.lb)0–88.5 | Working Torque FW (Nm)0–120 | Max Torque REV (ft.lb)774 | Max Torque REV (Nm)1050 | Weight (lb)5.73 | Weight (kg)2.6 | Length (in.)9.41 | Length (mm)239 | Height (in.)8.7 | Height (mm)221 | Width (in.)3.03 | Width (mm)77 | Vibration Level A (m/s²)9.3 | Vibration Level K (m/s²)3.1 | Sound Pressure dB(A)87 | Sound Power dB(A)98 | Battery (V)18 | Battery (Ah)2.5 |
Looking for more information about Chicago Pneumatic For help selecting the correct Chicago Pneumatic Cordless Impact Wrenches for your assembly application, call (800) 608-5210 or email info@intlairtool.com
- Type
- Impact Wrench
- Drive Size (in.)
- 1/2
- RPM
- 4500
- Max Torque Reverse (ft-lbs)
- 774
- Battery (V)
- 2.5
- Battery (Ah)
- 18 V
