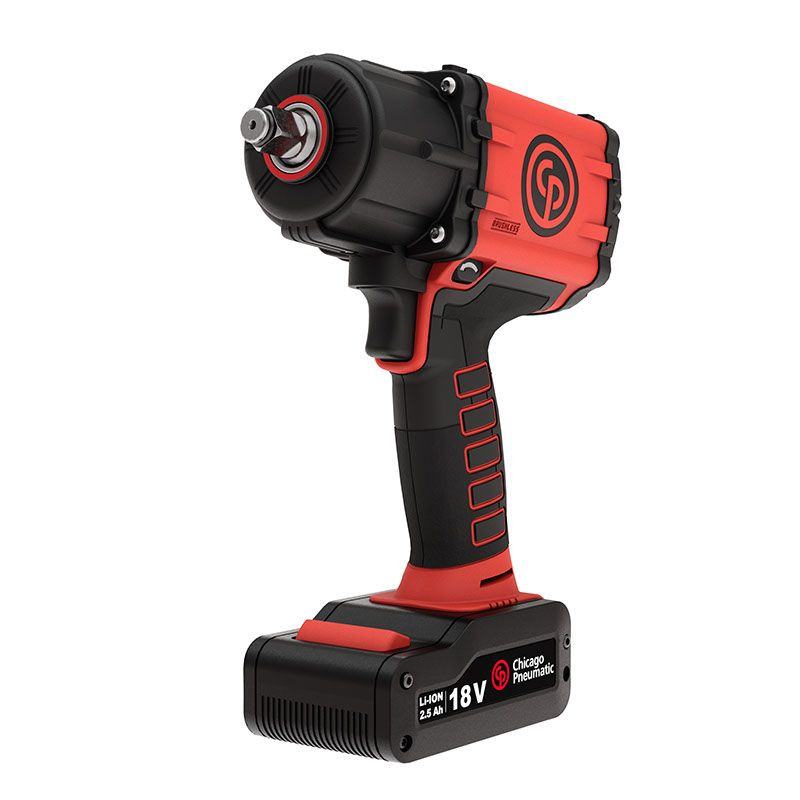

Designed for light-vehicle tire changing in workshops and roadside assistance, the Chicago Pneumatic CP8854 Cordless Impact Wrench combines a 1/2" square drive, 4,500 RPM free speed, and 774 ft-lbs maximum reverse torque in a portable cordless configuration. Its 0–88.5 ft-lbs forward working torque, twin hammer impact mechanism, and brushless motor provide the specified fastening and removal performance without requiring a pneumatic hose.
The CP8854 is the bare-tool configuration and does not include batteries or a charging station. It accepts the manufacturer's 18V 2.5 Ah lithium-ion battery system, which is available separately. A built-in forward shut-off position helps prevent overtightening, while the two-stage forward trigger provides a snugging function intended to reduce the need for hand tightening. The compact 7.44" length and 4.63 lb weight without battery provide the specified cordless format for mobile vehicle service.
Type: Cordless Impact Wrench | Model: CP8854 | Part Number: 8941088548 | Configuration: Bare Tool | Drive Size: 1/2" | Drive Type: Square | Socket Retention: Friction Ring | Impact Mechanism: Twin Hammer | Free Speed: 4,500 RPM | Blows Per Minute: 1,200 BPM | Working Torque (Forward): 0–88.5 ft-lbs | Max Torque (Reverse): 774 ft-lbs | Breakaway Torque: 1,000 ft-lbs | Weight Without Battery: 4.63 lb | Length: 7.44" | Height: 8.7" | Width: 3.03" | Battery: 18V, 2.5 Ah Lithium-Ion, Sold Separately | Vibration: 9.3 m/s² | Vibration K: 3.1 m/s² | Sound Pressure: 87 dB(A) | Sound Power: 98 dB(A)
Features:
- 1/2" square drive accepts compatible 1/2" drive impact sockets for light-vehicle service.
- 4,500 RPM free speed provides the specified operating speed for rapid fastener rundown.
- 0–88.5 ft-lbs forward working torque provides the manufacturer's specified forward torque range.
- 774 ft-lbs maximum reverse torque provides the specified loosening capability.
- 1,000 ft-lbs breakaway torque provides the specified breakaway capacity for resistant fasteners.
- Twin hammer impact mechanism delivers repeated impact action during fastening and removal.
- Brushless electric motor provides the specified motor configuration.
- Forward shut-off position helps prevent overtightening during fastening operations.
- Two-stage forward trigger includes a snugging function intended to reduce the need for hand tightening.
- Friction-ring socket retention helps secure compatible sockets on the square drive.
- Composite body with aluminum clutch housing provides the manufacturer's specified construction.
- Bare-tool configuration allows users who already own compatible CP18V batteries and chargers to purchase the tool without duplicating the battery system.
Applications:
- Light-vehicle tire changing — loosening and installing compatible wheel fasteners during tire service.
- Automotive workshops — cordless fastening and removal where mobility around the vehicle is useful.
- Roadside assistance — performing compatible wheel-service work without an air hose.
- Mobile vehicle service — fastening and loosening compatible 1/2" drive fasteners away from fixed shop equipment.
- General vehicle maintenance — impact-wrench applications where a cordless tool is preferred.
FAQs:
- Q: Is the CP8854 a complete kit?
A: No. CP8854 is the bare-tool version. Batteries and the charging station are not included. - Q: What battery does the CP8854 use?
A: The CP8854 uses the Chicago Pneumatic 18V 2.5 Ah lithium-ion battery system. The compatible battery is sold separately with the bare-tool configuration. - Q: What is the maximum torque of the CP8854?
A: The specified maximum reverse torque is 774 ft-lbs. The manufacturer separately lists 1,000 ft-lbs of breakaway torque. - Q: What is the forward working torque?
A: The specified forward working torque range is 0–88.5 ft-lbs. - Q: What is the free speed?
A: The CP8854 has a free speed of 4,500 RPM and an impact rate of 1,200 BPM. - Q: What type of impact mechanism does the CP8854 use?
A: The CP8854 uses a twin hammer impact mechanism. - Q: What does the snugging feature do?
A: The two-stage forward trigger includes a snugging function intended to reduce the need for hand tightening during fastening. - Q: Does the CP8854 have a shut-off function?
A: Yes. The tool has one forward shut-off position intended to help prevent overtightening. - Q: What is the weight of the bare tool?
A: The specified weight without the battery is 4.63 lb. The battery-equipped weight is higher and depends on the battery installed.
| MODEL | PART NUMBER | DRIVE | FREE SPEED | WORKING TORQUE (FW) | MAX TORQUE (REV) | WEIGHT | LENGTH | HEIGHT | WIDTH | VIBRATION LEVEL ISO 28927 (M/S²) | SOUND PRESS. | SOUND POWER | BATTERY | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FT.LB | NM | FT.LB | NM | LB | KG | IN. | MM | IN. | MM | IN. | MM | A | K | V | AH | ||||||
| Model CP8854 BARE TOOL | Part Number8941088548 | Drive (in.)1/2 | Free Speed (RPM)4500 | Working Torque FW (ft.lb)0–88.5 | Working Torque FW (Nm)0–120 | Max Torque REV (ft.lb)774 | Max Torque REV (Nm)1050 | Weight (lb)4.63 | Weight (kg)2.1 | Length (in.)7.44 | Length (mm)189 | Height (in.)8.7 | Height (mm)221 | Width (in.)3.03 | Width (mm)77 | Vibration Level A (m/s²)9.3 | Vibration Level K (m/s²)3.1 | Sound Pressure dB(A)87 | Sound Power dB(A)98 | Battery (V)18 | Battery (Ah)2.5 |
| Model CP8854K KIT | Part Number8941088540 | Drive (in.)1/2 | Free Speed (RPM)4500 | Working Torque FW (ft.lb)0–88.5 | Working Torque FW (Nm)0–120 | Max Torque REV (ft.lb)774 | Max Torque REV (Nm)1050 | Weight (lb)5.51 | Weight (kg)2.5 | Length (in.)7.44 | Length (mm)189 | Height (in.)8.7 | Height (mm)221 | Width (in.)3.03 | Width (mm)77 | Vibration Level A (m/s²)9.3 | Vibration Level K (m/s²)3.1 | Sound Pressure dB(A)87 | Sound Power dB(A)98 | Battery (V)18 | Battery (Ah)2.5 |
| Model CP8854-2 BARE TOOL | Part Number8941088549 | Drive (in.)1/2 | Free Speed (RPM)4500 | Working Torque FW (ft.lb)0–88.5 | Working Torque FW (Nm)0–120 | Max Torque REV (ft.lb)774 | Max Torque REV (Nm)1050 | Weight (lb)4.78 | Weight (kg)2.17 | Length (in.)9.41 | Length (mm)239 | Height (in.)8.7 | Height (mm)221 | Width (in.)3.03 | Width (mm)77 | Vibration Level A (m/s²)9.3 | Vibration Level K (m/s²)3.1 | Sound Pressure dB(A)87 | Sound Power dB(A)98 | Battery (V)18 | Battery (Ah)2.5 |
| Model CP8854-2K KIT | Part Number8941088542 | Drive (in.)1/2 | Free Speed (RPM)4500 | Working Torque FW (ft.lb)0–88.5 | Working Torque FW (Nm)0–120 | Max Torque REV (ft.lb)774 | Max Torque REV (Nm)1050 | Weight (lb)5.73 | Weight (kg)2.6 | Length (in.)9.41 | Length (mm)239 | Height (in.)8.7 | Height (mm)221 | Width (in.)3.03 | Width (mm)77 | Vibration Level A (m/s²)9.3 | Vibration Level K (m/s²)3.1 | Sound Pressure dB(A)87 | Sound Power dB(A)98 | Battery (V)18 | Battery (Ah)2.5 |
Looking for more information about Chicago Pneumatic For help selecting the correct Chicago Pneumatic Cordless Impact Wrenches for your assembly application, call (800) 608-5210 or email info@intlairtool.com
- Type
- Impact Wrench
- Drive Size (in.)
- 1/2
- RPM
- 4500
- Max Torque Reverse (ft-lbs)
- 774
- Battery (V)
- 2.4
- Battery (Ah)
- 18 V
