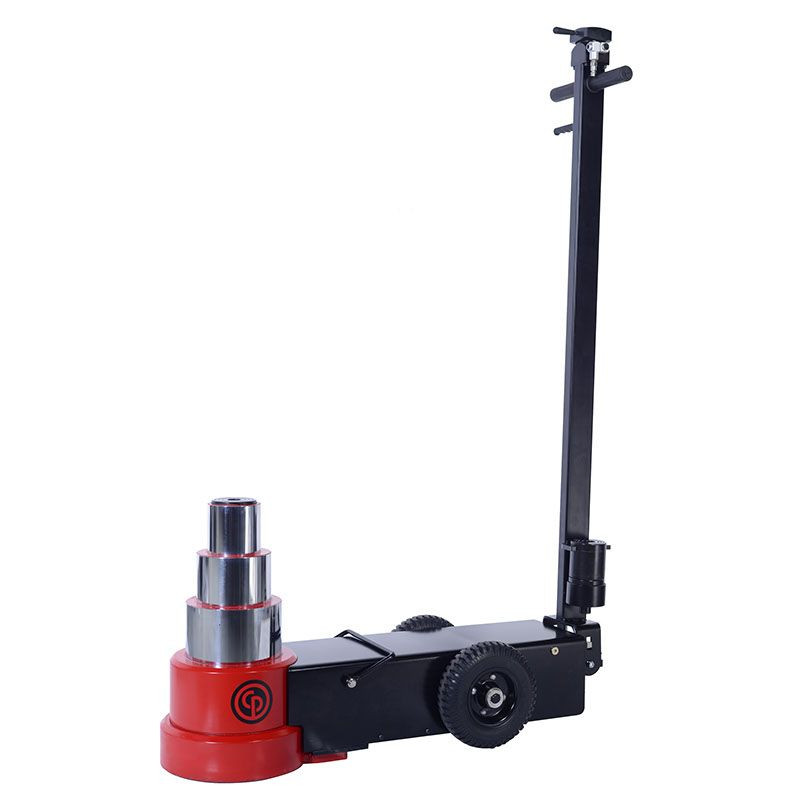

Chicago Pneumatic Air Hydraulic Jack | CP85100 | 100 Tons Capacity

Built for heavy-vehicle tire changing and maintenance, the Chicago Pneumatic CP85100 Air Hydraulic Jack provides a 100-ton lifting capacity with a 220,000 lb maximum lift capacity. Its air-powered piston provides fast lifting action on high-axle vehicles, while the low-profile construction allows access to lifting points beneath low-chassis trucks and buses. The hard chromium-plated piston provides the specified durability and resistance to corrosion for demanding lifting applications.

The CP85100 has an 8.5" minimum height and reaches 33.7" maximum height with extension. Chicago Pneumatic specifies 45 mm and 75 mm extensions for the CP85 series, while the long handlebar locks at 45°, 90°, and 180° for positioning and maneuvering. At 232 lb, the CP85100 provides the highest capacity listed in this CP85 air hydraulic jack range.

Type: Air Hydraulic Jack | Series: CP85 | Model: CP85100 | Part Number: 8941085100 | Capacity: 100 Tons | Maximum Lift Capacity: 220,000 lb | Minimum Height: 8.5" | Maximum Height with Extension: 33.7" | Weight: 232 lb | Extension Heights: 45 mm, 75 mm | Air Hose Internal Diameter: 3/8" (10 mm) | Air Supply Reference: 90 PSI (6.3 bar)

Features:

• 100-ton capacity provides the specified lifting capability for high-capacity heavy-vehicle service applications.
• 220,000 lb maximum lift capacity provides the catalog-specified maximum lifting load.
• Air-powered piston provides fast lifting action on high-axle vehicles.
• Hard chromium-plated piston provides durability and resistance to corrosion.
• Low-profile construction allows access to lifting points beneath low-chassis trucks and buses.
• Long handlebar provides access and control when the jack is fully positioned beneath a vehicle.
• Handlebar locks in three positions: 45°, 90°, and 180° for easier maneuvering.
• 45 mm and 75 mm extensions provide additional lifting height and are listed as CP85100 accessories.
• 3/8" (10 mm) internal hose diameter is specified for the CP85 series at 90 PSI (6.3 bar).

Applications:

• Heavy truck maintenance — lifting compatible high-capacity vehicles when the load is within the 100-ton rating.
• Bus and commercial vehicle service — supporting compatible lifting operations during maintenance and repair.
• Heavy-vehicle tire service — providing lifting capacity for tire changing and related service work.
• Low-chassis vehicle maintenance — using the low-profile construction to access lifting points beneath compatible vehicles.
• Fleet and commercial vehicle workshops — high-capacity lifting applications requiring a 100-ton air hydraulic jack.

FAQs:

• Q: What is the capacity of the CP85100?
  A: The CP85100 is rated at 100 tons, with a catalog-specified maximum lift capacity of 220,000 lb.
• Q: What is the minimum height of the CP85100?
  A: The specified minimum height is 8.5 inches (215 mm).
• Q: What is the maximum height of the CP85100?
  A: The catalog lists 33.7 inches (860 mm) for the D+E dimension, representing the maximum height with extension in the specification table.
• Q: What extension sizes are available?
  A: The catalog lists 45 mm and 75 mm extensions for both CP85080 and CP85100.
• Q: How does the CP85100 handlebar adjust?
  A: The handlebar locks at 45°, 90°, and 180° to assist with positioning and maneuvering.
• Q: How much does the CP85100 weigh?
  A: The catalog specifies a weight of 232 lb (105 kg).
• Q: What hose size is specified?
  A: The catalog specifies a 3/8" (10 mm) internal hose diameter at 90 PSI (6.3 bar) for all models in the range.
• Q: What extensions are available for the CP85100?
  A: Chicago Pneumatic lists 45 mm and 75 mm extensions for the CP85080 and CP85100. These are accessories and should not be assumed to be included with the jack.
