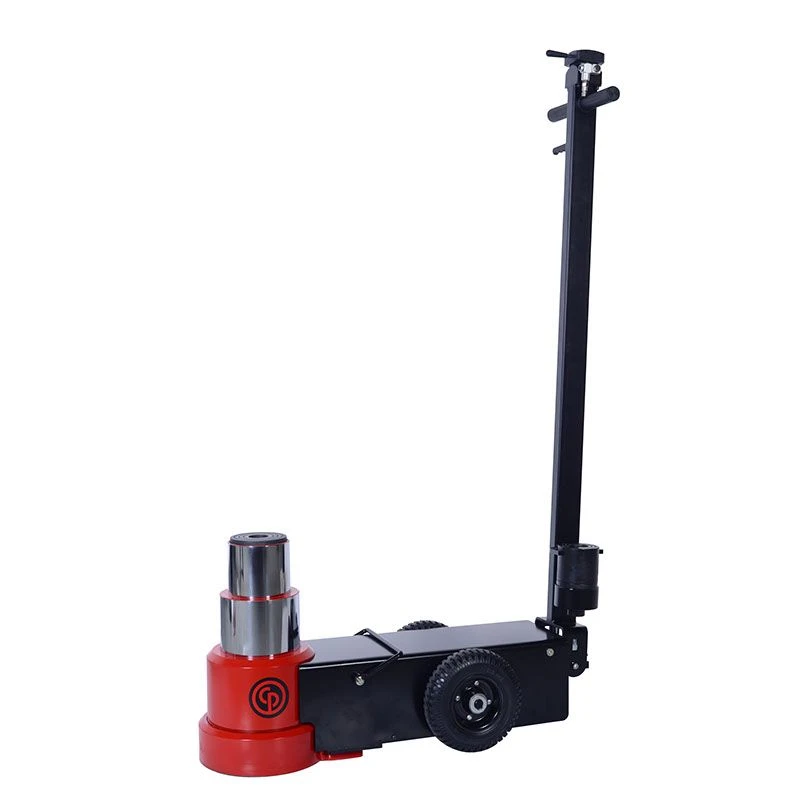

Chicago Pneumatic Air Hydraulic Jack | CP85080 | 80 Tons Capacity

Built for heavy-vehicle tire changing and maintenance, the Chicago Pneumatic CP85080 Air Hydraulic Jack provides an 80-ton lifting capacity with a 176,000 lb maximum lift capacity. Its air-powered piston is designed for fast lifting on high-axle vehicles, while the low-profile construction provides access to lifting points beneath low-chassis trucks and buses. The hard chromium-plated piston is specified for durability and corrosion resistance.

The CP85080 features a 9.1" minimum height and reaches a 22.16" maximum height with extension. Two extensions, measuring 45 mm and 75 mm, provide additional lifting height and can be stored on the handle for transport. The long handlebar locks in 45°, 90°, and 180° positions for maneuvering, while large soft rubber wheels support movement inside or outside the workshop.

Type: Air Hydraulic Jack | Series: CP85 | Model: CP85080 | Part Number: 8941085080 | Capacity: 80 Tons | Maximum Lift Capacity: 176,000 lb | Minimum Height: 9.1" | Maximum Height with Extension: 22.16" | Weight: 227 lb | Extension Heights: 45 mm, 75 mm | Main Material: Steel | Wheel Type: Rubber | Minimum Working Pressure: 9 bar (130.5 PSI) | Maximum Working Pressure: 12 bar (174 PSI)

Features:

• 80-ton lifting capacity provides the specified load rating for heavy-vehicle service applications.
• 176,000 lb maximum lift capacity provides the catalog-specified maximum lifting capability.
• Air-powered piston provides fast lifting action on high-axle vehicles.
• Hard chromium-plated piston provides the specified durability and resistance to corrosion.
• Low-profile construction allows access to lifting points beneath low-chassis trucks and buses.
• Two extensions provide additional lifting height and can be stored on the handle for transport.
• 45 mm and 75 mm extension heights provide the specified height-adjustment options.
• Long 1-piece handlebar provides access to the controls when the jack is positioned beneath a vehicle.
• Handlebar locks at 45°, 90°, and 180° for easier maneuvering and positioning.
• Convenient joystick provides lifting and control functions from the handle.
• Cylinder-mounted carrying handle supports transport of the jack.
• Large, soft rubber wheels allow movement inside or outside the workshop.
• Steel construction provides the specified main material type.

Applications:

• Heavy truck maintenance — lifting compatible heavy vehicles when the load is within the 80-ton rated capacity.
• Bus service — supporting compatible maintenance operations on vehicles requiring high lifting capacity.
• Heavy-vehicle tire service — lifting vehicles for tire changing and related maintenance work.
• Low-chassis vehicle service — using the low-profile configuration to access lifting points beneath low-chassis trucks and buses.
• Fleet and commercial vehicle workshops — high-capacity lifting applications requiring an 80-ton air hydraulic jack.

FAQs:

• Q: What is the lifting capacity of the CP85080?
  A: The CP85080 has an 80-ton lifting capacity and a catalog-specified maximum lift capacity of 176,000 lb.
• Q: What is the minimum height of the CP85080?
  A: The specified minimum height is 9.1 inches (230 mm).
• Q: What is the maximum height of the CP85080?
  A: The maximum height with extension is 22.16 inches (563 mm).
• Q: What extension heights are available?
  A: The CP85080 uses 45 mm and 75 mm extensions for additional lifting height.
• Q: How does the CP85080 handlebar adjust?
  A: The handlebar locks in three positions: 45°, 90°, and 180°, allowing easier positioning and maneuvering.
• Q: How much does the CP85080 weigh?
  A: The catalog specifies a net weight of 227 lb (103 kg).
• Q: What type of wheels does the CP85080 use?
  A: The manufacturer specifies large, soft rubber wheels.
• Q: What is the working air pressure range?
  A: The specified working pressure range is 9 to 12 bar, approximately 130.5 to 174 PSI.
