Ingersoll Rand W7152P-K22 Pin Anvil Cordless Impact Wrench Tool Kit | 1/2" Square Drive | 1000 (ft-lbs) Max Torque

Removing seized fasteners from equipment assemblies and servicing heavily loaded bolted connections often requires an impact wrench that combines strong loosening capability with secure socket retention. The Ingersoll Rand W7152P-K22 Pin Anvil Cordless Impact Wrench Tool Kit delivers 1,000 ft-lbs (1,360 Nm) of maximum torque and 1,500 ft-lbs (2,033 Nm) of nut-busting torque through a 1/2-inch square drive with pin retainer. Nut-busting torque refers to the tool's maximum rated capability for loosening resistant fasteners. Unlike the socket-retaining-ring version, the W7152P uses a spring-loaded retaining pin to engage a compatible impact socket's locking hole. This drive configuration is useful for technicians who prefer positive socket retention during vehicle repair, heavy equipment maintenance, and industrial fastening work.

Powered by Ingersoll Rand's 20V IQV20 battery platform, the W7152P features a brushless motor, tuned impact mechanism, and 0–1,900 RPM no-load speed with up to 2,450 impacts per minute. Its four-mode IQV Power Control System includes Full Power, Half Power, Wrench Tight, and Hand Tight settings for different stages of fastening. The W7152P-K22 kit includes two BL2022 5.0 Ah lithium-ion batteries, allowing one battery to be available while the other is recharged, along with a charger and carrying bag. An 8.1-inch (207 mm) tool length, 7.6 lb (3.4 kg) weight with battery, 360-degree LED work light, and reinforced housing make this cordless wrench suitable for demanding workshop and field-service environments.

Type: Cordless High-Torque Impact Wrench Kit | Model: W7152P-K22 | Tool Model: W7152P | Series: IQV20 Series | Voltage: 20V DC | Configuration: Pistol Grip | Motor: Brushless | Drive Size: 1/2" | Drive Type: Square Pin Retainer (Pin Detent) | Maximum Torque: 1,000 ft-lbs (1,360 Nm) | Nut-Busting Torque: 1,500 ft-lbs (2,033 Nm) | No-Load Speed: 0–1,900 RPM | Impacts Per Minute: 2,450 BPM | Power Control: 4 Modes | Battery Model: BL2022 | Battery Capacity: 5.0 Ah | Battery Quantity: 2 | Tool Length: 8.1" (207 mm) | Weight with Battery: 7.6 lbs (3.4 kg)

Features:

• Pin-retainer square anvil uses a retaining pin to engage compatible impact sockets, providing positive socket retention during fastening and removal work.
• Brushless motor delivers high power output without the brush wear associated with conventional brushed motors.
• Tuned impact mechanism supplies substantial nut-busting torque for loosening resistant fasteners on vehicles and industrial equipment.
• Four-mode IQV Power Control System offers Full Power, Half Power, Wrench Tight, and Hand Tight settings for different fastening stages and power requirements.
• Variable-speed trigger in Full Power and Half Power modes, together with an electronic brake, supports controlled fastener operation.
• Shadowless 360-degree LED light ring provides illumination around the socket area, with four adjustable light settings for changing work conditions.
• Patented steel-reinforced frame and impact- and chemical-resistant composite housing help protect the tool from repeated drops and exposure to workshop fluids.
• All-metal drivetrain and hammer mechanism support torque transmission during recurring fastening and fastener-removal tasks.
• Two-battery kit provides a spare BL2022 lithium-ion battery for work sessions that extend beyond a single charge.

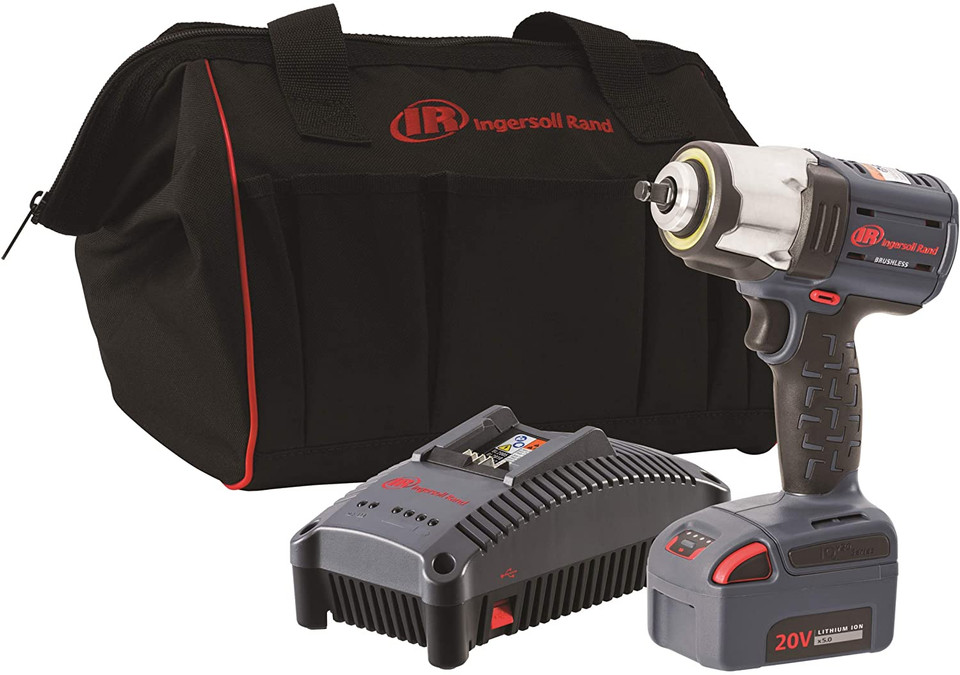

Kit includes: 1/2" Drive W7152P Impact Wrench, Charger, 2 BL2022 Li-ion Batteries & Bag

Applications:

• Fleet truck maintenance: Removing and installing suitable chassis, suspension, and wheel-related fasteners using compatible impact sockets.
• Automotive repair: Loosening high-resistance bolts and nuts during undercarriage, cradle bolt, and mechanical assembly service.
• Heavy equipment servicing: Handling demanding fastener-removal tasks on construction and agricultural machinery.
• Industrial maintenance and MRO: Disassembling and reassembling bolted machinery components, frames, and equipment assemblies.
• Mobile and field repair: Performing high-torque impact work at locations where an air compressor and pneumatic hose are unavailable or impractical.
• Workshop operations requiring positive socket retention: Supporting service tasks where technicians use impact sockets designed for pin-detent anvils.

FAQs:

• Q: What makes the W7152P-K22 different from the W7152-K22?

  A: The primary difference is the socket-retention mechanism. The W7152P-K22 uses a 1/2-inch square pin-retainer anvil, while the W7152-K22 uses a socket retaining ring. Both kits include two BL2022 batteries, a charger, and a bag, and both have the same published maximum and nut-busting torque ratings.

• Q: How does the pin-retainer anvil hold an impact socket?

  A: The retaining pin engages the locking hole of a compatible socket. This provides positive retention, but socket installation and removal may require aligning or releasing the pin according to the manufacturer's instructions. Use impact-rated sockets designed for the pin-retainer arrangement.

• Q: What does the W7152P-K22 kit contain?

  A: The manufacturer's kit listing specifies one W7152P pin-anvil impact wrench, two BL2022 lithium-ion batteries, one charger, and one carrying bag. Impact sockets are not identified as kit contents.

• Q: Can the W7152P-K22 tighten bolts to exactly 1,000 ft-lbs?

  A: The 1,000 ft-lbs figure is the tool's maximum torque rating, not a precision tightening setting. Actual delivered torque varies with the fastener, joint, battery condition, and operating time. Use a calibrated torque wrench for final tightening whenever a specified torque is required.

• Q: What are the four IQV Power Control modes used for?

  A: Full Power provides maximum available output, and Half Power reduces output for applications requiring less force. Wrench Tight and Hand Tight provide lower-power options for preliminary fastener tightening. The appropriate mode depends on the job, but torque-critical work still requires independent final torque verification.

• Q: Does this kit require an external air supply?

  A: No. The W7152P operates using the IQV20 lithium-ion battery system. The cordless design enables use in maintenance bays, outdoor service locations, and industrial facilities without connecting the tool to a compressed air line.

Looking for more information about Ingersoll Rand IQv20 Cordless Impact Wrench Tool Kit? Click here to view the Catalog

For help selecting the correct Ingersoll Rand IQv20 Cordless Impact Wrench Tool Kits, please call (800) 608-5210 or email info@intlairtool.com
