Ingersoll Rand W7152-K22 Cordless Impact Wrench Tool Kit | 1/2" Drive | 1000 (ft-lbs) Max Torque

For mechanics and maintenance technicians who need high fastening power without the restrictions of an air hose, the Ingersoll Rand W7152-K22 Cordless Impact Wrench Tool Kit combines exceptional torque output with the flexibility of the IQV20 battery platform. This 20V cordless impact wrench features a 1/2-inch square drive with a socket retaining ring and delivers 1,000 ft-lbs (1,360 Nm) of maximum fastening torque for demanding bolted connections. It also produces 1,500 ft-lbs (2,033 Nm) of nut-busting torque, a measurement of its maximum fastener-loosening capability. Whether removing stubborn lug nuts, working on suspension components, or servicing industrial machinery, the W7152 offers powerful impact performance without requiring a compressed air supply.

The W7152-K22 is a two-battery kit containing the W7152 impact wrench, two BL2022 20V, 5.0 Ah lithium-ion batteries, a charger, and a carrying bag. The additional battery provides a convenient replacement when one battery needs recharging during extended service work. Its brushless motor and precision-tuned impact mechanism deliver a 0–1,900 RPM free-speed range and up to 2,450 impacts per minute. The IQV Power Control System offers four operating modes—Full Power, Half Power, Wrench Tight, and Hand Tight—to help operators match tool output to different fastening tasks. A 360-degree LED task light with four adjustable settings improves visibility around fasteners, while the reinforced housing protects the tool against exposure to common workshop conditions.

Type: Cordless High-Torque Impact Wrench Tool Kit | Model: W7152-K22 | Series: IQV20 Series | Voltage: 20V DC | Configuration: Pistol Grip | Motor: Brushless | Drive Size: 1/2" | Drive Type: Square Drive with Socket Retaining Ring | Maximum Fastening Torque: 1,000 ft-lbs (1,360 Nm) | Nut-Busting Torque: 1,500 ft-lbs (2,033 Nm) | Free Speed: 0–1,900 RPM | Impacts Per Minute: 2,450 BPM | Power Control: 4 Modes | Battery Model: BL2022 | Battery Capacity: 5.0 Ah | Battery Quantity: 2 | Tool Length: 8.1" (207 mm) | Weight with Battery: 7.6 lbs (3.4 kg)

Features:

• Brushless motor and optimized impact mechanism deliver substantial fastening and breakaway power for automotive, equipment repair, and industrial maintenance applications.
• 1/2-inch square drive with socket retaining ring accommodates compatible impact-rated sockets and helps retain the socket during operation.
• IQV Power Control System provides Full Power, Half Power, Wrench Tight, and Hand Tight operating modes for different fastening requirements.
• Variable-speed trigger allows speed adjustment in Full Power and Half Power modes, while the electronic brake helps stop drive rotation when the trigger is released.
• 360-degree LED light ring illuminates the fastener area from multiple directions, with four adjustable illumination settings for varying working conditions.
• Patented steel-reinforced frame and impact- and chemical-resistant composite housing help protect the tool against repeated drops and exposure to workshop fluids.
• All-metal drivetrain supports torque transmission during demanding fastening and fastener-removal operations.
• Compact 8.1-inch tool length assists with positioning around vehicle assemblies, equipment frames, and machinery components.
• Two-battery kit configuration provides an additional lithium-ion battery to support workflow continuity during lengthy maintenance jobs.

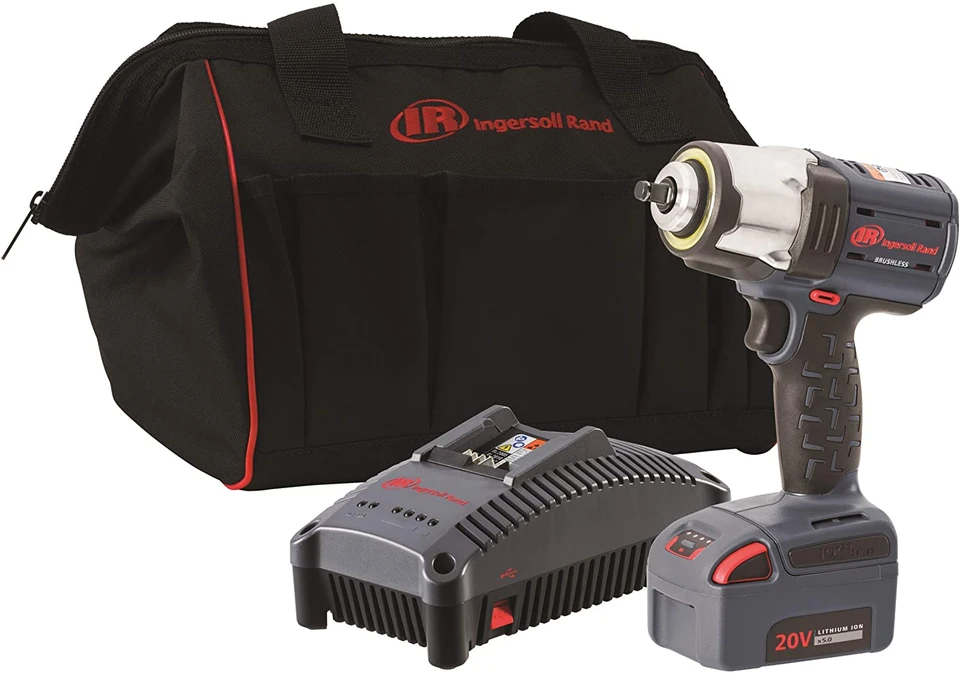

Kit includes: 1/2" Drive W7152 Impact Wrench, Charger, 2 BL2022 Li-ion Batteries & Bag

Applications:

• Automotive repair and tire service: Removing stubborn wheel lug nuts, working on suitable suspension fasteners, and servicing chassis assemblies.
• Commercial fleet maintenance: Loosening and installing fasteners on trucks, service vehicles, trailers, and related mechanical assemblies.
• Heavy equipment maintenance: Performing high-torque fastener removal and installation on suitable machinery components during servicing.
• Industrial maintenance and MRO: Servicing bolted connections on production equipment, machinery frames, and mechanical systems.
• Mobile repair and field service: Handling demanding fastening jobs at locations where a compressed air supply is unavailable or inconvenient.
• Maintenance workshops: Supporting repetitive equipment repairs with selectable power settings and an additional battery for longer work sessions.

FAQs:

• Q: What comes with the Ingersoll Rand W7152-K22 kit?

  A: The W7152-K22 includes the W7152 cordless impact wrench, two BL2022 20V lithium-ion batteries, a charger, and a carrying bag. The two-battery package is useful for technicians who need a spare battery available during service work.

• Q: How does the W7152-K22 differ from the W7152-K12?

  A: Both kits contain the same W7152 impact wrench and charger. The W7152-K12 includes one BL2022 battery, while the W7152-K22 includes two BL2022 batteries. The impact wrench's drive configuration, torque ratings, and operating features are the same.

• Q: Does 1,500 ft-lbs of nut-busting torque mean the tool tightens fasteners to that value?

  A: No. The 1,500 ft-lbs rating describes maximum nut-busting or breakaway capability for loosening resistant fasteners. The tool's maximum fastening torque is 1,000 ft-lbs. For connections requiring a precise final torque, use a calibrated torque wrench and follow the equipment manufacturer's specifications.

• Q: What is the purpose of Hand Tight and Wrench Tight modes?

  A: These modes provide reduced-power operating options for preliminary fastener tightening. They allow an operator to approach the desired fastening condition with more control than Full Power mode. They do not replace a calibrated torque wrench for critical or specified-torque fasteners.

• Q: Does the W7152-K22 require an air compressor?

  A: No. The W7152 is powered by an IQV20 lithium-ion battery rather than compressed air. This makes it suitable for mobile mechanics, field maintenance, and workshop locations where an air hose would restrict movement.

• Q: What is the difference between the W7152-K22 and W7152P-K22?

  A: The W7152-K22 uses a 1/2-inch square drive with a socket retaining ring, while the W7152P-K22 uses a pin-retainer drive. Both are high-torque IQV20 impact wrench kits supplied with two BL2022 batteries. Choose the socket-retention configuration that matches your intended service application.

Looking for more information about Ingersoll Rand IQv20 Cordless Impact Wrench Tool Kit? Click here to view the Catalog

For help selecting the correct Ingersoll Rand IQv20 Cordless Impact Wrench Tool Kits, please call (800) 608-5210 or email info@intlairtool.com
