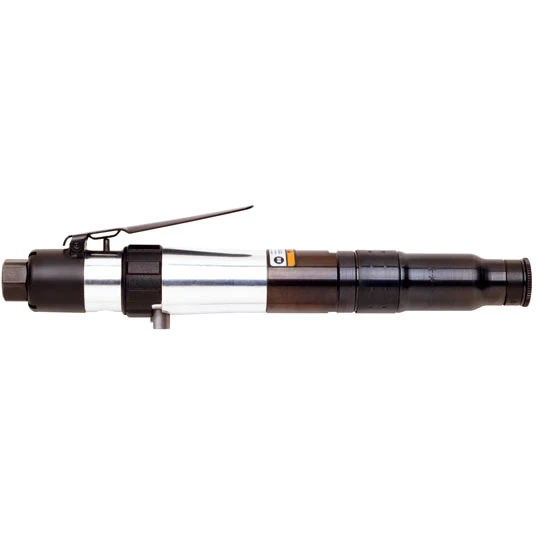

Ingersoll Rand SA024C-15-Q Inline Pneumatic Screwdriver | 1,500 RPM | 3 – 20 (in-lbs ) Torque Range

Built for production assembly, light manufacturing, and fastening jobs where repeatable torque control matters, the Ingersoll Rand SA024C-15-Q Inline Pneumatic Screwdriver delivers 1,500 RPM free speed with a 3 – 20 in-lbs torque range. Its adjustable shut-off clutch automatically stops the tool when the selected torque is reached, helping reduce under-tightening, over-tightening, and fastener damage on controlled assembly work.

This 20 Series inline air screwdriver uses push-to-start operation, meaning the tool starts when the bit is pressed into the fastener for straightforward, repeatable assembly cycles. The compact inline body, lightweight build, Skinsulate housing, and simple push-button reverse make the SA024C-15-Q a practical choice for bench assembly, workstation fastening, and joints where precise torque control is required.

Type: Inline Pneumatic Screwdriver | Model: SA024C-15-Q | SKU: SA024C-15-Q | Series: 20 Series | Clutch Type: Adjustable Shut-Off Clutch | Start Type: Push-to-Start | Torque Range: 3 – 20 in-lbs | Free Speed: 1,500 RPM | Weight: 1.3 lbs | Length: 8.6" | Diameter: 0.6" | Air Inlet: 1/4" NPT | Min Hose Size: 5/16" | Sound Level: 76 dBA | Air Consumption: 15 CFM

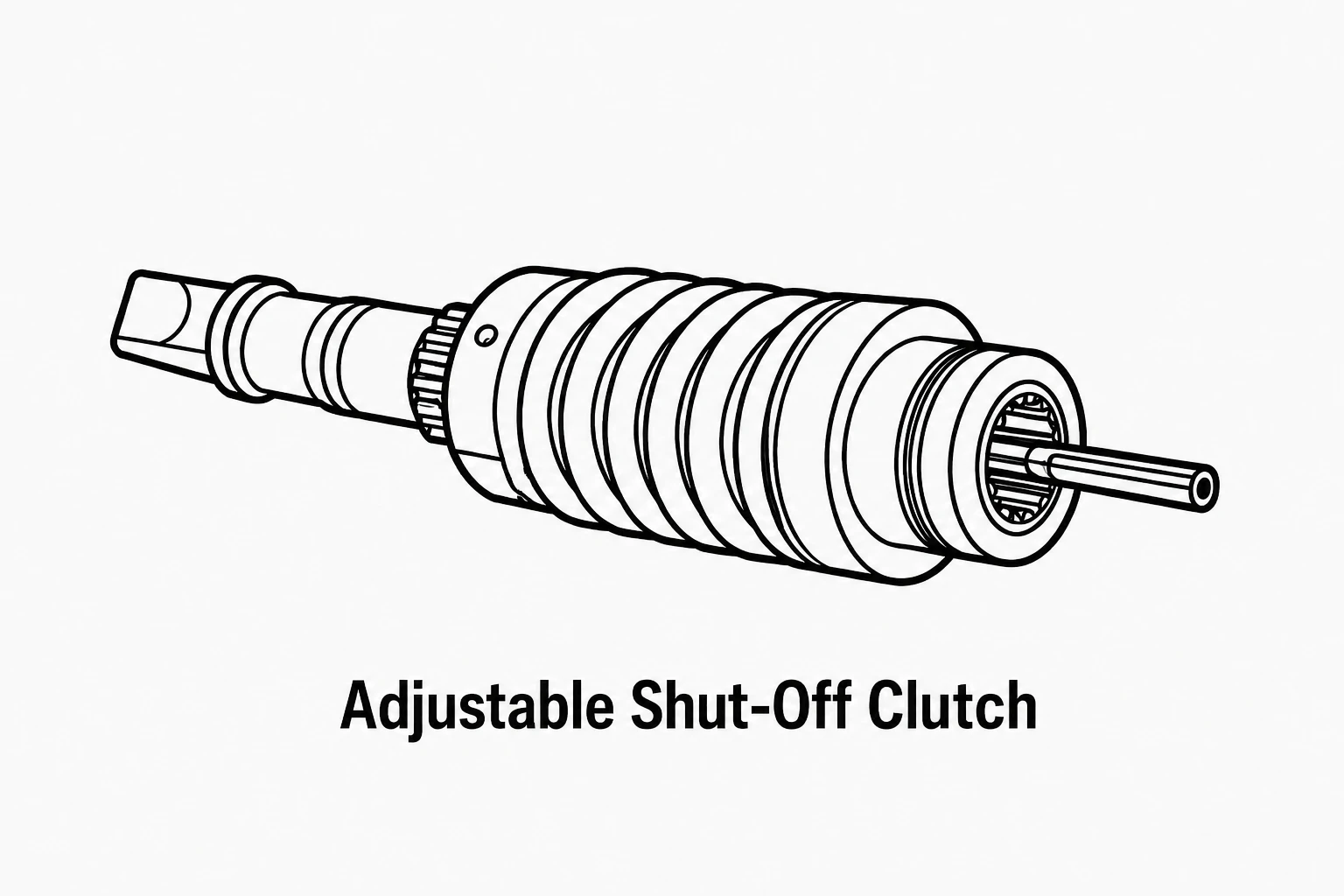

Features: Adjustable shut-off clutch helps stop the tool at the selected torque for repeatable fastening on controlled assembly joints. 1,500 RPM free speed supports efficient rundown on small screws and light assembly fasteners. Push-to-start operation begins the fastening cycle when the bit is pressed into the screw, supporting consistent workstation use. Skinsulate housing provides a comfortable grip surface on push-to-start models. Simple push-button reverse allows quick direction changes when backing out fasteners or correcting assembly work. Compact, lightweight inline body supports bench assembly and repetitive fastening tasks where tool balance matters. Recommended for joints where precise torque control is required.

Made in USA:

Applications:

• Light manufacturing assembly — installing screws into housings, brackets, covers, and small mechanical assemblies.
• Electronics and appliance production — controlled fastening where lower torque settings help protect components and threaded inserts.
• Automotive and vehicle subassembly — repetitive screwdriving on interior trim, panels, small brackets, and accessory components.
• Bench and workstation fastening — push-to-start operation for operators completing repeated fastening cycles at fixed stations.
• Repair and rework areas — backing out and reinstalling fasteners with simple push-button reverse control.
• General industrial assembly — fastening small screws where consistent torque is more important than high fastening power.

FAQs:

• Q: What does an adjustable shut-off clutch do?
  A: An adjustable shut-off clutch stops the screwdriver when the selected torque is reached. This helps improve repeatability and reduces the chance of over-tightening small fasteners.
• Q: What does push-to-start mean on the SA024C-15-Q?
  A: Push-to-start means the tool begins running when the operator presses the bit into the fastener. This setup is useful for repetitive bench assembly because the tool starts only when engaged with the screw.
• Q: What torque range does this screwdriver cover?
  A: The SA024C-15-Q covers a 3 – 20 in-lbs torque range, making it suitable for lower-torque assembly work, small screws, and controlled fastening tasks.
• Q: What air setup is required for this model?
  A: This screwdriver uses a 1/4" NPT air inlet, requires a 5/16" minimum hose size, and has 15 CFM air consumption. Use a clean, regulated air supply sized for continuous assembly tool use.
• Q: Is this tool for high-torque bolting?
  A: No. The SA024C-15-Q is an inline pneumatic screwdriver for controlled screw assembly, not a nutrunner or impact wrench for large bolts.

Looking for more information about Ingersoll Rand Screwdriver? Click here to view the Catalog

For help choosing the correct Ingersoll Rand Screwdrivers for your application, please call (800) 608-5210 or email info@intlairtool.com
