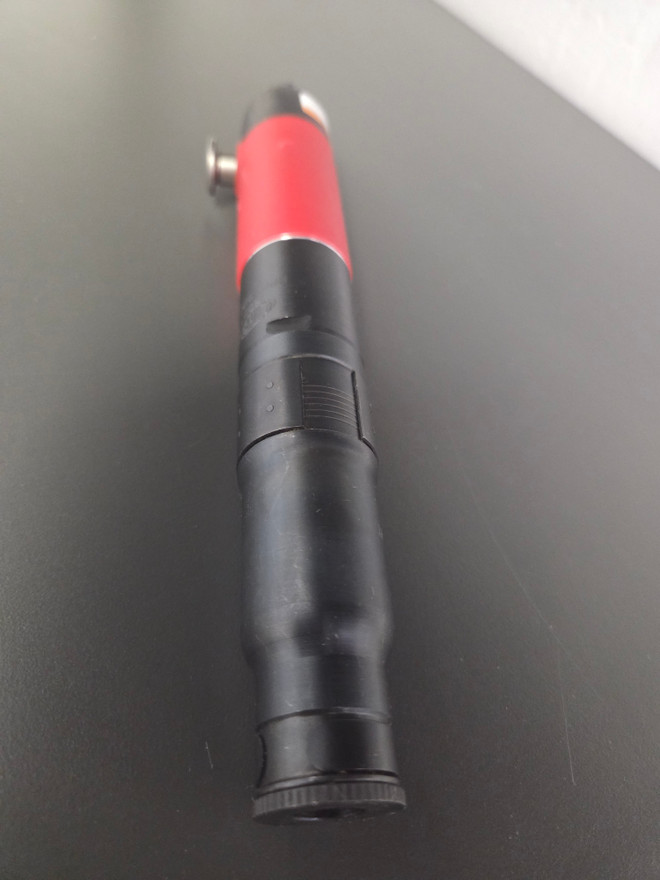

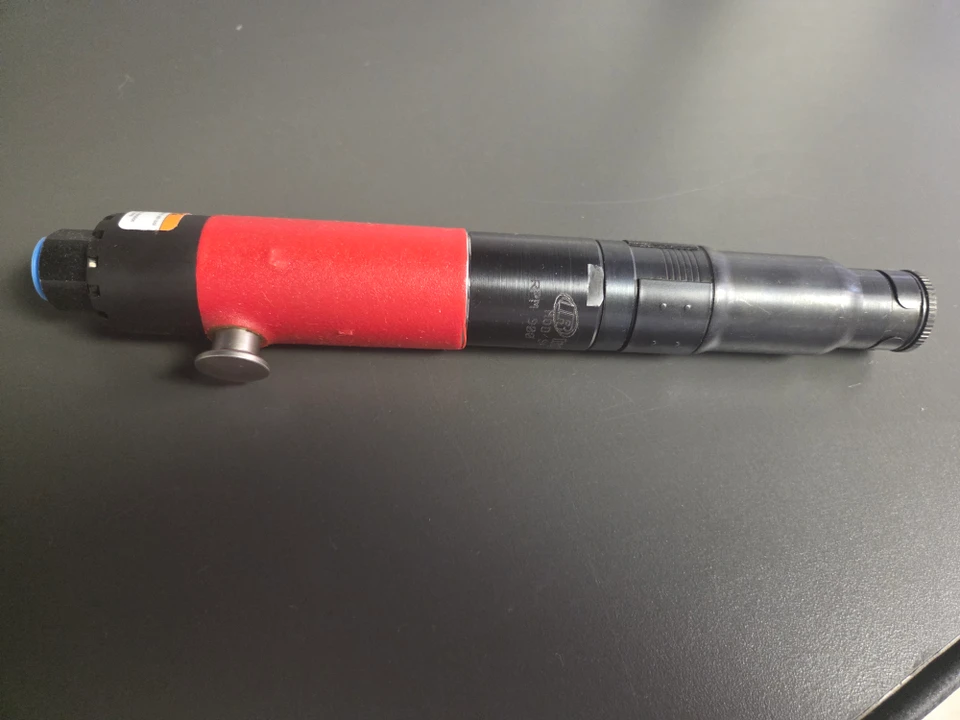

Ingersoll Rand SA024C-9-Q Inline Pneumatic Screwdriver | 900 RPM | 3.0 - 30.0 Torque Range (in-lbs)

Built for production assembly, light manufacturing, and repetitive fastening work, the Ingersoll Rand SA024C-9-Q Inline Pneumatic Screwdriver delivers 900 RPM free speed with a 3 – 30 in-lbs torque range for controlled screwdriving in lower-torque applications. Its adjustable shut-off clutch stops the tool when the selected torque is reached, helping reduce over-tightening, under-tightening, and fastener damage on joints that require precise torque control.

This 20 Series inline air screwdriver uses push-to-start operation, meaning the tool begins running when the bit is pressed into the fastener. The compact, lightweight body, Skinsulate housing, and simple push-button reverse make the SA024C-9-Q a practical choice for bench assembly, workstation fastening, repair stations, and production lines where consistent screw installation matters.

Type: Inline Pneumatic Screwdriver | Model: SA024C-9-Q | SKU: SA024C-9-Q | Series: 20 Series | Clutch Type: Adjustable Shut-Off Clutch | Start Type: Push-to-Start | Torque Range: 3 – 30 in-lbs | Free Speed: 900 RPM | Weight: 1.3 lbs | Length: 8.6" | Diameter: 0.6" | Air Inlet: 1/4" NPT | Min Hose Size: 5/16" | Sound Level: 76 dBA | Air Consumption: 15 CFM

Features: Adjustable shut-off clutch helps stop the tool at the selected torque for repeatable fastening on controlled assembly joints. 900 RPM free speed supports controlled rundown on small screws and light assembly fasteners. Push-to-start operation begins the fastening cycle when the bit is pressed into the screw, supporting consistent workstation use. Skinsulate housing provides a comfortable grip surface on push-to-start models. Simple push-button reverse allows quick direction changes when backing out fasteners or correcting assembly work. Compact, lightweight inline body supports bench assembly and repetitive fastening tasks where tool balance matters. Recommended for joints where precise torque control is required.

Made in USA:

Applications:

• Light manufacturing assembly — installing screws into covers, brackets, housings, panels, and small mechanical assemblies.
• Electronics and appliance production — controlled fastening where lower torque settings help protect plastic parts, inserts, and small threaded components.
• Automotive and vehicle subassembly — repetitive screwdriving on trim, small brackets, interior panels, and accessory components.
• Bench and workstation fastening — push-to-start operation for operators completing repeated fastening cycles at fixed stations.
• Repair and rework areas — backing out and reinstalling fasteners with simple push-button reverse control.
• General industrial assembly — fastening small screws where repeatability is more important than high fastening power.

FAQs:

• Q: What does an adjustable shut-off clutch do?
  A: An adjustable shut-off clutch stops the screwdriver when the selected torque is reached. This helps improve fastening repeatability and reduces the chance of over-tightening small screws.
• Q: What does push-to-start mean on the SA024C-9-Q?
  A: Push-to-start means the tool begins running when the operator presses the bit into the fastener. This setup is useful for repetitive bench assembly because the tool starts only when engaged with the screw.
• Q: What is the difference between the SA024C-9-Q and SA024C-15-Q?
  A: The SA024C-9-Q runs at 900 RPM, while the SA024C-15-Q runs at 1,500 RPM. The 900 RPM model provides slower, more controlled rundown for fastening jobs where speed is less important than control.
• Q: What air setup is required for this model?
  A: This screwdriver uses a 1/4" NPT air inlet, requires a 5/16" minimum hose size, and has 15 CFM air consumption. Use a clean, regulated air supply sized for continuous assembly tool use.
• Q: Is this tool for high-torque bolting?
  A: No. The SA024C-9-Q is an inline pneumatic screwdriver for controlled screw assembly, not a nutrunner or impact wrench for large bolts.

Looking for more information about Ingersoll Rand Screwdriver? Click here to view the Catalog

For help choosing the correct Ingersoll Rand Screwdrivers for your application, please call (800) 608-5210 or email info@intlairtool.com
