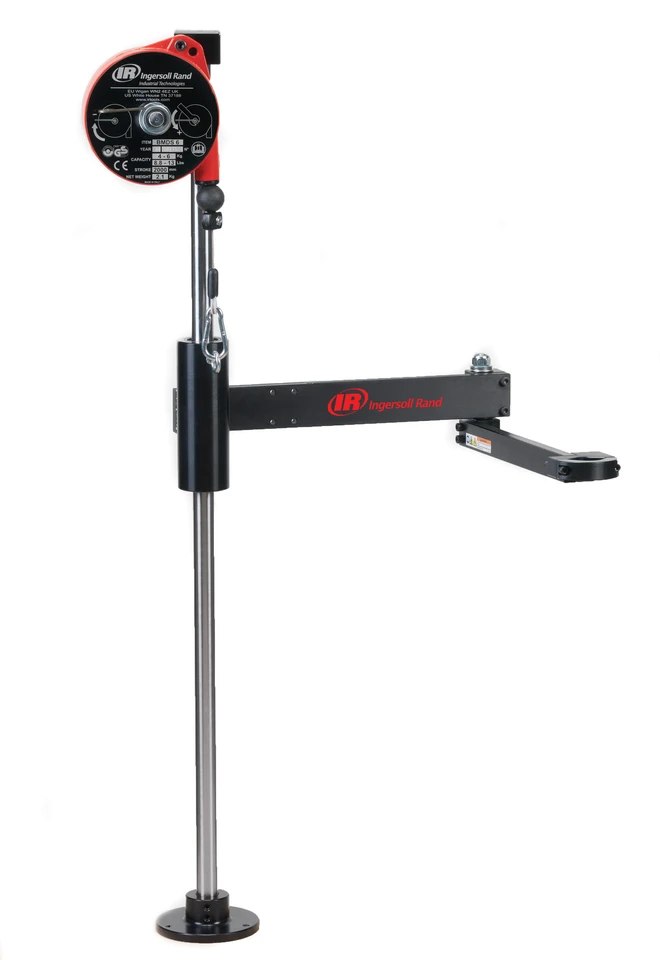

Ingersoll Rand QTA150 Bench/Floor Mounted Torque Reaction Arm is engineered to improve operator ergonomics, reduce reaction force, and deliver consistent fastening performance in demanding assembly operations. Featuring a 110.6 ft-lb torque capacity and a 52-inch maximum working reach, this versatile reaction arm can be installed as either a bench-mounted or floor-mounted system, providing exceptional flexibility for a wide range of workstation layouts. By absorbing the reaction torque generated by torque-controlled assembly tools, it helps reduce operator fatigue while improving fastening accuracy and productivity.
As part of Ingersoll Rand's Assembly Tools lineup, the QTA150 is designed for continuous-duty manufacturing environments where ergonomic support and repeatable torque application are essential. Its extended 52-inch working reach allows operators to access multiple fastening locations without repositioning the reaction arm, while the robust construction ensures stable tool positioning throughout the fastening cycle. The flexible mounting options make it an ideal choice for automotive, industrial equipment, appliance, and general manufacturing assembly lines.
Type: Bench/Floor Mounted Torque Reaction Arm | Model: QTA150 | Torque Capacity: 110.6 ft-lb | Maximum Working Reach: 52 in | Mounting Style: Bench or Floor Mounted
Features:
- Bench- or floor-mounted design provides installation flexibility for a variety of production workstations.
- 110.6 ft-lb torque capacity supports demanding medium- to high-torque fastening applications.
- 52-inch maximum working reach provides extensive workstation coverage for larger assemblies.
- Absorbs reaction torque to help reduce wrist, arm, shoulder, and upper-body fatigue during repetitive fastening.
- Supports improved fastening consistency by maintaining proper tool alignment throughout the fastening process.

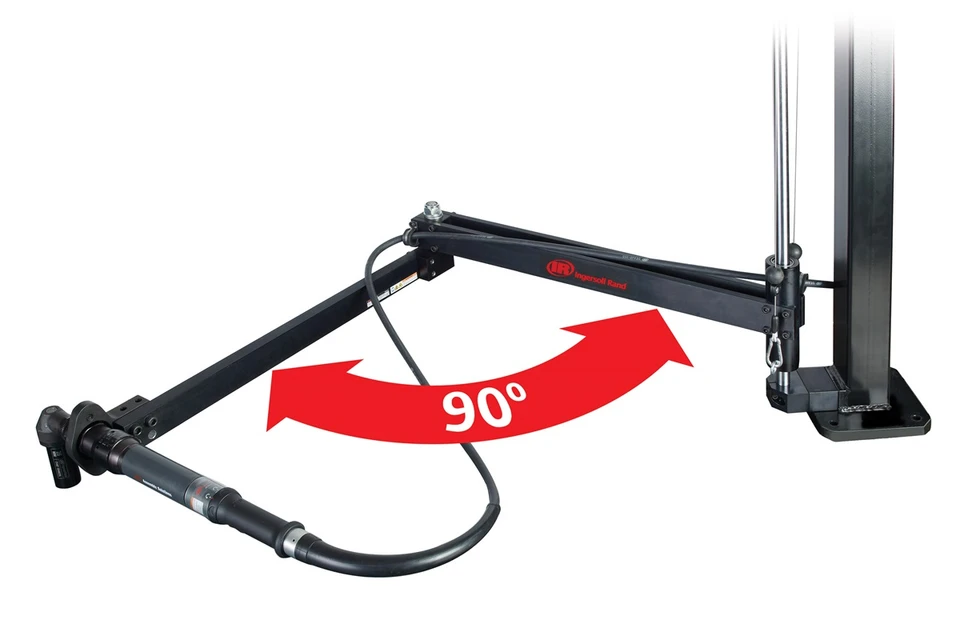

- Smooth articulating arm allows controlled tool movement across a broad operating range.
- Designed for use with compatible pneumatic and electric torque-controlled assembly tools.
- Heavy-duty construction delivers dependable performance in continuous industrial manufacturing environments.
Applications:
- Automotive and commercial vehicle assembly operations.
- Industrial machinery and equipment manufacturing.
- Heavy equipment and transportation component production.
- Appliance and durable goods assembly.
- Production workstations requiring ergonomic support for repetitive medium- to high-torque fastening applications.
FAQs:
- Q: What is the advantage of a bench/floor mounted torque reaction arm?
A: It provides installation flexibility, allowing the reaction arm to be mounted on either a bench or the floor to best suit workstation layout and production requirements. - Q: What does the 110.6 ft-lb torque capacity indicate?
A: It represents the maximum fastening reaction torque the QTA150 is designed to support during normal operating conditions. - Q: Why does the QTA150 have a 52-inch working reach?
A: The extended reach allows operators to access a larger work area and multiple fastening locations without repositioning the reaction arm, improving workflow efficiency. - Q: Which tools are compatible with the QTA150?
A: The QTA150 is intended for compatible pneumatic and electric torque-controlled assembly tools operating within its rated 110.6 ft-lb torque capacity, as specified by Ingersoll Rand.
| SKU | Torque Capacity | Weight Capacity | Max Working Reach | Approx. Vertical Travel | Overall Height | Mounting Style | Movement Style |
|---|---|---|---|---|---|---|---|
| Nm (ft-lbs) | lbs (kg) | in (mm) | in (mm) | in (mm) | |||
| QTA010 | 10 (7.4) | 2.64 (1.20) | 15” (381) | 13.0” (330) | 27.8” (706) | Bench | Spring bal |
| QTA020 | 20 (14.8) | 5.00 (2.27) | 20” (508) | 14.5” (368) | 31.8” (808) | Bench | Spring bal |
| QTA040 | 40 (29.5) | 6.50 (2.95) | 25” (635) | 17.5” (445) | 39.7” (1008) | Bench | Spring bal |
| QTA100 | 100 (73.8) | 8.00 (3.63) | 30” (762) | 17.5” (445) | 39.7” (1008) | Bench | Spring bal |
| QTA150 | 150 (110.6) | 10.00 (4.54) | 52” (1321) | 22.0” (559) | 78.7” (2000) | Bench/Floor | Spring bal |
| QTA270 | 270 (199) | 22.00 (10.0) | 60” (1524) | 18.8” (477) | 78.7” (2000) | Floor | Air cylinders |
| QTA475 | 475 (350) | 50.60 (23.0) | 79” (2007) | 23.2” (590) | 78.7” (2000) | Floor | Air cylinders |
Looking for more information about the Ingersoll Rand Torque Arm? Click here to view the Catalog
For help selecting the correct Ingersoll Rand Torque Arms for your assembly application, call (800) 608-5210 or email info@intlairtool.com
