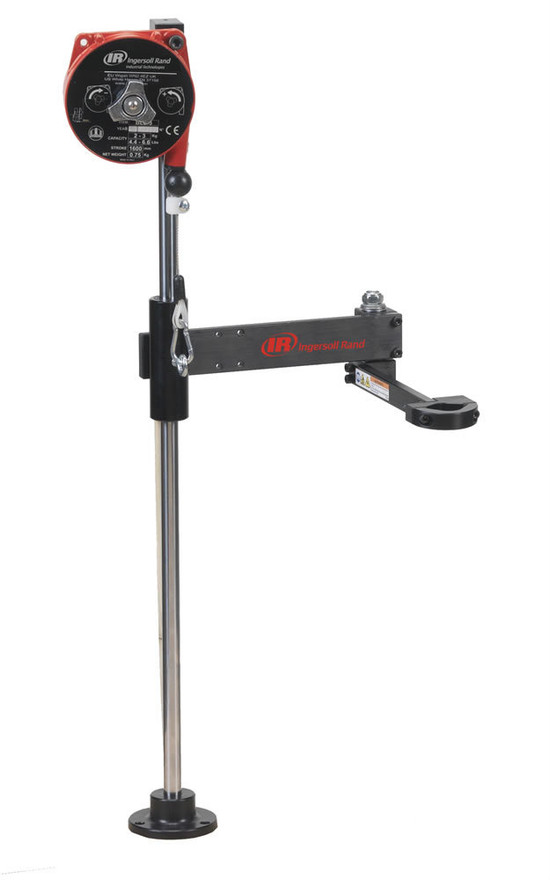

Ingersoll Rand QTA040 Bench-Mounted Torque Reaction Arm is engineered to improve operator ergonomics, reduce reaction force, and enhance fastening consistency during precision assembly operations. Featuring a 29.5 ft-lb torque capacity and a 25-inch maximum working reach, this bench-mounted reaction arm absorbs the reaction forces generated by torque-controlled assembly tools while providing an extended operating range for larger workstations. By transferring reaction torque away from the operator, it helps minimize fatigue, improve tool control, and support accurate, repeatable fastening throughout continuous production.
As part of Ingersoll Rand's Assembly Tools lineup, the QTA040 securely mounts to a workbench while allowing smooth articulation across its working envelope. Its longer reach enables operators to access multiple fastening points without repositioning the reaction arm, while the durable construction is engineered to withstand continuous industrial use. The QTA040 is an ideal solution for manufacturing facilities seeking improved ergonomics, fastening precision, and operator productivity in low- to medium-torque assembly applications.
Type: Bench-Mounted Torque Reaction Arm | Model: QTA040 | Torque Capacity: 29.5 ft-lb | Maximum Working Reach: 25 in | Mounting Style: Bench Mounted
Features:
- Bench-mounted reaction arm absorbs fastening reaction torque to improve operator comfort during repetitive assembly operations.
- 29.5 ft-lb torque capacity supports low- to medium-torque production fastening applications.
- 25-inch maximum working reach provides expanded workstation coverage while maintaining stable tool positioning.
- Helps reduce wrist, arm, and shoulder fatigue by transferring reaction forces away from the operator.
- Supports improved fastening consistency by maintaining proper tool alignment throughout the fastening cycle.

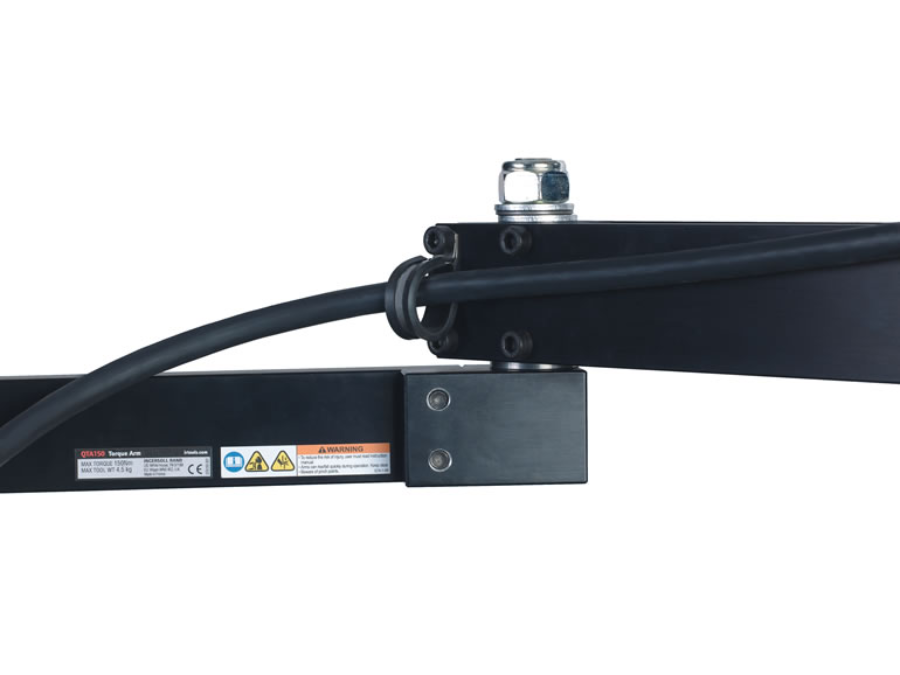

- Smooth articulating arm allows natural tool movement with minimal operating resistance.
- Designed for integration into industrial assembly workstations using torque-controlled pneumatic or electric tools.
- Heavy-duty construction delivers dependable performance in continuous manufacturing environments.
Applications:
- Automotive component and subassembly production.
- Industrial machinery and equipment assembly.
- Appliance and consumer product manufacturing.
- Electronics and light mechanical production environments.
- Assembly workstations requiring ergonomic support for repetitive low- to medium-torque fastening operations.
FAQs:
- Q: What is the purpose of a bench-mounted torque reaction arm?
A: It absorbs the reaction forces generated during fastening, helping reduce operator fatigue while improving tool control and fastening consistency. - Q: What does the 29.5 ft-lb torque capacity indicate?
A: It represents the maximum fastening reaction torque the QTA040 is designed to support during normal operating conditions. - Q: Why does the QTA040 provide a 25-inch working reach?
A: The extended reach allows operators to access a larger work area while maintaining smooth tool movement and stable positioning throughout the fastening cycle. - Q: Which tools are compatible with the QTA040?
A: The QTA040 is intended for compatible pneumatic and electric torque-controlled assembly tools operating within its rated 29.5 ft-lb torque capacity, as specified by Ingersoll Rand.
| SKU | Torque Capacity | Weight Capacity | Max Working Reach | Approx. Vertical Travel | Overall Height | Mounting Style | Movement Style |
|---|---|---|---|---|---|---|---|
| Nm (ft-lbs) | lbs (kg) | in (mm) | in (mm) | in (mm) | |||
| QTA010 | 10 (7.4) | 2.64 (1.20) | 15” (381) | 13.0” (330) | 27.8” (706) | Bench | Spring bal |
| QTA020 | 20 (14.8) | 5.00 (2.27) | 20” (508) | 14.5” (368) | 31.8” (808) | Bench | Spring bal |
| QTA040 | 40 (29.5) | 6.50 (2.95) | 25” (635) | 17.5” (445) | 39.7” (1008) | Bench | Spring bal |
| QTA100 | 100 (73.8) | 8.00 (3.63) | 30” (762) | 17.5” (445) | 39.7” (1008) | Bench | Spring bal |
| QTA150 | 150 (110.6) | 10.00 (4.54) | 52” (1321) | 22.0” (559) | 78.7” (2000) | Bench/Floor | Spring bal |
| QTA270 | 270 (199) | 22.00 (10.0) | 60” (1524) | 18.8” (477) | 78.7” (2000) | Floor | Air cylinders |
| QTA475 | 475 (350) | 50.60 (23.0) | 79” (2007) | 23.2” (590) | 78.7” (2000) | Floor | Air cylinders |
Looking for more information about the Ingersoll Rand Torque Arm? Click here to view the Catalog
For help selecting the correct Ingersoll Rand Torque Arms for your assembly application, call (800) 608-5210 or email info@intlairtool.com
