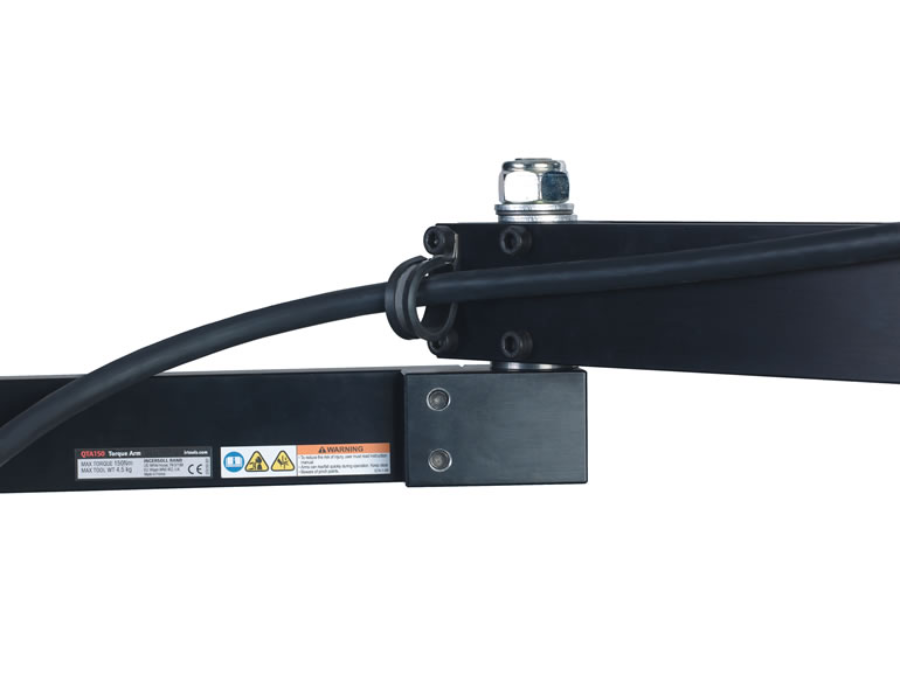

Ingersoll Rand QTA020 Bench-Mounted Torque Reaction Arm is designed to improve operator ergonomics, reduce reaction force, and enhance fastening consistency during precision assembly operations. Featuring a 14.8 ft-lb torque capacity and a 20-inch maximum working reach, this bench-mounted reaction arm absorbs the reaction forces generated by torque-controlled assembly tools, helping minimize operator fatigue while maintaining accurate tool positioning. Its compact yet extended reach makes it well suited for low- to medium-torque fastening applications in production environments.
As part of Ingersoll Rand's Assembly Tools lineup, the QTA020 securely mounts to a workstation while providing smooth articulation throughout the operating range. By transferring reaction torque away from the operator's hands and arms, it promotes greater comfort during repetitive fastening tasks while supporting improved torque repeatability. Its durable construction is engineered for continuous-duty industrial use in manufacturing, automotive, electronics, appliance, and general assembly applications.
Type: Bench-Mounted Torque Reaction Arm | Model: QTA020 | Torque Capacity: 14.8 ft-lb | Maximum Working Reach: 20 in | Mounting Style: Bench Mounted
Features:
- Bench-mounted reaction arm absorbs fastening reaction torque to improve operator comfort during repetitive assembly operations.
- 14.8 ft-lb torque capacity supports precision low- to medium-torque fastening applications.
- 20-inch maximum working reach provides increased workstation coverage while maintaining stable tool positioning.
- Helps reduce wrist, arm, and shoulder fatigue by transferring reaction forces away from the operator.
- Supports improved fastening consistency by maintaining proper tool alignment throughout the fastening cycle.
- Smooth articulating arm allows controlled tool movement across the work area with minimal resistance.
- Designed for integration into industrial production workstations using torque-controlled pneumatic or electric tools.
- Heavy-duty construction provides dependable performance in continuous manufacturing environments.
Applications:
- Electronics and precision component assembly.
- Automotive subassembly and light mechanical production.
- Appliance and consumer product manufacturing.
- Industrial assembly workstations using low- to medium-torque fastening tools.
- Production environments requiring ergonomic support and repeatable fastening performance.
FAQs:
- Q: What is the purpose of a bench-mounted torque reaction arm?
A: It absorbs the reaction forces generated during fastening, helping reduce operator fatigue while improving tool control and fastening consistency. - Q: What does the 14.8 ft-lb torque capacity indicate?
A: It represents the maximum fastening reaction torque the QTA020 is designed to support during normal operating conditions. - Q: Why does the QTA020 have a 20-inch working reach?
A: The 20-inch reach provides greater flexibility across the workstation, allowing operators to access multiple fastening points while maintaining stable tool support. - Q: What tools are compatible with this reaction arm?
A: The QTA020 is intended for compatible pneumatic and electric torque-controlled assembly tools operating within its rated 14.8 ft-lb torque capacity, as specified by Ingersoll Rand.
| SKU | Torque Capacity | Weight Capacity | Max Working Reach | Approx. Vertical Travel | Overall Height | Mounting Style | Movement Style |
|---|---|---|---|---|---|---|---|
| Nm (ft-lbs) | lbs (kg) | in (mm) | in (mm) | in (mm) | |||
| QTA010 | 10 (7.4) | 2.64 (1.20) | 15” (381) | 13.0” (330) | 27.8” (706) | Bench | Spring bal |
| QTA020 | 20 (14.8) | 5.00 (2.27) | 20” (508) | 14.5” (368) | 31.8” (808) | Bench | Spring bal |
| QTA040 | 40 (29.5) | 6.50 (2.95) | 25” (635) | 17.5” (445) | 39.7” (1008) | Bench | Spring bal |
| QTA100 | 100 (73.8) | 8.00 (3.63) | 30” (762) | 17.5” (445) | 39.7” (1008) | Bench | Spring bal |
| QTA150 | 150 (110.6) | 10.00 (4.54) | 52” (1321) | 22.0” (559) | 78.7” (2000) | Bench/Floor | Spring bal |
| QTA270 | 270 (199) | 22.00 (10.0) | 60” (1524) | 18.8” (477) | 78.7” (2000) | Floor | Air cylinders |
| QTA475 | 475 (350) | 50.60 (23.0) | 79” (2007) | 23.2” (590) | 78.7” (2000) | Floor | Air cylinders |
