Built for high-precision assembly applications where repeatable torque control is essential, the Ingersoll Rand QA8ASRS040NF41S08 Inline Air Nutrunner delivers a 14.8–29.5 ft-lbs (20–40 Nm) torque range with a 540 RPM free speed and a 1/2 in. square drive. Its inline configuration keeps the tool aligned with the fastener for improved control during repetitive fastening operations, while the remote start design allows seamless integration into automated assembly systems and production workstations. This QA8 Series nutrunner is well suited for manufacturing environments where fastening consistency, productivity, and torque accuracy are critical.

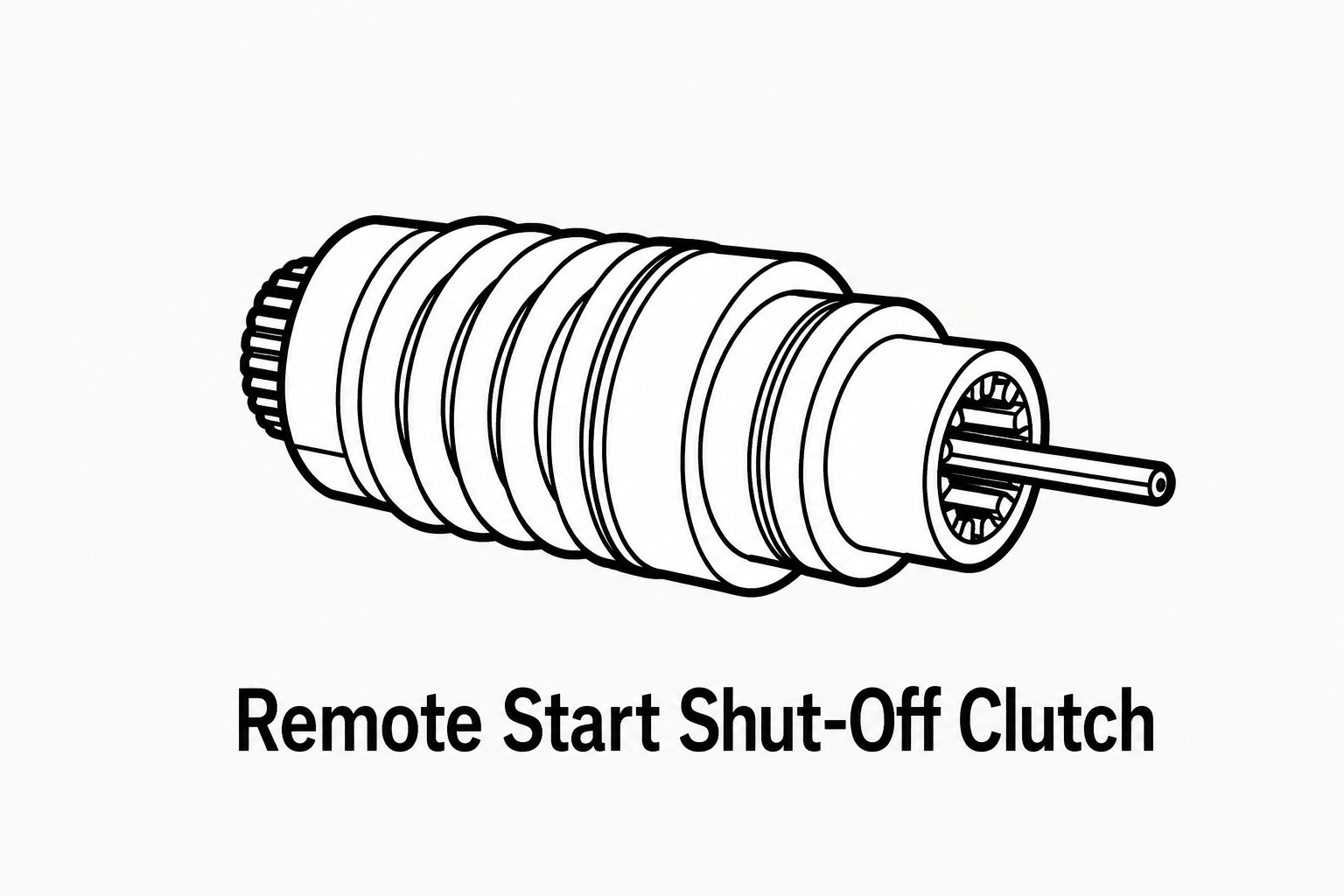

The QA8 Series features a precision shut-off clutch that automatically disengages once the preset torque is reached, helping improve fastening repeatability while minimizing the risk of over-tightening. Its durable air motor is engineered for continuous production use, and the compact inline housing provides excellent accessibility in confined assembly areas. The 1/2 in. square drive accommodates a wide range of industrial sockets for medium-torque fastening applications.
Type: Inline Air Nutrunner | Series: QA8 Series | Model: QA8ASRS040NF41S08 | Drive Size: 1/2 in. Square | Torque Range: 14.8–29.5 ft-lbs (20–40 Nm) | Free Speed: 540 RPM | Start Type: Remote Start | Configuration: Inline | Clutch Type: Shut-Off Clutch
|
Features:
Made in USA: |
 |
Applications:
- Automotive and commercial vehicle production requiring controlled torque fastening.
- Industrial manufacturing and production line assembly operations.
- Appliance, HVAC, and electrical equipment assembly.
- Machinery manufacturing requiring accurate threaded fastener installation.
- Automated workstations utilizing remote start fastening tools.
FAQs:
- Q: What type of clutch does this nutrunner use?
A: This model features a shut-off clutch that automatically disengages once the preset torque is achieved, helping improve fastening consistency and reduce over-tightening. - Q: What does Remote Start mean?
A: Remote Start allows the tool to be activated by an external control signal, making it suitable for automated and integrated assembly systems. - Q: What sockets are compatible with this tool?
A: The QA8ASRS040NF41S08 features a 1/2 in. square drive that accepts standard industrial impact and assembly sockets. - Q: What types of applications is this tool intended for?
A: It is intended for precision production fastening where consistent torque output and repeatable assembly quality are required.
| SKU | Torque Range - 90 PSI | Free Speed - 90 PSI | Torque Range - 77 PSI | Free Speed - 77 PSI | Weight | Length | Side to Center | Square Drive |
|---|---|---|---|---|---|---|---|---|
| FT-LBS (NM) | RPM | FT-LBS (NM) | RPM | LBS (KG) | IN (MM) | IN (MM) | IN | |
| QA8ASRS040NF41S06 | 14.8 – 29.5 (20 – 40) | 540 | 14.8 – 25.8 (20 – 35) | 515 | 6.03 (2.73) | 18.8" (478) | 1.34" (34) | 3/8" |
| QA8ASRS040NF41S08 | 14.8 – 29.5 (20 – 40) | 540 | 14.8 – 25.8 (20 – 35) | 515 | 6.05 (2.74) | 18.8" (478) | 1.34" (34) | 1/2" |
| QA8ASRS055NF41S08 | 18.4 – 40.6 (25 – 55) | 425 | 18.4 – 36.1 (25 – 49) | 405 | 6.05 (2.74) | 18.8" (478) | 1.34" (34) | 1/2" |
| QA8ASRS070NF41S08 | 25.8 – 51.6 (35 – 70) | 320 | 25.8 – 45.7 (35 – 62) | 305 | 6.80 (3.09) | 19.0" (482) | 1.69" (43) | 1/2" |
| QA8ASRS090NF41S08 | 33.2 – 66.4 (45 – 90) | 230 | 33.2 – 59.0 (45 – 80) | 220 | 7.53 (3.42) | 20.4" (518) | 1.69" (43) | 1/2" |
| QA8ASRS115NF41S08 | 51.6 – 84.8 (70 – 115) | 195 | 51.6 – 75.2 (70 – 102) | 185 | 8.02 (3.64) | 20.4" (517) | 2.00" (51) | 1/2" |
| QA8ASRS150NF41S08 | 55.3 – 110.6 (75 – 150) | 150 | 55.3 – 98.1 (75 – 133) | 145 | 8.02 (3.64) | 20.4" (517) | 2.00" (51) | 1/2" |
| QA8ASRS180NF41S08 | 66.4 – 132.8 (90 – 180) | 125 | 66.4 – 118.0 (90 – 160) | 120 | 8.02 (3.64) | 20.4" (517) | 2.00" (51) | 1/2" |
Looking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog
For help choosing the proper Ingersoll Rand Nutrunners for your assembly application, please email info@intlairtool.com or call (800) 608-5210
