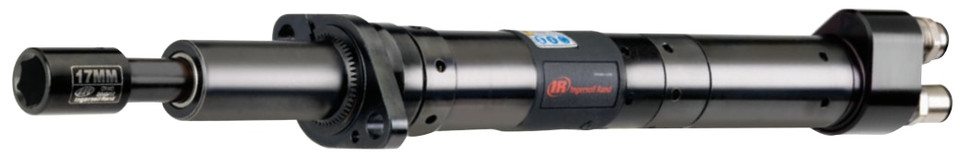

Designed for precision fastening in fixtured assembly operations, the Ingersoll Rand QA8ASRD040NF41S06 Inline Air Nutrunner delivers a 29.5 ft-lb (40 Nm) recommended torque, 540 RPM free speed, and a 3/8 in. square drive. Featuring Remote Start and a stall clutch, this inline pneumatic nutrunner is ideal for pressure-controlled fastening applications where consistent torque output and repeatable assembly performance are required.
Part of the QA8 Series, this tool combines a slim inline design with a lube-free motor for reduced maintenance and easier integration into production fixtures. Torque is controlled through air pressure regulation, making it well suited for non-critical or pressure-controlled multi-spindle fixtured assembly systems.
Type: Inline Air Nutrunner | Series: QA8 Series | Model: QA8ASRD040NF41S06 | SKU: QA8ASRD040NF41S06 | Drive Size: 3/8 in. Square | Start Type: Remote Start | Clutch Type: Stall | Recommended Torque (90 PSI): 29.5 ft-lb (40 Nm) | Torque @ 77 PSI: 25.8 ft-lb (35 Nm) | Maximum Torque: 34.7 ft-lb (47 Nm) | Free Speed: 540 RPM | Weight: 6.03 lb (2.73 kg) | Length: 18.8 in. (478 mm) | Housing Diameter: 1.34 in. (34 mm) | Air Inlet: 1/2 in. NPT | Air Hose I.D.: 3/8 in. NPT | Air Consumption: 46 CFM (1303 L/min) | Sound Level: 87 dBA
|
Features:
Made in USA: |
 |
Applications:
- Automotive assembly operations.
- Industrial manufacturing lines.
- Multi-spindle fixtured assembly systems.
- General production fastening.
- Pressure-controlled tightening applications.
- Electronic and mechanical equipment assembly.
FAQs:
- Q: What is the recommended torque output?
A: The recommended assembly torque is 29.5 ft-lb (40 Nm) at 90 PSI. - Q: What type of clutch does this tool use?
A: This model uses a stall clutch with torque controlled through air pressure regulation. - Q: What drive size does this nutrunner have?
A: It features a 3/8 in. square drive. - Q: Is this tool designed for handheld or fixtured applications?
A: It is primarily intended for non-critical or pressure-controlled multi-spindle fixtured assembly applications. - Q: Does the motor require lubrication?
A: No. The QA8 Series features a lube-free motor for reduced maintenance.
| SKU | ||||||||
|---|---|---|---|---|---|---|---|---|
| 90 PSI FT-LBS (NM)* |
77 PSI FT-LBS (NM) |
90 PSI FT-LBS (NM) |
90 PSI RPM |
LBS (KG) | IN (MM) | IN (MM) | IN | |
| REMOTE START | ||||||||
| QA8ASRD040NF41S06 | 29.5 (40) | 25.8 (35) | 34.7 (47) | 540 | 6.03 (2.73) | 18.8" (478) | 1.34" (34) | 3/8" |
| QA8ASRD040NF41S08 | 29.5 (40) | 25.8 (35) | 34.7 (47) | 540 | 6.05 (2.74) | 18.8" (478) | 1.34" (34) | 1/2" |
| QA8ASRD055NF41S08 | 40.6 (55) | 36.1 (49) | 44.2 (60) | 425 | 6.05 (2.74) | 18.8" (478) | 1.34" (34) | 1/2" |
| QA8ASRD070NF41S08 | 51.6 (70) | 45.7 (62) | 59.0 (80) | 320 | 6.80 (3.09) | 19.0" (482) | 1.69" (43) | 1/2" |
| QA8ASRD090NF41S08 | 66.4 (90) | 59.0 (80) | 78.2 (106) | 230 | 7.53 (3.42) | 20.4" (518) | 1.69" (43) | 1/2" |
| QA8ASRD115NF41S08 | 84.8 (115) | 75.2 (102) | 93.7 (127) | 195 | 8.02 (3.64) | 20.4" (517) | 2.00" (51) | 1/2" |
| QA8ASRD150NF41S08 | 110.6 (150) | 98.1 (133) | 120.2 (163) | 150 | 8.02 (3.64) | 20.4" (517) | 2.00" (51) | 1/2" |
| QA8ASRD180NF41S08 | 132.9 (180) | 118.0 (160) | 143.1 (194) | 125 | 8.02 (3.64) | 20.4" (517) | 2.00" (51) | 1/2" |
Looking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog
For help choosing the proper Ingersoll Rand Nutrunners for your assembly application, please email info@intlairtool.com or call (800) 608-5210
