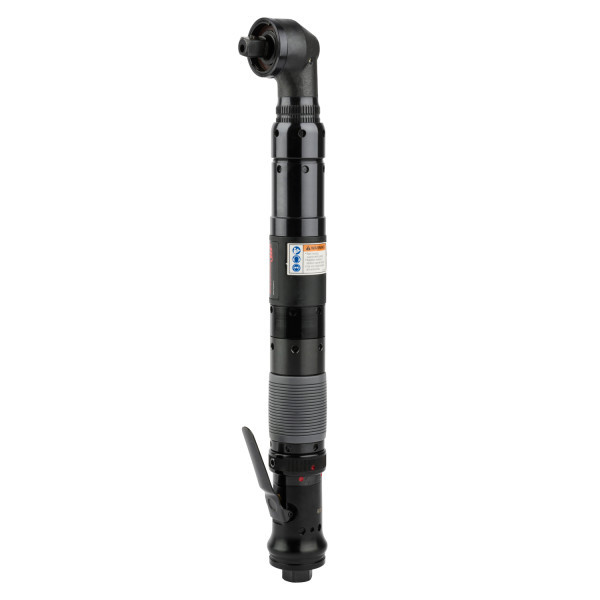

Ingersoll Rand QA8AALS040NP35S06 Angle Air Nutrunner is a high-performance pneumatic fastening tool designed for precise torque control in industrial assembly environments. Featuring a 3/8" drive, 14.8–29.5 ft-lbs torque range, and a 570 RPM operating speed, this inline air nutrunner delivers consistent and reliable fastening performance for medium- to high-volume production tasks.
Ingersoll Rand QA8AALS040NP35S06 combines durable construction with a compact angle design, allowing access to tight spaces while maintaining precise torque application. Its 3/8" drive supports standard sockets and fastening accessories, and pneumatic operation ensures consistent torque output.
Type: Angle Air Nutrunner | Drive Size: 3/8" | Torque: 14.8–29.5 ft-lbs | Speed: 570 RPM | Series: QA8A Series
|
Features:
Made in USA: |
 |
Applications:
- Industrial assembly requiring controlled torque on 3/8" fasteners.
- Medium- to high-volume production — consistent performance for repetitive tasks.
- Confined space applications — angle design allows operation in tight areas.
- Manufacturing — fastening machinery components, brackets, and metal assemblies.
FAQs:
- Q: What applications is this nutrunner best suited for?
A: It is ideal for medium- to high-volume assembly requiring precise torque on 3/8" fasteners, especially in confined spaces. - Q: What fasteners are compatible?
A: The 3/8" drive works with standard sockets and fastening accessories. - Q: Can it access tight areas?
A: Yes, the compact angle design allows operation in confined or restricted spaces. - Q: How is torque consistency maintained?
A: Pneumatic operation ensures precise torque delivery, and proper calibration is recommended.
| SKU | 90 psi ft-lbs (Nm) | 90 psi rpm | 77 psi ft-lbs (Nm) | 77 psi rpm | lbs (kg) | in (mm) | in (mm) | in (mm) | in |
|---|---|---|---|---|---|---|---|---|---|
| Lever Start | |||||||||
| QA8AALS040NP35S06 | 14.8 – 29.5 (20 – 40) | 570 | 14.8 – 25.8 (20 – 35) | 540 | 5.38 (2.44) | 17.8” (453) | 0.69” (18) | 1.71” (44) | 3/8” |
| QA8AALS040NP35S08 | 14.8 – 29.5 (20 – 40) | 570 | 14.8 – 25.8 (20 – 35) | 540 | 5.40 (2.45) | 17.8” (453) | 0.69” (18) | 1.71” (44) | 1/2” |
| QA8AALS055NP35S08 | 18.4 – 40.6 (25 – 55) | 425 | 18.4 – 36.1 (25 – 49) | 400 | 5.40 (2.45) | 17.8” (453) | 0.69” (18) | 1.71” (44) | 1/2” |
| QA8AALS070NP43S08 | 25.8 – 51.6 (35 – 70) | 320 | 25.8 – 45.7 (35 – 62) | 305 | 5.40 (2.45) | 17.5” (445) | 0.85” (22) | 1.76” (45) | 1/2” |
| QA8AALS090NP43S08 | 33.2 – 66.4 (45 – 90) | 255 | 33.2 – 59.0 (45 – 80) | 240 | 5.40 (2.45) | 17.5” (445) | 0.85” (22) | 1.76” (45) | 1/2” |
| QA8AALS115NP48S08 | 51.6 – 84.8 (70 – 115) | 200 | 51.6 – 75.2 (70 – 102) | 190 | 6.15 (2.79) | 17.8” (452) | 0.97” (25) | 1.97” (50) | 1/2” |
| QA8AALS150NP48S08 | 55.3 – 110.6 (75 – 150) | 145 | 55.3 – 98.1 (75 – 133) | 140 | 6.88 (3.12) | 19.2” (489) | 0.97” (25) | 1.97” (50) | 1/2” |
| QA8AALS200NF56S12 | 73.8 – 147.5 (100 – 200) | 110 | 73.8 – 131.3 (100 – 178) | 105 | 8.86 (4.02) | 20” (508) | 1.19” (30) | 2.09” (53) | 3/4” |
| QA8AALS225NF56S12 | 92.2 – 166 (125– 225) | 90 | 92.2 – 163.7 (125 – 222) | 85 | 8.86 (4.02) | 20” (508) | 1.19” (30) | 2.09” (53) | 3/4” |
Looking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Nutrunners for your application, please call (800) 608-5210 or email info@intlairtool.com
