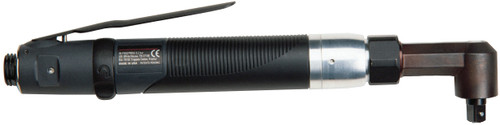

Ingersoll Rand QA8AALD200NF56S12 Angle Air Nutrunner is an industrial-grade pneumatic fastening tool designed for high-torque assembly applications. With a 3/4" drive, 148 ft-lbs torque, and a 110 RPM operating speed, this lever-start angle nutrunner delivers precise and repeatable fastening performance for heavy-duty production tasks.
Ingersoll Rand QA8AALD200NF56S12 lever-start mechanism allows immediate activation while providing controlled torque delivery. Its 3/4" drive accommodates standard heavy-duty sockets and fastening accessories, while pneumatic operation supplies consistent power for demanding assembly operations.
Type: Angle Air Nutrunner | Drive Size: 3/4" | Torque: 148 ft-lbs | Speed: 110 RPM | Start Type: Lever Start | Series: QA8A Series
|
Features:
Made in USA: |
 |
Applications:
- Heavy-duty industrial assembly requiring precise torque on 3/4" fasteners.
- Manufacturing — fastening machinery components, large brackets, or structural metal assemblies.
- Confined space assembly — angled design allows operation in tight or restricted areas.
- Production line maintenance — repetitive fastening tasks with consistent torque output.
- Metal fabrication — assembly of large components where accurate torque is critical for safety and performance.
FAQs:
- Q: What is the advantage of the lever-start design?
A: Lever-start allows instant activation while maintaining precise torque control. - Q: What fasteners are compatible with this tool?
A: The 3/4" drive works with standard heavy-duty sockets and fastening accessories. - Q: Can this nutrunner operate in tight spaces?
A: Yes, the angled configuration allows operation in confined or hard-to-reach areas. - Q: How can I ensure consistent torque application?
A: Verify calibration and use torque-compatible accessories. The lever-start mechanism ensures repeatable torque delivery. - Q: Is this tool suitable for high-volume production?
A: Yes, the 110 RPM pneumatic operation provides reliable performance for repetitive industrial assembly tasks.
| SKU | 90 PSI FT-LBS (NM)* | 90 PSI RPM | 77 PSI FT-LBS (NM) | 77 PSI RPM | LBS (KG) | IN (MM) | IN (MM) | IN (MM) | IN |
|---|---|---|---|---|---|---|---|---|---|
| LEVER START | |||||||||
| QA8AALD040NP35S06 | 30 (40) | 38.3 (52) | 26 (35) | 570 | 4.98 (2.26) | 17.8" (453) | 1.71" (44) | 0.69" (18) | 3/8" |
| QA8AALD040NP35S08 | 30 (40) | 38.3 (52) | 26 (35) | 570 | 5.00 (2.27) | 17.8" (453) | 1.71" (44) | 0.69" (18) | 1/2" |
| QA8AALD055NP35S08 | 41 (55) | 50.1 (68) | 36 (49) | 425 | 5.00 (2.27) | 17.8" (453) | 1.71" (44) | 0.69" (18) | 1/2" |
| QA8AALD070NP43S08 | 52 (70) | 63.4 (86) | 46 (62) | 320 | 5.00 (2.27) | 17.5" (445) | 1.76" (45) | 0.85" (22) | 1/2" |
| QA8AALD090NP43S08 | 66 (90) | 79.6 (108) | 59 (80) | 255 | 5.00 (2.27) | 17.5" (445) | 1.76" (45) | 0.85" (22) | 1/2" |
| QA8AALD115NP48S08 | 85 (115) | 91.4 (124) | 75 (102) | 200 | 5.75 (2.61) | 17.8" (452) | 1.97" (50.0) | 0.97" (25) | 1/2" |
| QA8AALD150NP48S08 | 111 (150) | 121.7 (165) | 98 (133) | 145 | 6.48 (2.94) | 19.2" (489) | 1.97" (50.0) | 0.97" (25) | 1/2" |
| QA8AALD200NF56S12 | 148 (200) | 157.1 (213) | 131 (178) | 110 | 8.47 (3.84) | 20.0" (508) | 2.09" (53.2) | 1.19" (30) | 3/4" |
| QA8AALD225NF56S12 | 166 (225) | 202.1 (274) | 164 (222) | 90 | 8.47 (3.84) | 20.0" (508) | 2.09" (53.2) | 1.19" (30) | 3/4" |
Looking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog
For help choosing the proper Ingersoll Rand Nutrunners for your assembly application, please email info@intlairtool.com or call (800) 608-5210
- Type
- Nutrunner
- Actuation
- Lever Start
- Torque (ft-lbs)
- 148
- RPM
- 110
- Side to Center (in.)
- 2.09
- Drive Size (in.)
- 3/4
- Sound Level (dbA)
- 87
- Drive Type
- Square Drive
- Length (in.)
- 20.0
- Angle Head Height (in.)
- 1.19
- Air Inlet
- 3/8" NPT
- Air Consumption (CFM)
- 46
- Hose Size (in.)
- 3/4
