Designed for precision fastening in fixtured assembly operations, the Ingersoll Rand QA4ASRD046NF41S06 Inline Air Nutrunner delivers a 33.9 ft-lb (46 Nm) recommended torque, 250 RPM free speed, and a 3/8 in. square drive. Featuring Remote Start and a stall clutch, this inline pneumatic nutrunner is engineered for pressure-controlled fastening applications requiring consistent torque output and repeatable assembly performance.
Built as part of the QA4 Series, this tool combines a compact inline profile with a lube-free motor to reduce maintenance while simplifying integration into automated and fixtured assembly systems. Torque is regulated through air pressure, making it well suited for non-critical and pressure-controlled production applications.
Type: Inline Air Nutrunner | Series: QA4 Series | Model: QA4ASRD046NF41S06 | SKU: QA4ASRD046NF41S06 | Drive Size: 3/8 in. Square | Start Type: Remote Start | Clutch Type: Stall | Recommended Torque (90 PSI): 33.9 ft-lb (46 Nm) | Torque @ 77 PSI: 29.5 ft-lb (40 Nm) | Maximum Torque: 39.8 ft-lb (54 Nm) | Free Speed: 250 RPM | Air Inlet: 1/4 in. NPT | Minimum Hose I.D.: 1/4 in. | Weight: 3.09 lb (1.40 kg) | Length: 13.5 in. (343 mm) | Housing Diameter: 1.34 in. (34 mm) | Air Consumption: 28 CFM (793 L/min) | Sound Level: 82 dBA
|
Features:
Made in USA: |
 |
Applications:
- Automotive assembly operations.
- Industrial manufacturing lines.
- Electronics and appliance assembly.
- Fixtured fastening systems.
- Pressure-controlled production applications.
- General manufacturing and mechanical assembly.
FAQs:
- Q: What is the recommended torque output?
A: This model provides a recommended torque of 33.9 ft-lb (46 Nm) at 90 PSI. - Q: What clutch type does this tool use?
A: It utilizes a stall clutch with torque controlled through air pressure. - Q: What drive size is provided?
A: This model features a 3/8 in. square drive. - Q: Is this tool intended for automated assembly systems?
A: Yes. The Remote Start configuration is designed for fixtured and automated production applications. - Q: Does the motor require lubrication?
A: No. The QA4 Series features a lube-free motor that helps reduce maintenance.

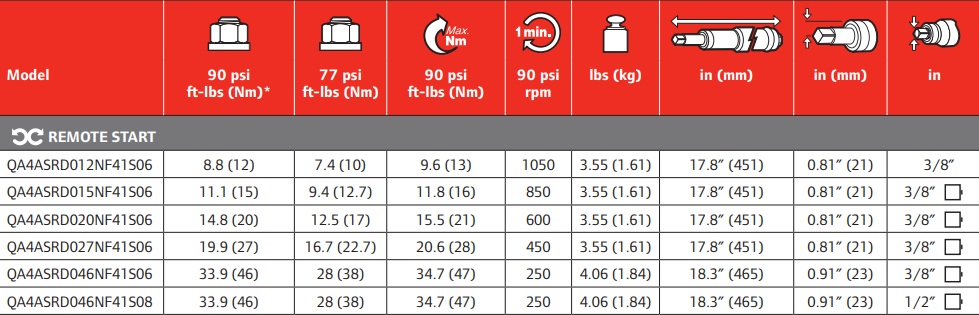

| SKU | ||||||||
|---|---|---|---|---|---|---|---|---|
| 90 PSI FT-LBS (NM)* |
77 PSI FT-LBS (NM) |
90 PSI FT-LBS (NM) |
90 PSI RPM |
LBS (KG) | IN (MM) | IN (MM) | IN | |
| REMOTE START | ||||||||
| QA4ASRD012NF41S06 | 8.8 (12) | 7.4 (10) | 9.6 (13) | 1050 | 3.55 (1.61) | 17.8" (451) | 0.81" (21) | 3/8" |
| QA4ASRD015NF41S06 | 11.1 (15) | 9.4 (12.7) | 11.8 (16) | 850 | 3.55 (1.61) | 17.8" (451) | 0.81" (21) | 3/8" |
| QA4ASRD020NF41S06 | 14.8 (20) | 12.5 (17) | 15.5 (21) | 600 | 3.55 (1.61) | 17.8" (451) | 0.81" (21) | 3/8" |
| QA4ASRD027NF41S06 | 19.9 (27) | 16.7 (22.7) | 20.6 (28) | 450 | 3.55 (1.61) | 17.8" (451) | 0.81" (21) | 3/8" |
| QA4ASRD046NF41S06 | 33.9 (46) | 28 (38) | 34.7 (47) | 250 | 4.06 (1.84) | 18.3" (465) | 0.91" (23) | 3/8" |
| QA4ASRD046NF41S08 | 33.9 (46) | 28 (38) | 34.7 (47) | 250 | 4.06 (1.84) | 18.3" (465) | 0.91" (23) | 1/2" |
Looking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Nutrunners for your application, please call (800) 608-5210 or email info@intlairtool.com
