Ingersoll Rand NS11-B22-19 Beryllium Copper Replacement Needle | 5" Length | Set of 19

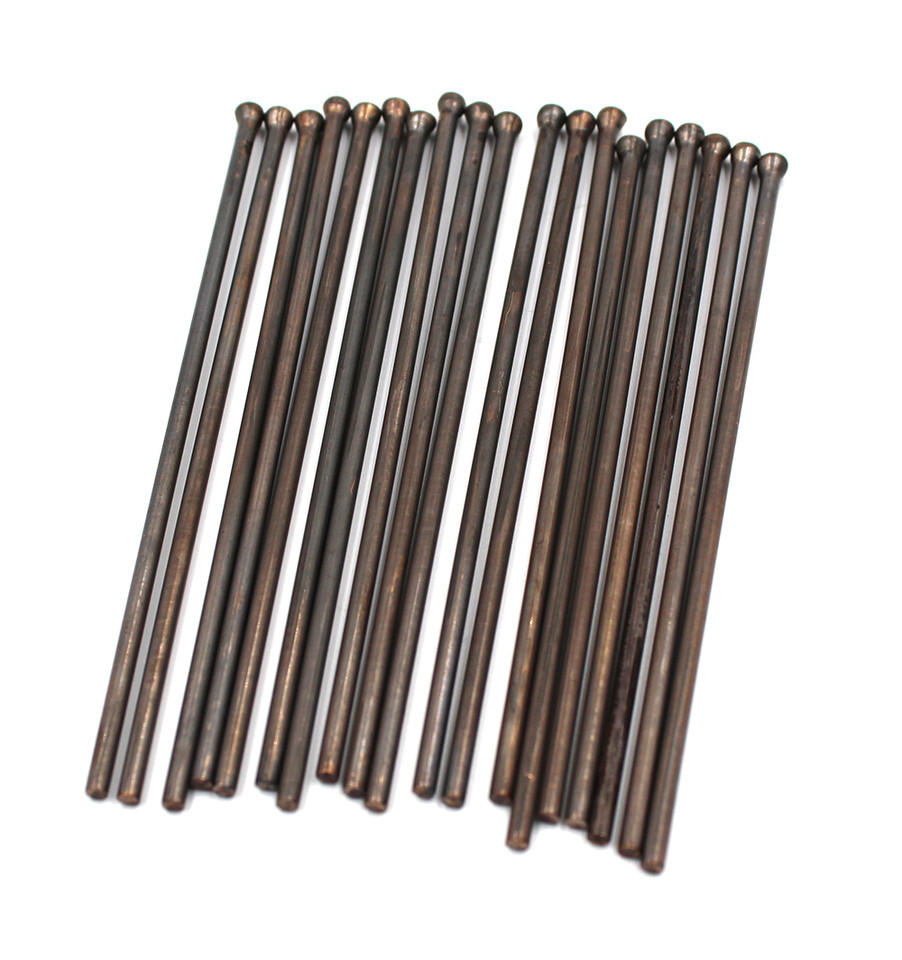

When replacing worn scaler needles or selecting an alternative needle material for metal surface cleaning, the Ingersoll Rand NS11-B22-19 Beryllium Copper Replacement Needle Set provides a manufacturer-listed option for compatible pneumatic needle scaler attachments. This set contains 19 beryllium copper needles, each measuring 5 inches (127 mm) long with a 3 mm nominal diameter. The beryllium copper construction distinguishes this set from standard steel needles and is commonly selected for applications where reduced spark generation is a consideration. The individual needles move against uneven surfaces during scaler operation, helping remove loose deposits from weld profiles, curved components, and textured metalwork.

Ingersoll Rand identifies NS11-B22-19 as an optional replacement needle set in its Construction Tool Steels and Accessories catalog. The set corresponds to the beryllium copper needle configuration used with the NS11BB rectangular needle housing; the manufacturer's needle scaler parts documentation also identifies it for the NS11AB round housing attachment. The needles are intended to replace worn or damaged components while retaining an otherwise serviceable compatible housing. This product includes replacement needles only, not the needle housing or pneumatic scaler. Although beryllium copper is associated with reduced-sparking applications, suitability for a particular hazardous environment must be established through the applicable safety requirements and equipment documentation.

Type: Replacement Needle Set | Part Number: NS11-B22-19 | Brand: Ingersoll Rand | Needle Material: Beryllium Copper | Needle Length: 5" (127 mm) | Needle Diameter: 3 mm | Quantity: Set of 19 | Catalog Configuration: Optional | Associated Housings: NS11BB Rectangular, NS11AB Round | Product Category: Pneumatic Needle Scaler Accessories

Features:

• Set of 19 replacement needles matches the manufacturer's specified quantity for compatible pneumatic scaler attachments.
• Beryllium copper needle material provides an alternative to conventional steel for applications requiring consideration of spark generation.
• Standard 5-inch needle length matches the beryllium copper housing configurations identified in Ingersoll Rand's accessory documentation.
• 3 mm nominal needle diameter helps maintenance personnel select the correct replacement size for the intended attachment.
• Multiple independently moving needle tips can follow uneven contours during removal of suitable loose surface deposits.
• Manufacturer-listed optional accessory supports replacement of worn needles without purchasing a complete housing assembly.

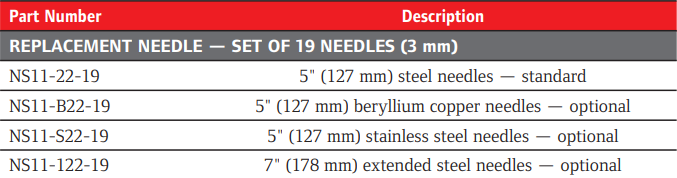

• Dedicated part number distinguishes this set from the standard steel, stainless steel, and extended-length alternatives.

Made in USA:

Applications:

• Pneumatic scaler maintenance: Replacing worn or damaged beryllium copper needles in compatible needle housings.
• Metal fabrication: Cleaning suitable weld profiles, irregular surfaces, and textured metal components with the specified needle material.
• Industrial equipment refurbishment: Removing loose scale and surface deposits from accessible machinery components.
• Maintenance operations with material-specific requirements: Supporting scaler configurations where beryllium copper needles are selected under an approved workplace procedure.
• Tool crib and MRO inventory: Maintaining a separately identified replacement set for existing beryllium copper scaler attachments.

FAQs:

• Q: How many needles are included in the Ingersoll Rand NS11-B22-19 set?

  A: The manufacturer's catalog specifies 19 beryllium copper replacement needles. Each needle measures 5 inches (127 mm) long and has a nominal diameter of 3 mm.

• Q: Which needle housings use the NS11-B22-19 replacement set?

  A: Ingersoll Rand identifies this needle set for beryllium copper attachments, including the NS11BB rectangular housing and NS11AB round housing listed in its parts documentation. Confirm the existing housing part number before ordering.

• Q: What is the difference between NS11-B22-19 and NS11-22-19?

  A: Both are 19-piece replacement sets with 5-inch needles and a 3 mm nominal diameter. NS11-B22-19 uses beryllium copper, while NS11-22-19 contains standard steel needles. The two materials are listed separately to support different application requirements.

• Q: Are these needles non-sparking?

  A: Beryllium copper needles are commonly classified as reduced-sparking or non-sparking products, but that terminology does not mean sparks are impossible. The referenced Ingersoll Rand catalog confirms the material but does not provide an explosion-protection certification or guarantee suitability for hazardous atmospheres. Evaluate the complete tool, workpiece, and working environment before use.

• Q: Does this set include a pneumatic scaler or needle housing?

  A: No. NS11-B22-19 consists of replacement needles only. The needle housing and pneumatic scaler must be obtained separately if required.

• Q: Can beryllium copper needles be sharpened or modified?

  A: Do not grind, sharpen, or modify these needles without a manufacturer-approved procedure. Machining or abrading beryllium-containing alloys can produce hazardous airborne particles. Replace damaged or excessively worn needles according to the manufacturer's maintenance instructions.

Looking for more information about Ingersoll Rand Replacement Needle? Click here to view the Catalog.

For help selecting the correct Ingersoll Rand Replacement Needles for your assembly application, call (800) 608-5210 or email info@intlairtool.com
