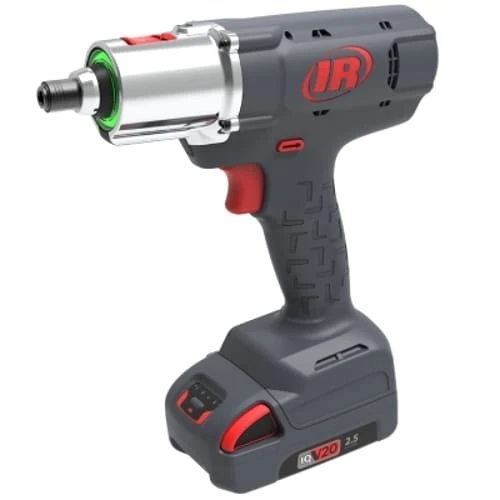

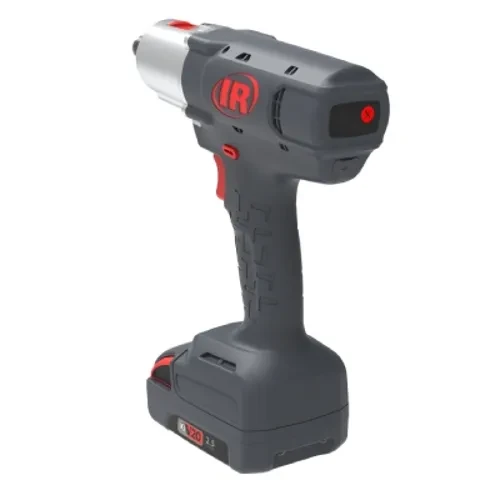

Ingersoll Rand Non-Programmable Cordless Clutch Screwdriver | QCN2P02Q4 | 20 Voltage | 0.5 - 2 (Nm) Torque Range

Ingersoll Rand QCN2P02Q4 Non-Programmable Cordless Clutch Screwdriver combines controlled torque delivery with the mobility of the 20V IQV20 battery platform. Featuring a 0.5–2 Nm torque range and a 1/4" hex quick-change drive, this pistol-grip screwdriver supports repeatable tightening of smaller threaded fasteners in manufacturing and component assembly. Its adjustable auto shut-off clutch stops fastening when the selected torque is reached, helping reduce inconsistent tightening. With an operating speed range of 350–1,160 RPM, operators can manage initial fastener engagement and subsequent rundown without switching tools.

The QCN2P02Q4 features a brushless DC motor, a dual-speed non-contact trigger, and a lockable clutch adjustment door for controlled production use. Ingersoll Rand's proven clutch design delivers Cmk > 1.67 with ±10% accuracy, supporting consistent fastening results under defined test conditions. A configurable 360° LED ring light displays red for NOK (not OK) tightening, green for OK tightening, and white for task illumination. Together with the cycle status indicator, this visual feedback helps operators recognize fastening outcomes immediately. Weighing 2.3 lbs (1.04 kg) without battery, the tool provides a lightweight cordless option for repetitive assembly operations.

Type: Non-Programmable Cordless Clutch Screwdriver | Model: QCN2P02Q4 | Series: QC Series | Battery Platform: IQV20 | Voltage: 20V | Configuration: Pistol Grip | Drive Size: 1/4" Hex Quick Change | Torque Range: 0.5–2 Nm | Speed: 350–1,160 RPM | Motor: Brushless DC | Clutch: Adjustable Auto Shut-Off | Weight Without Battery: 2.3 lbs (1.04 kg) | Length Without Battery: 8.3" (210 mm) | Height Without Battery: 8.2" (208.6 mm) | Setup: Non-Programmable

Features:

• Adjustable auto shut-off clutch provides repeatable torque control, with Cmk > 1.67 at ±10% accuracy under manufacturer-specified conditions.
• Non-programmable operation offers mechanical torque adjustment without requiring electronic fastening program setup.
• Lockable, tamper-proof clutch adjustment door helps prevent unintended changes to established torque settings.
• Brushless DC motor supports enhanced durability during repetitive assembly work.
• Dual-speed, non-contact trigger is designed for more than one million operating cycles.
• Configurable 360° LED ring light provides red, green, and white illumination for tightening feedback and work-area visibility.
• Cycle Status Indicator provides PASS/FAIL feedback to help operators identify fastening results.
• Lightweight pistol-grip configuration supports handling during repeated fastening operations.
• QC Series clutch tools are designed to withstand more than 500,000 cycles in demanding production environments.
• Compatible with the Ingersoll Rand IQV20 battery platform, including manufacturer-listed BL20212 and BL2022 batteries and BC1121 charger.

Applications:

• Electronics and electrical equipment assembly – installing small threaded fasteners where controlled tightening torque is required.
• Appliance manufacturing – securing covers, housings, and components during repetitive production-line fastening.
• Automotive component assembly – tightening light-duty brackets, interior components, and smaller fasteners within the specified torque range.
• Light industrial manufacturing – supporting workstation-based screwdriving tasks that require repeatable clutch shut-off.
• Production quality-control operations – using visual OK/NOK feedback to help operators recognize completed and unsuccessful tightening cycles.

FAQs:

• Q: What is the torque range of the Ingersoll Rand QCN2P02Q4?
  A: The screwdriver operates within a 0.5–2 Nm torque range. Its adjustable auto shut-off clutch allows the user to select the tightening torque appropriate for the fastening application.
• Q: What does non-programmable mean on this cordless screwdriver?
  A: Non-programmable means the tool uses a mechanically adjustable clutch rather than electronic fastening program setup. It provides torque-controlled tightening without requiring operators to configure programmed fastening sequences.
• Q: How does the tool indicate whether tightening was successful?
  A: The configurable LED ring displays green for OK tightening and red for NOK tightening. A separate cycle status indicator also provides PASS/FAIL feedback, while the white LED setting illuminates the work area.
• Q: Which battery platform does the QCN2P02Q4 use?
  A: It operates on Ingersoll Rand's 20V IQV20 platform. The manufacturer's flyer identifies BL20212 and BL2022 as compatible batteries and BC1121 as a compatible charger.
• Q: Is a battery and charger included with the QCN2P02Q4?
  A: The QCN2P02Q4 is the tool-only model. For a package containing the screwdriver, two BL2012 2.5 Ah batteries, and a charger, Ingersoll Rand lists the separate QCN2P02Q4-K2 kit.

Looking for more information about Ingersoll Rand Cordless Clutch Tools? Click here to view the Catalog

For help choosing the correct Ingersoll Rand Cordless Clutch Tool, please call (800) 608-5210 or email info@intlairtool.com
