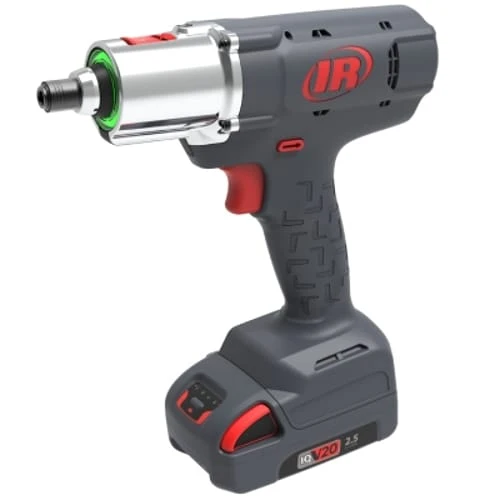

Ingersoll Rand Non-Programmable Cordless Clutch Screwdriver | QCN2P08Q4 | 20 Voltage | 3 - 8 (Nm) Torque Range

Ingersoll Rand QCN2P08Q4 Non-Programmable Cordless Clutch Screwdriver delivers controlled fastening without the restrictions of a power cord or compressed-air hose. This 20V cordless screwdriver provides a 3–8 Nm torque range, allowing operators to select the appropriate tightening setting for mechanical components, equipment housings, and assembly hardware. Its 1/4" hex drive accepts matching screwdriver bits, while the 140–700 RPM speed range supports controlled fastener rundown. An auto shut-off clutch automatically stops the fastening operation at the selected torque, helping maintain consistent tightening results during repeated production cycles.

The QCN2P08Q4 operates on the Ingersoll Rand IQV20 battery platform and combines mechanical clutch adjustment with visual fastening confirmation. Ingersoll Rand's proven clutch design achieves Cmk > 1.67 with ±10% accuracy under manufacturer-specified conditions. Cmk is a machine capability index that measures fastening process consistency against defined limits. A configurable 360° LED ring light provides green indication for OK tightening, red for NOK (not OK) tightening, and white illumination for the work area. A separate Cycle Status Indicator displays PASS/FAIL feedback to help operators recognize fastening outcomes. Equipped with a brushless DC motor, locking clutch adjustment door, and dual-speed non-contact trigger, the screwdriver weighs 2.3 lbs without battery, offering a manageable pistol-grip configuration for repetitive assembly work.

Type: Non-Programmable Cordless Clutch Screwdriver | Model: QCN2P08Q4 | Series: QC Series | Tool Configuration: Pistol | Voltage: 20V | Battery Platform: IQV20 | Drive: 1/4" Hex | Torque Range: 3–8 Nm | Speed: 140–700 RPM | Motor: Brushless DC | Clutch: Auto Shut-Off | Weight Without Battery: 2.3 lbs | Length Without Battery: 210 mm | Height Without Battery: 208.6 mm | Setup: Non-Programmable

Features:

• Adjustable auto shut-off clutch provides repeatable torque control, with Cmk > 1.67 and 10% accuracy under manufacturer-specified conditions.
• 3–8 Nm tightening range accommodates assembly operations requiring more torque than the lower-range QC Series pistol models.
• Lockable, tamper-proof clutch adjustment door helps prevent unintended changes to established tightening settings.
• Non-programmable configuration allows mechanical torque adjustment without electronic fastening program setup.
• Brushless DC motor provides enhanced durability for repetitive production fastening.
• Dual-speed, non-contact trigger is designed for more than one million operating cycles.
• Configurable 360° LED ring light uses red for NOK tightening, green for OK tightening, and white for task illumination.
• Cycle Status Indicator delivers PASS/FAIL feedback to support quick visual verification of fastening results.
• Balanced, lightweight pistol-grip design supports handling during repeated assembly operations.
• QC Series clutch tools are designed to withstand more than 500,000 cycles in demanding production environments.
• IQV20 platform compatibility supports operation with manufacturer-listed BL20212 and BL2022 batteries and the BC1121 charger.

Applications:

• Industrial equipment assembly – tightening threaded fasteners on machinery covers, mounting components, and mechanical subassemblies requiring 3–8 Nm of torque.
• Automotive component manufacturing – fastening brackets, interior assemblies, and equipment components where controlled torque is specified.
• Appliance and equipment production – securing housings, structural supports, and threaded assembly hardware during repeated fastening cycles.
• Electrical and electromechanical assembly – installing mounting fasteners on equipment enclosures and mechanical support components.
• Production-line fastening workstations – performing repetitive tightening operations where clutch shut-off and immediate visual cycle feedback help operators maintain consistent assembly procedures.

FAQs:

• Q: What torque range does the Ingersoll Rand QCN2P08Q4 provide?
  A: The QCN2P08Q4 has an adjustable torque range of 3–8 Nm. Its auto shut-off clutch stops driving when the selected tightening torque is reached, making it suitable for repeated fastening operations within that range.
• Q: How does the QCN2P08Q4 compare with the QCN2P04Q4?
  A: The QCN2P08Q4 operates from 3–8 Nm at 140–700 RPM, while the QCN2P04Q4 operates from 1–4 Nm at 350–1,160 RPM. The QCN2P08Q4 is suited to applications requiring higher tightening torque, while the QCN2P04Q4 covers lower-torque fastening requirements.
• Q: Is programming required to change the torque setting?
  A: No. The QCN2P08Q4 uses a mechanically adjustable clutch and does not require electronic fastening program configuration. Its locking clutch adjustment door helps protect the selected torque setting during operation.
• Q: What do the LED colors indicate during fastening?
  A: Green indicates OK tightening, red indicates NOK tightening, and white provides task illumination. The separate Cycle Status Indicator displays PASS/FAIL feedback so operators can quickly assess the result of a fastening cycle.
• Q: Is a battery kit available for the QCN2P08Q4?
  A: Yes. Ingersoll Rand lists the QCN2P08Q4-K2 kit, which includes the 8 Nm pistol screwdriver, two BL2012 2.5 Ah batteries, and a charger. The standalone QCN2P08Q4 package contents should be confirmed separately before ordering.
