Ingersoll Rand ML500KS-2C27-C60 MLK Series Air Chain Hoist | 1/2 Ton Capacity | 27 ft Lift | 60 ft Drop | Steel Snap Hook | Pendent Control

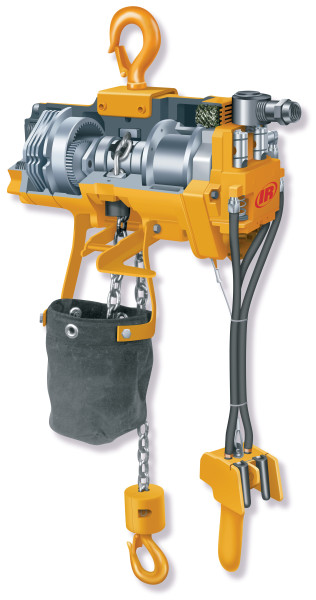

Designed for dependable overhead lifting in manufacturing, maintenance, assembly, and material handling applications, the Ingersoll Rand ML500KS-2C27-C60 Air Chain Hoist combines a 1/2 Ton (1,100 lb / 500 kg) capacity with a 27 ft lift and an extended 60 ft pendent drop for applications requiring remote hoist operation from floor level. Part of the MLK Series, this pneumatic chain hoist features a six-vane air motor engineered for continuous 100% duty-cycle operation, delivering reliable lifting performance throughout demanding industrial shifts. The responsive 2-button pendent control enables smooth and accurate load positioning, while the steel snap hook with safety latch provides secure load engagement.

Engineered for reliable industrial service, the ML500KS-2C27-C60 features a spring-engaged, air-release non-asbestos disc brake that automatically secures suspended loads whenever the controls are released. Upper and lower limit stops help prevent excessive chain travel, while the compact hook-mounted configuration minimizes installation headroom requirements. This configuration is supplied without a chain container, making it suitable for installations where a chain bag is not specified by the manufacturer.

Type: Air Chain Hoist | Series: MLK Series | Model: ML500KS-2C27-C60 | Capacity: 1/2 Ton (1,100 lb / 500 kg) | Lift: 27 ft | Pendent Drop: 60 ft | Control Type: 2-Button Pendent Control | Top Suspension: Top Hook | Bottom Hook: Steel Snap Hook with Safety Latch | Chain Container: None | Chain Falls: 1 | Load Chain Size: 4 × 12 mm | Air Inlet: 1/4 in. NPT | Operating Pressure: 70–100 PSI | Duty Cycle: 100%

Features:

• Six-vane air motor provides continuous 100% duty cycle performance.
• Spring-engaged, air-release non-asbestos disc brake securely holds suspended loads.

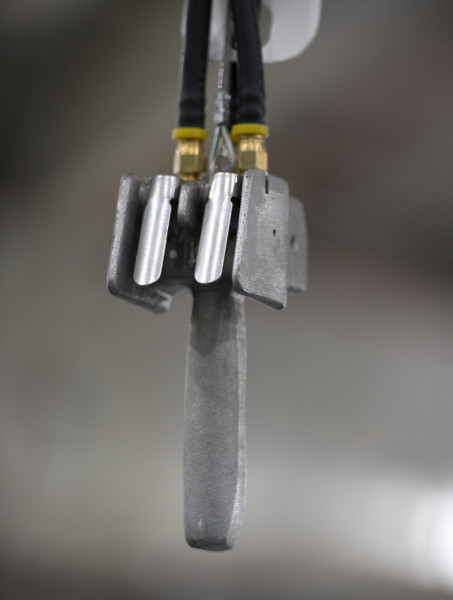

• Full-flow 2-button pendent control enables smooth and precise lifting and lowering.
• Extended 60 ft control drop allows convenient operation from lower working levels.
• Upper and lower limit stops help prevent excessive chain travel during operation.
• Steel snap hook with integrated safety latch provides dependable load attachment.
• Single-fall load chain configuration supports the rated 1/2 ton lifting capacity.
• Meets ASME B30.16, ASME HST-5 Duty Rating A5, and FEM/ISO Classification 1Am/M4.

Applications:

• High-bay manufacturing facilities requiring long pendant reach.
• Maintenance operations servicing elevated equipment.
• Assembly lines with overhead lifting systems.
• Industrial fabrication facilities handling suspended components.
• General material handling applications utilizing compressed air-powered lifting equipment.

FAQs:

• Q: What is the lifting capacity of this hoist?
  A: The ML500KS-2C27-C60 is rated to lift up to 1/2 ton (1,100 lb / 500 kg).
• Q: How many chain falls does this model use?
  A: This ML500KS model utilizes a single-fall (1-fall) load chain configuration designed for its rated 1/2 ton capacity.
• Q: Does this model include a chain container?
  A: No. The manufacturer catalog identifies this configuration without a chain container.
• Q: Why does this hoist have a 60 ft pendent drop?
  A: The extended control drop allows the operator to control the hoist from floor level or other lower work areas while the hoist is mounted at an elevated location.
• Q: Is this hoist suitable for continuous-duty operation?
  A: Yes. The six-vane pneumatic motor is designed for a 100% duty cycle, making it suitable for demanding industrial lifting applications.

Looking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog.

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
