Ingersoll Rand ML500KS-2A15-C15U MLK Series Air Chain Hoist | 1/2 Ton Capacity | 15 ft Lift | 15 ft Drop | Steel Snap Hook | Pendent Control

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Ingersoll Rand

Ingersoll Rand ML500KS-2A15-C15U MLK Series Air Chain Hoist | 1/2 Ton Capacity | 15 ft Lift | 15 ft Drop | Steel Snap Hook | Pendent Control

List Price: $7,600.00
$6,703.71
(You save $896.29 )
Availability:
Available To Order From Supplier
SKU:
ML500KS-2A15-C15U
Shipping:
Calculated at Checkout
Weight:
60.0000 LBS
Condition:
New
Adding to cart… The item has been added
Description

Designed for dependable overhead lifting in manufacturing, maintenance, assembly, and material handling applications, the Ingersoll Rand ML500KS-2A15-C15U Air Chain Hoist combines a 1/2 Ton (1,100 lb / 500 kg) capacity with a 15 ft lift and 15 ft pendent drop for efficient overhead load handling. Part of the MLK Series, this pneumatic chain hoist features a six-vane air motor engineered for continuous 100% duty-cycle operation, delivering reliable lifting performance in demanding industrial environments. The responsive 2-button pendent control enables smooth load positioning, while the steel snap hook with safety latch provides secure load engagement.

Engineered for reliable industrial service, the ML500KS-2A15-C15U features a spring-engaged, air-release non-asbestos disc brake that automatically secures suspended loads whenever the controls are released. Upper and lower limit stops help prevent excessive chain travel, and the compact hook-mounted configuration minimizes installation headroom requirements. An integrated fabric chain container keeps excess load chain neatly contained, making this model well suited for production facilities, maintenance shops, assembly operations, and industrial workstations requiring extended lifting height.

Type: Air Chain Hoist | Series: MLK Series | Model: ML500KS-2A15-C15U | Capacity: 1/2 Ton (1,100 lb / 500 kg) | Lift: 15 ft | Pendent Drop: 15 ft | Control Type: 2-Button Pendent Control | Top Suspension: Top Hook | Bottom Hook: Steel Snap Hook with Safety Latch | Chain Container: Fabric Chain Container | Chain Falls: 1 | Load Chain Size: 4 × 12 mm | Air Inlet: 1/4 in. NPT | Operating Pressure: 70–100 PSI | Duty Cycle: 100%

Features:

  • Six-vane air motor provides continuous 100% duty cycle operation.
  • Spring-engaged, air-release non-asbestos disc brake securely holds suspended loads.

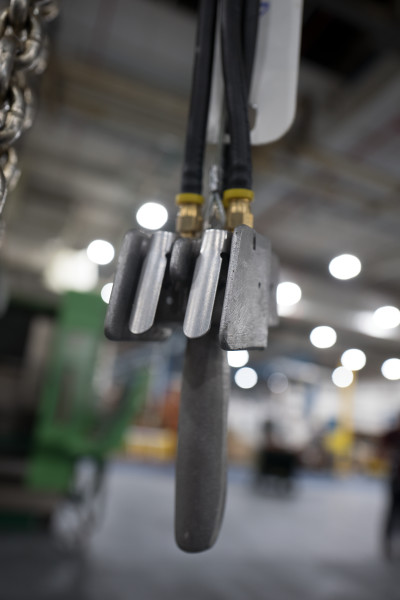

  • Responsive 2-button pendent control enables smooth and accurate lifting and lowering.
  • Upper and lower limit stops help prevent excessive chain travel during operation.
  • Steel snap hook with integrated safety latch provides secure load attachment.
  • Fabric chain container stores excess load chain for improved workplace organization.
  • Single-fall load chain configuration supports the rated 1/2 ton lifting capacity.
  • Meets ASME B30.16, ASME HST-5 Duty Rating A5, and FEM/ISO Classification 1Am/M4.

Applications:

  • Manufacturing and production facilities.
  • Maintenance departments servicing industrial equipment.
  • Assembly operations requiring accurate overhead load positioning.
  • Machine shops and fabrication facilities.
  • General industrial material handling using compressed air-powered lifting equipment.

FAQs:

  • Q: What is the lifting capacity of this hoist?
    A: The ML500KS-2A15-C15U is rated to lift up to 1/2 ton (1,100 lb / 500 kg).
  • Q: How many chain falls does this hoist use?
    A: This ML500KS model utilizes a single-fall (1-fall) load chain configuration designed for its rated 1/2 ton capacity.
  • Q: Does this model include a chain container?
    A: Yes. This configuration includes a fabric chain container for managing excess load chain.
  • Q: What air pressure is recommended?
    A: The hoist is designed to operate on clean, dry compressed air between 70 and 100 PSI.
  • Q: Is this hoist suitable for continuous operation?
    A: Yes. Its six-vane pneumatic motor is designed for a continuous 100% duty cycle.



industrial-tools-parts-breakdown.pngLooking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog.

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!

Specifications
Type:
Air Chain Hoist
Series:
MLK Series
Capacity (tons):
1/2
Capacity (lbs):
1100
Lift (ft.):
15
Drop (ft.):
15
Control:
Pendent Control
Top Suspension:
Swivel Top Hook
Bottom Suspension:
Steel Snap Hook
Chain Falls:
1
Hook Mount Headroom (in.):
18
Trolley Mount Headroom (in.):
18
Lifting Speed Rated Load (ft/min):
22
Lifting Speed Rated Load (m/min):
6.7
Lifting Speed No Load (ft/min):
44
Lifting Speed No Load (m/min):
13.4
Lowering Speed Rated Load (ft/min):
66
Lowering Speed Rated Load (m/min):
20.1
Lowering Speed No Load (ft/min):
32
Lowering Speed No Load (m/min):
9.8
Chain Size:
6.4 x 19.5
Warranty Information
One year warranty against manufacturers defects.
