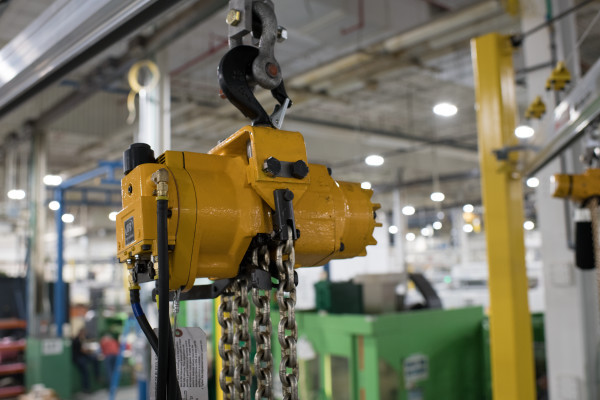

Ingersoll Rand ML500K-2DA10-C6U MLK Series Air Chain Hoist | 1/2 Ton Capacity | 10 ft Lift | 6 ft Drop | Steel Snap Hook | Pendent Control

Designed for dependable overhead lifting in manufacturing, maintenance, assembly, and material handling applications, Ingersoll Rand ML500K-2DA10-C6U Air Chain Hoist combines a 1/2 Ton (1,100 lb / 500 kg) rated capacity, 10 ft lift, and 6 ft pendent drop to deliver smooth, precise load positioning. As part of the MLK Series, this pneumatic chain hoist is powered by a high-performance six-vane air motor engineered for continuous 100% duty cycle operation. The ergonomic 2-button pendent control provides responsive lifting and lowering, while the steel snap hook with safety latch ensures secure load engagement. The U configuration includes a fabric chain container for organized storage of excess load chain during operation.

Engineered for demanding industrial environments, this hoist features a spring-engaged, air-release non-asbestos disc brake that automatically secures suspended loads whenever the controls are released. Upper and lower limit stops help prevent excessive chain travel, while the compact hook-mounted construction minimizes installation headroom.

Type: Air Chain Hoist | Series: MLK Series | Model: ML500K-2DA10-C6U | Capacity: 1/2 Ton (1,100 lb / 500 kg) | Lift: 10 ft | Pendent Drop: 6 ft | Control Type: 2-Button Pendent Control | Top Suspension: Top Hook | Bottom Hook: Steel Snap Hook with Safety Latch | Chain Container: Fabric Chain Container | Chain Falls: 1 | Load Chain Size: 6.4 × 19.5 mm | Headroom: 18 in (457.2 mm) | Lifting Speed: 55 ft/min | Lowering Speed: 97 ft/min | Air Inlet: 1/4 in. NPT | Operating Pressure: 90 PSI (6.3 bar) | Duty Cycle: 100%

Features:

• High-performance six-vane pneumatic motor provides continuous 100% duty cycle operation.

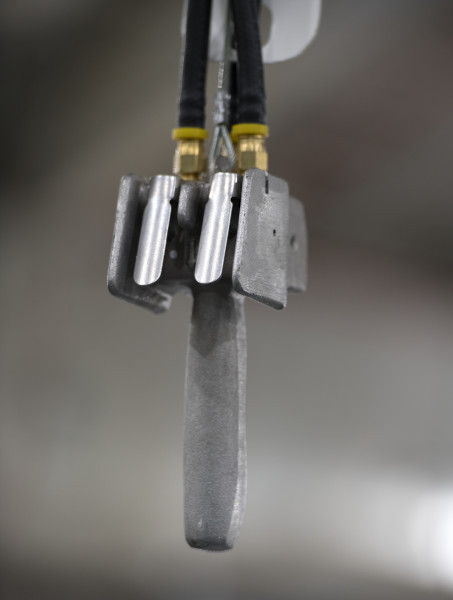

• Responsive 2-button pendent control enables smooth and precise lifting and lowering.
• Spring-engaged, air-release non-asbestos disc brake automatically secures suspended loads.
• Single-fall load chain configuration delivers efficient lifting performance.
• Steel snap hook with safety latch provides dependable load attachment.
• Fabric chain container keeps excess load chain organized and protected during operation.
• Upper and lower limit stops help prevent excessive chain travel.
• Compact hook-mounted construction minimizes installation headroom.
• Designed to meet ASME B30.16, ASME HST-5 Duty Rating A5, and FEM/ISO Classification 1Am/M4.

Applications:

• Manufacturing and production facilities.
• Industrial maintenance and repair operations.
• Machine shops and fabrication plants.
• Assembly workstations requiring controlled overhead lifting.
• General compressed air-powered material handling applications.

FAQs:

• Q: What is the lifting capacity of this hoist?
  A: The ML500K-2DA10-C6U is rated to lift up to 1/2 Ton (1,100 lb / 500 kg).
• Q: How many chain falls does this hoist use?
  A: According to the Ingersoll Rand manufacturer catalog, this model utilizes a single-fall (1-fall) load chain configuration.
• Q: What size load chain is used?
  A: The manufacturer specifies a 6.4 × 19.5 mm load chain.
• Q: Does this model include a chain container?
  A: Yes. The "U" configuration includes a fabric chain container for collecting and managing excess load chain.
• Q: What operating air pressure is required?
  A: The hoist is designed to operate using clean, dry compressed air at 90 PSI (6.3 bar).
