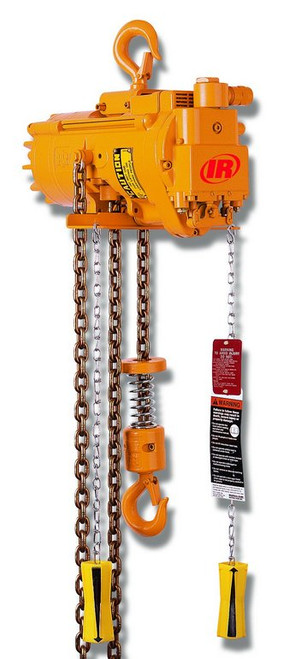

Ingersoll Rand ML500K-2C15-C11S MLK Series Air Chain Hoist | 1/2 Ton Capacity | 15 ft Lift | 11 Drop | Steel Snap Hook | Pendent Control

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Ingersoll Rand

Ingersoll Rand ML500K-2C15-C11S MLK Series Air Chain Hoist | 1/2 Ton Capacity | 15 ft Lift | 11 ft Drop | Steel Snap Hook | Pendent Control

List Price: $7,600.00
$6,703.71
(You save $896.29 )
Availability:
Available To Order From Supplier
SKU:
ML500K-2C15-C11S
Shipping:
Calculated at Checkout
Weight:
90.0000 LBS
Condition:
New
Adding to cart… The item has been added
Description


Ingersoll Rand ML500K-2C15-C11S MLK Series Air Chain Hoist is engineered for dependable overhead lifting in manufacturing, maintenance, assembly, and material handling applications. With a 1/2 Ton (1,100 lb / 500 kg) rated capacity, 15 ft lift, and 11 ft pendent drop, this pneumatic chain hoist delivers smooth, precise load control while utilizing compressed air for continuous-duty operation. The ergonomic 2-button pendent control enables accurate lifting and lowering, while the steel snap hook with safety latch provides secure load engagement. According to the Ingersoll Rand 7756 Industrial Lifting Equipment Catalog, the S configuration is supplied without a chain container.

Powered by a high-efficiency six-vane air motor, the ML500K-2C15-C11S is designed for a 100% duty cycle in demanding industrial environments. A spring-engaged, air-release non-asbestos disc brake automatically holds suspended loads whenever the controls are released, while upper and lower limit stops help prevent excessive chain travel. The compact hook-mounted configuration minimizes installation headroom, and the manufacturer specifies a single-fall load chain arrangement for efficient lifting performance.

Type: Air Chain Hoist | Series: MLK Series | Model: ML500K-2C15-C11S | Capacity: 1/2 Ton (1,100 lb / 500 kg) | Lift: 15 ft | Pendent Drop: 11 ft | Control Type: 2-Button Pendent Control | Top Suspension: Top Hook | Bottom Hook: Steel Snap Hook with Safety Latch | Chain Container: None | Chain Falls: 1 | Load Chain Size: 6.4 × 19.5 mm | Headroom: 18 in (457.2 mm) | Lifting Speed: 55 ft/min | Lowering Speed: 97 ft/min | Air Inlet: 1/4 in. NPT | Operating Pressure: 90 PSI (6.3 bar) | Duty Cycle: 100%

Features:

  • High-performance six-vane pneumatic motor provides continuous 100% duty cycle operation.
  • Ergonomic 2-button pendent control enables smooth and accurate lifting and lowering.
  • Spring-engaged, air-release non-asbestos disc brake automatically secures suspended loads.
  • Single-fall load chain configuration delivers efficient lifting performance.
  • Steel snap hook with safety latch provides dependable load attachment.
  • Upper and lower limit stops help prevent excessive chain travel.
  • Compact hook-mounted construction minimizes installation headroom.
  • Designed to meet ASME B30.16, ASME HST-5 Duty Rating A5, and FEM/ISO Classification 1Am/M4.

Applications:

  • Manufacturing and production facilities.
  • Industrial maintenance and repair departments.
  • Machine shops and fabrication operations.
  • Assembly workstations requiring precise overhead lifting.
  • General compressed air-powered material handling applications.

FAQs:

  • Q: What is the lifting capacity of this hoist?
    A: The ML500K-2C15-C11S is rated to lift up to 1/2 Ton (1,100 lb / 500 kg).
  • Q: How many chain falls does this model use?
    A: The Ingersoll Rand manufacturer catalog specifies a single-fall (1-fall) load chain configuration.
  • Q: What size load chain does this hoist use?
    A: The manufacturer specifies a 6.4 × 19.5 mm load chain.
  • Q: Does this model include a chain container?
    A: No. According to the manufacturer catalog, the "S" configuration is supplied without a chain container.
  • Q: What operating air pressure is required?
    A: The hoist is designed to operate using clean, dry compressed air at 90 PSI (6.3 bar).



industrial-tools-parts-breakdown.pngLooking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!

Specifications
Type:
Air Chain Hoist
Series:
MLK Series
Capacity (tons):
1/2
Capacity (lbs):
1100
Lift (ft.):
15
Drop (ft.):
11
Control:
Pendent Control
Top Suspension:
Swivel Top Hook
Bottom Suspension:
Steel Snap Hook
Chain Falls:
1
Hook Mount Headroom (in.):
18
Trolley Mount Headroom (in.):
18
Lifting Speed Rated Load (ft/min):
55
Lifting Speed Rated Load (m/min):
16.8
Lifting Speed No Load (ft/min):
106
Lifting Speed No Load (m/min):
32.3
Lowering Speed Rated Load (ft/min):
97
Lowering Speed Rated Load (m/min):
29.6
Lowering Speed No Load (ft/min):
59
Lowering Speed No Load (m/min):
18
Chain Size:
6.4 x 19.5
Warranty Information
One year warranty against manufacturers defects.
