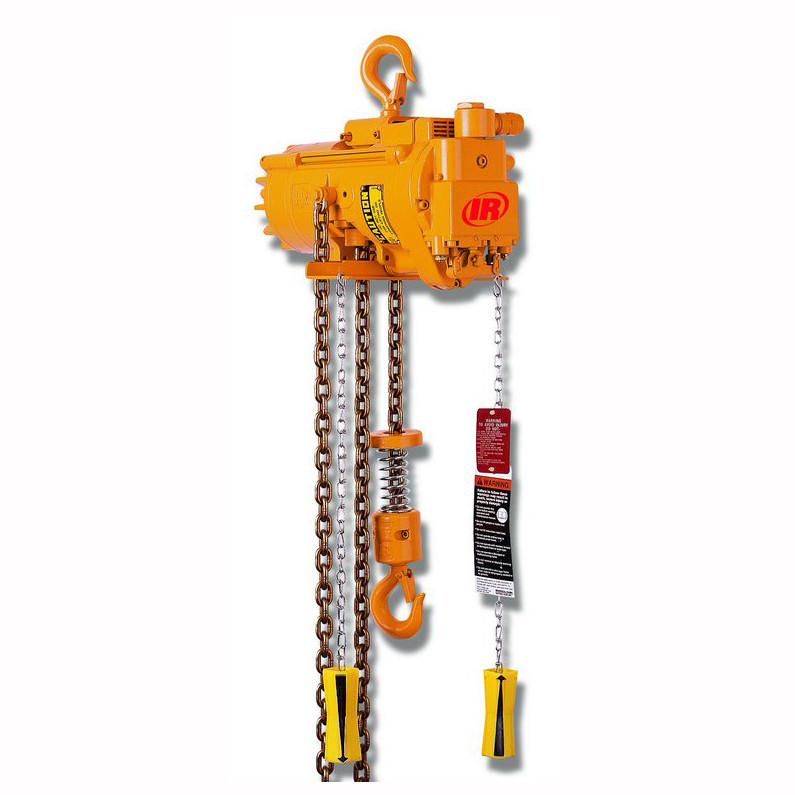

Ingersoll Rand ML500K-2C10-C6U MLK Series Air Chain Hoist | 1/2 Ton Capacity | 10 ft. Lift | Steel Snap Hook | Pendent Control

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Ingersoll Rand

Ingersoll Rand ML500K-2C10-C6U MLK Series Air Chain Hoist | 1/2 Ton Capacity | 10 ft Lift | 6 ft Drop | Steel Snap Hook | Pendent Control

List Price: $7,100.00
$6,262.67
(You save $837.33 )
Availability:
Available To Order From Supplier
SKU:
ML500K-2C10-C6U
Shipping:
Calculated at Checkout
Weight:
90.0000 LBS
Condition:
New
Adding to cart… The item has been added
Description


Designed for reliable overhead lifting in manufacturing, maintenance, assembly, and material handling applications, the Ingersoll Rand ML500K-2C10-C6U Air Chain Hoist combines a 1/2-ton (1,100 lb / 500 kg) capacity with a 10-ft lift and a 6-ft pendant drop for efficient and precise load handling. Part of the MLK Series, this pneumatic chain hoist features a high-performance six-vane air motor designed for continuous 100% duty cycle operation. The ergonomic 2-button pendent control allows smooth lifting and lowering, while the steel snap hook with safety latch provides dependable load attachment. This configuration includes a fabric chain container for safe management of excess load chain.

Engineered for demanding industrial environments, the ML500K-2C10-C6U incorporates a spring-engaged, air-release non-asbestos disc brake that automatically holds the load whenever the control is released. Upper and lower limit stops help prevent over-travel of the load chain, while the compact hook suspension design minimizes required installation headroom. The single-fall lifting arrangement delivers efficient lifting performance while maintaining a compact overall design.

Type: Air Chain Hoist | Series: MLK Series | Model: ML500K-2C10-C6U | Capacity: 1/2 Ton (1,100 lb / 500 kg) | Lift: 10 ft | Pendent Drop: 6 ft | Control Type: 2-Button Pendent Control | Top Suspension: Top Hook | Bottom Hook: Steel Snap Hook | Chain Container: Fabric Chain Container | Chain Falls: 1 | Load Chain Size: 6.4 × 19.5 mm | Headroom: 18 in (457.2 mm) | Lifting Speed: 55 ft/min | Lowering Speed: 97 ft/min | Air Inlet: 1/4 in. NPT | Operating Pressure: 90 PSI (6.3 bar) | Net Weight: 48 lb (21.8 kg) | Duty Cycle: 100%

Features:

  • Six-vane pneumatic motor provides continuous 100% duty cycle performance.
  • Spring-engaged, air-release non-asbestos disc brake automatically secures suspended loads.

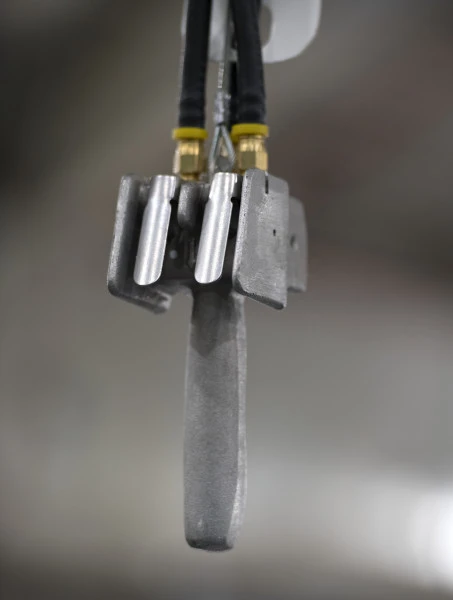

  • Responsive 2-button pendent control allows smooth and accurate lifting and lowering.
  • Single-fall load chain configuration provides efficient lifting with a compact hoist design.
  • Steel snap hook provides dependable load attachment.
  • Fabric chain container keeps excess load chain safely contained during operation.
  • Upper and lower limit stops help prevent excessive chain travel.
  • Compact hook suspension minimizes installation headroom.
  • Meets ASME B30.16, ASME HST-5 Duty Rating A5, and FEM/ISO Classification 1Am/M4.

Applications:

  • Manufacturing and production facilities.
  • Machine shops and fabrication operations.
  • Industrial maintenance departments.
  • Assembly stations requiring precise overhead positioning.
  • General compressed air-powered material handling applications.

FAQs:

  • Q: What is the lifting capacity of this hoist?
    A: The ML500K-2C10-C6U is rated for 1/2 Ton (1,100 lb / 500 kg).
  • Q: How many chain falls does this model use?
    A: According to the Ingersoll Rand manufacturer catalog, this ML500K model utilizes a single-fall (1-fall) load chain configuration.
  • Q: What size load chain does this hoist use?
    A: The manufacturer specifies a 6.4 × 19.5 mm load chain.
  • Q: Does this model include a chain container?
    A: Yes. The "U" configuration includes a fabric chain container for managing excess load chain.
  • Q: What operating air pressure is required?
    A: The hoist is designed to operate using clean, dry compressed air at 90 PSI (6.3 bar).



industrial-tools-parts-breakdown.pngLooking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!

Specifications
Type:
Air Chain Hoist
Series:
MLK Series
Capacity (tons):
1/2
Capacity (lbs):
1100
Lift (ft.):
10
Drop (ft.):
6
Control:
Pendent Control
Top Suspension:
Swivel Top Hook
Bottom Suspension:
Steel Snap Hook
Chain Falls:
1
Hook Mount Headroom (in.):
18
Trolley Mount Headroom (in.):
18
Lifting Speed Rated Load (ft/min):
55
Lifting Speed Rated Load (m/min):
16.8
Lifting Speed No Load (ft/min):
106
Lifting Speed No Load (m/min):
32.3
Lowering Speed Rated Load (ft/min):
97
Lowering Speed Rated Load (m/min):
29.6
Lowering Speed No Load (ft/min):
59
Lowering Speed No Load (m/min):
18
Chain Size:
6.4 x 19.5
Warranty Information
One year warranty against manufacturers defects.
