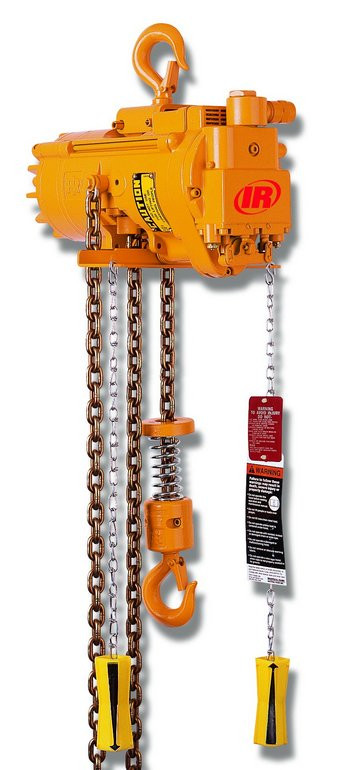

Ingersoll Rand ML250K-2C15-B6S MLK Series Air Chain Hoist | 1/4 Ton Capacity | 15 ft Lift | 6 ft Drop | Bullard Self-Closing Hook | Pendent Control

Designed for dependable overhead lifting in manufacturing, maintenance, assembly, and material handling applications, the Ingersoll Rand ML250K-2C15-B6S Air Chain Hoist combines a 1/4 Ton (550 lb / 250 kg) capacity with a 15 ft lift and 6 ft pendent drop for efficient load handling. Part of the MLK Series, this pneumatic chain hoist features a six-vane air motor engineered for continuous 100% duty-cycle operation, delivering reliable lifting performance throughout demanding industrial shifts. The responsive 2-button pendent control enables smooth and accurate load positioning, while the Bullard self-closing bottom hook provides enhanced load security during lifting operations.

Engineered for reliable industrial service, the ML250K-2C15-B6S features a spring-engaged, air-release non-asbestos disc brake that automatically secures suspended loads whenever the controls are released. Upper and lower limit stops help prevent excessive chain travel, while the compact hook-mounted configuration minimizes installation headroom requirements. Supplied without a chain container, this hoist is well suited for production facilities, maintenance departments, fabrication shops, and industrial assembly workstations requiring dependable pneumatic lifting performance.

Type: Air Chain Hoist | Series: MLK Series | Capacity: 1/4 Ton (550 lb / 250 kg) | Lift: 15 ft | Pendent Drop: 6 ft | Control Type: 2-Button Pendent Control | Top Suspension: Top Hook | Bottom Hook: Bullard Self-Closing Hook | Chain Container: None | Chain Falls: 1 | Load Chain Size: 4 × 12 mm | Air Inlet: 1/4 in. NPT | Operating Pressure: 70–100 PSI | Duty Cycle: 100%

Features:

• Six-vane air motor provides continuous 100% duty cycle performance.
• Spring-engaged, air-release non-asbestos disc brake securely holds suspended loads.
• Full-flow 2-button pendent control enables smooth and precise lifting and lowering.
• Upper and lower limit stops help prevent excessive chain travel during operation.
• Bullard self-closing bottom hook enhances load retention during lifting.
• Single-fall load chain configuration supports the rated 1/4 ton lifting capacity.
• Compact hook-mounted design minimizes installation headroom requirements.
• Meets ASME B30.16, ASME HST-5 Duty Rating A5, and FEM/ISO Classification 1Am/M4.

Applications:

• Manufacturing and production facilities requiring continuous-duty pneumatic lifting.
• Maintenance departments handling motors, pumps, tooling, and machinery components.
• Machine shops and fabrication facilities lifting fixtures and fabricated parts.
• Industrial assembly stations requiring accurate overhead load positioning.
• Material handling applications where a self-closing bottom hook is preferred for added load security.

FAQs:

• Q: What is the lifting capacity of this hoist?
  A: The ML250K-2C15-B6S is rated to lift up to 1/4 ton (550 lb / 250 kg).
• Q: What type of bottom hook is included?
  A: This model is equipped with a Bullard self-closing bottom hook for enhanced load security.
• Q: How many chain falls does this model use?
  A: This ML250K model utilizes a single-fall (1-fall) load chain configuration designed for its rated capacity.
• Q: Does this model include a chain container?
  A: No. This version is supplied without a chain container.
• Q: Is this hoist suitable for continuous-duty operation?
  A: Yes. The six-vane pneumatic motor is designed for a 100% duty cycle, making it suitable for demanding industrial lifting applications.

Looking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog.

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
