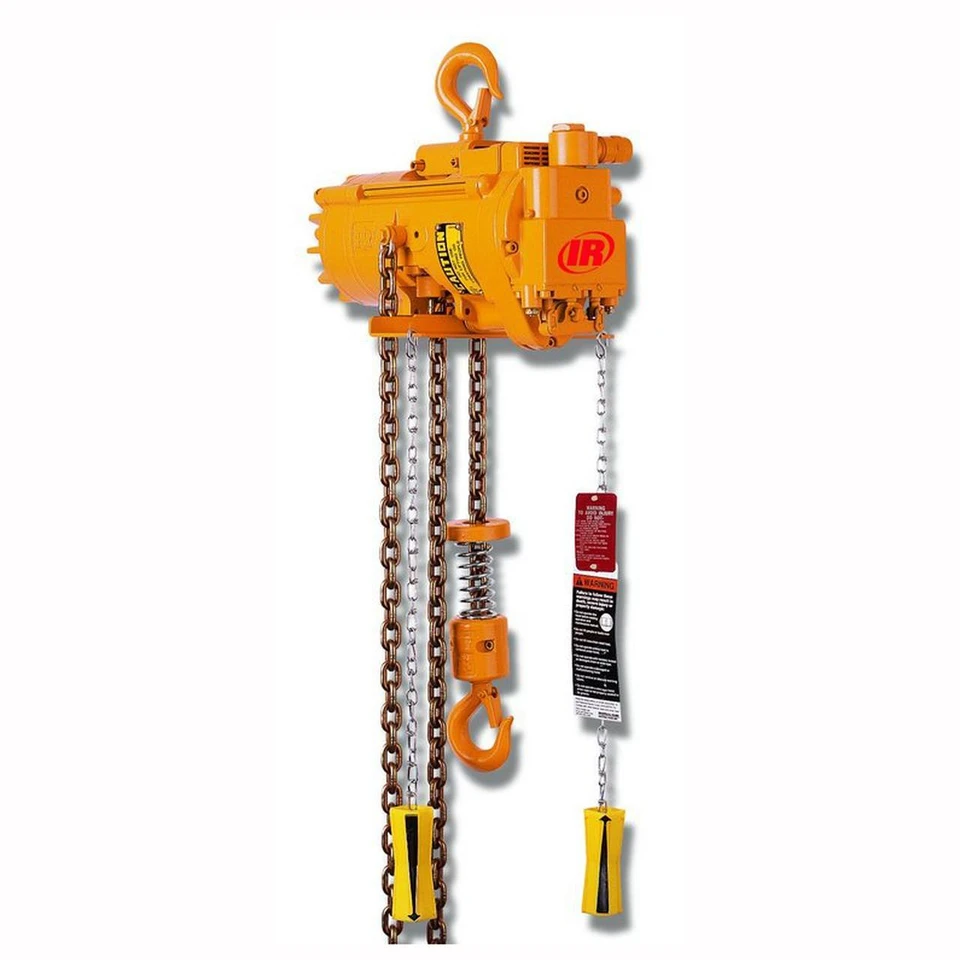

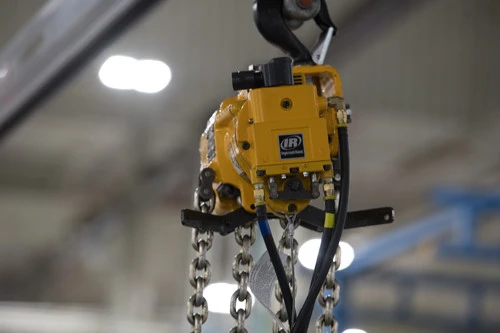

Ingersoll Rand ML250K-2C10-C6U MLK Series Air Chain Hoist | 1/4 Ton Capacity | 10 ft. Lift | Steel Snap Hook | Pendent Control

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Ingersoll Rand

Ingersoll Rand ML250K-2C10-C6U MLK Series Air Chain Hoist | 1/4 Ton Capacity | 10 ft Lift | 6 ft Drop | Steel Snap Hook | Pendent Control

List Price: $7,150.00
$6,306.78
(You save $843.22 )
Availability:
Available To Order From Supplier
SKU:
ML250K-2C10-C6U
Shipping:
Calculated at Checkout
Weight:
90.0000 LBS
Condition:
New
Adding to cart… The item has been added
Description

Built for fast, precise lifting in assembly operations, maintenance departments, manufacturing facilities, and general industrial environments, the Ingersoll Rand ML250K-2C10-C6U MLK Series Air Chain Hoist provides a 550 lb (250 kg / 0.25 metric ton) lifting capacity with a 10 ft lift and 6 ft pendant drop. Its pneumatic drive delivers smooth, responsive operation using compressed air, making it an excellent solution for repetitive lifting applications where speed, reliability, and continuous-duty performance are essential.

Part of the Ingersoll Rand MLK Series, this air chain hoist features a compact design with a high lifting speed, making it well suited for production workstations, equipment maintenance, and material handling tasks. A planetary gear transmission provides efficient power transfer, while the self-adjusting, spring-applied, air-released disc brake securely holds suspended loads whenever air pressure is removed. The steel snap hook and pendant control allow safe, accurate load positioning throughout the lifting cycle.

Type: Air Chain Hoist | Series: MLK Series | Model: ML250K-2C10-C6U | Capacity: 550 lb (250 kg / 0.25 Metric Ton) | Lift: 10 ft | Pendant Drop: 6 ft | Control: Pendant Control | Bottom Hook: Steel Snap Hook | Chain Falls: 1 | Rated Lift Speed: 101 ft/min (30.8 m/min) | No-Load Lift Speed: 171 ft/min (52.1 m/min) | Rated Lowering Speed: 117 ft/min (35.7 m/min) | No-Load Lowering Speed: 99 ft/min (30.2 m/min) | Hook Mount Headroom: 18 in (457.2 mm) | Trolley Mount Headroom: 18 in (457.2 mm) | Load Chain Size: 6.4 × 19.5 mm | Chain Weight: 0.6 lb/ft (0.3 kg/ft) | Net Weight (10 ft Lift): 48 lb (21.8 kg)

Features:

  • 550 lb (250 kg / 0.25 metric ton) lifting capacity for handling tools, components, assemblies, and light industrial equipment.
  • High rated lifting speed of 101 ft/min increases productivity during repetitive lifting operations.
  • 100% duty cycle supports continuous operation in demanding production environments.
  • Planetary gear transmission delivers smooth lifting performance with efficient power transfer.
  • Self-adjusting, spring-applied, air-released disc brake securely holds suspended loads during operation.
  • Steel snap hook provides a durable attachment point for dependable load handling.
  • Pendant control enables accurate raising and lowering for precise load positioning.
  • Compact modular design with interchangeable components simplifies maintenance and reduces downtime.

Applications:

  • Assembly workstations requiring fast, repetitive lifting of components and subassemblies.
  • Manufacturing facilities handling small equipment, fixtures, and tooling.
  • Maintenance departments lifting pumps, motors, valves, and replacement parts.
  • Material handling in warehouses and production lines utilizing compressed-air systems.
  • General industrial lifting where compact size and rapid lifting speeds improve productivity.

FAQs:

  • Q: What is the actual lifting capacity of the ML250K?
    A: The ML250K is rated by Ingersoll Rand at 550 lb (250 kg / 0.25 metric ton). While some listings describe it as a 1/4-ton hoist, the manufacturer specifies the capacity as 250 kg (550 lb).
  • Q: How fast does this hoist lift a rated load?
    A: The rated lifting speed is 101 ft/min (30.8 m/min), allowing quick handling of light loads in production environments.
  • Q: What does the 6 ft pendant drop mean?
    A: The pendant control extends approximately 6 feet below the hoist, allowing the operator to comfortably control lifting and lowering operations.
  • Q: Is this hoist suitable for continuous-duty operation?
    A: Yes. The MLK Series is designed for a 100% duty cycle, making it suitable for repetitive industrial lifting applications.



industrial-tools-parts-breakdown.pngLooking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!

Specifications
Type:
Air Chain Hoist
Series:
MLK Series
Capacity (tons):
1/4
Capacity (lbs):
550
Lift (ft.):
10
Drop (ft.):
6
Control:
Pendent Control
Top Suspension:
Swivel Top Hook
Bottom Suspension:
Steel Snap Hook
Chain Falls:
1
Hook Mount Headroom (in.):
18
Trolley Mount Headroom (in.):
18
Lifting Speed Rated Load (ft/min):
101
Lifting Speed Rated Load (m/min):
30.8
Lifting Speed No Load (ft/min):
171
Lifting Speed No Load (m/min):
52.1
Lowering Speed Rated Load (ft/min):
117
Lowering Speed Rated Load (m/min):
35.7
Lowering Speed No Load (ft/min):
99
Lowering Speed No Load (m/min):
30.2
Chain Size:
6.4 x 19.5
Warranty Information
One year warranty against manufacturers defects.
