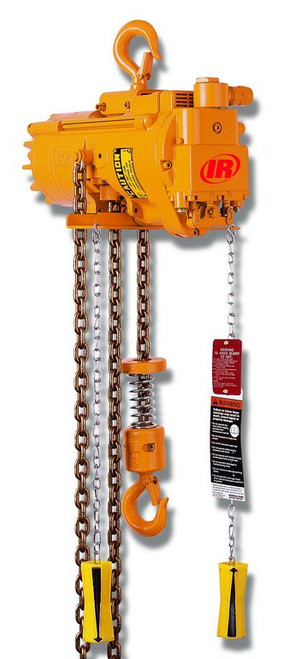

Ingersoll Rand ML1000KS-1B15-B11S MLK Series Air Chain Hoist | 1 Ton Capacity | 15 ft Lift | 11 ft Drop | Bullard Self-Closing Hook | Pull Chain Control

Ingersoll Rand ML1000KS-1B15-B11S MLK Series Air Chain Hoist is a slow-speed spotting pneumatic hoist engineered for applications requiring exceptional precision during lifting and positioning. With a 1 Ton (2,200 lb) lifting capacity, 15 ft lift, and 11 ft pull chain control drop, this model is well suited for machinery installation, equipment maintenance, precision assembly, and production operations where careful load placement is essential. The manual pull chain control allows the operator to actuate the hoist directly without a pendant station.

Built on the proven MLK Series platform, the ML1000KS utilizes a reduced lifting speed for improved spotting accuracy while maintaining a 100% duty cycle for continuous industrial service. Its self-adjusting air-operated disc brake, enclosed planetary gearing, anti-friction bearings, and modular internal components help deliver reliable operation while simplifying routine maintenance. This model is equipped with Bullard self-closing hooks for enhanced load retention during lifting operations.

Type: Air Chain Hoist | Series: MLK Series (Slow-Speed Spotting) | Capacity: 1 Ton (2,200 lbs) | Lift: 15 ft | Control Drop: 11 ft | Control Type: Pull Chain Control | Top Suspension: Bullard Self-Closing Hook | Bottom Suspension: Bullard Self-Closing Hook | Chain Falls: 2 | Hook Mount Headroom: 18 in. | Trolley Mount Headroom: 18 in. | Lifting Speed (Rated Load): 11 ft/min (3.4 m/min) | Lifting Speed (No Load): 22 ft/min (6.7 m/min) | Lowering Speed (Rated Load): 33 ft/min (10.1 m/min) | Lowering Speed (No Load): 16 ft/min (4.9 m/min) | Chain Size: 6.4 × 19.5

Features:

• Slow-speed spotting configuration provides exceptional precision during lifting and load placement.
• 100% duty cycle supports continuous industrial operation in demanding applications.
• Manual pull chain control offers dependable operation without requiring a pendant control station.
• Bullard self-closing hooks provide enhanced load security during lifting operations.
• Self-adjusting, spring-applied, air-released disc brake securely holds suspended loads.
• Planetary gear transmission evenly distributes gear loading for improved durability and smooth performance.
• Ball and roller bearings support rotating components for reliable, low-friction operation.
• Modular motor, brake, and throttle assemblies simplify maintenance and reduce service time.

Applications:

• Precision machinery installation and alignment.
• Manufacturing and assembly operations requiring accurate load positioning.
• Maintenance and repair of industrial equipment.
• Handling dies, fixtures, tooling, and production components.
• Industrial applications where slow, controlled lifting improves positioning accuracy.

FAQs:

• Q: What does the "KS" designation mean?
  A: The KS model is the slow-speed spotting version of the MLK Series, designed for applications requiring precise load control.
• Q: What is the advantage of Bullard self-closing hooks?
  A: Bullard self-closing hooks automatically close after attachment, providing increased load retention compared to standard snap hooks.
• Q: How is pull chain control different from pendent control?
  A: Pull chain control allows the operator to actuate the hoist mechanically using the control chain rather than a pneumatic pendant.
• Q: What is the maximum lifting capacity?
  A: The ML1000KS-1B15-B11S is rated to lift loads up to 1 Ton (2,200 lbs) when operated within the manufacturer's specified limits.
