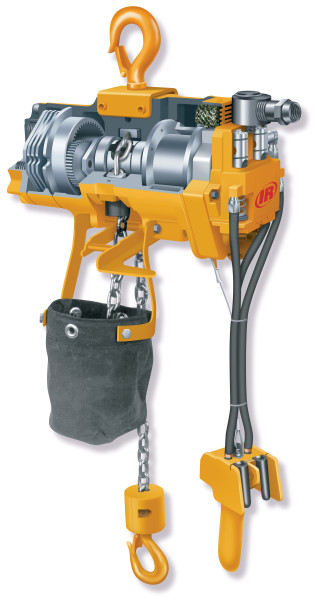

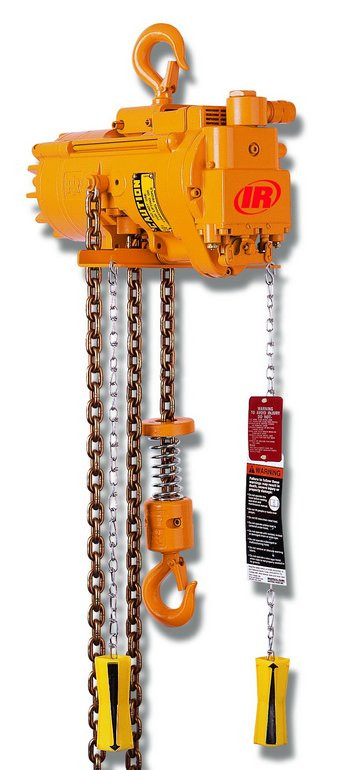

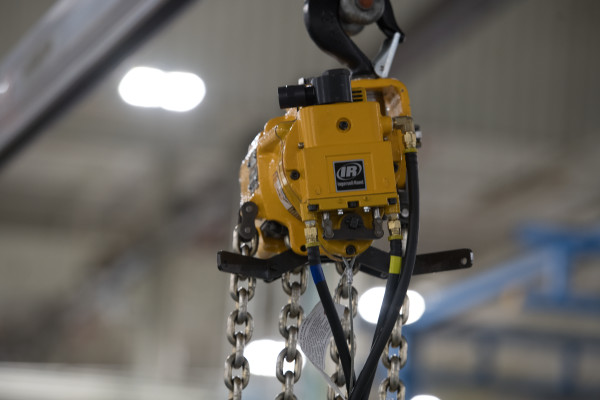

Ingersoll Rand ML1000K-2C40-C12S MLK Series Air Chain Hoist | 1 Ton Capacity | 40 ft Lift | 12 ft Drop | Steel Snap Hook | Pendent Control

Designed for continuous lifting in manufacturing, maintenance, fabrication, and material handling operations, the Ingersoll Rand ML1000K-2C40-C12S MLK Series Air Chain Hoist delivers a 1 Ton (2,200 lb) lifting capacity with a 40 ft lift and 12 ft pendant control drop. Powered by compressed air, this hoist features a pilot pendent control (a suspended hand control that enables smooth and precise load positioning), allowing operators to accurately raise, lower, and position loads during repetitive industrial lifting tasks.

Built on the proven MLK Series platform, this air chain hoist is engineered for continuous-duty industrial service with interchangeable internal components that simplify maintenance and reduce downtime. A 100% duty cycle, self-adjusting air-operated disc brake, enclosed planetary gearing, and anti-friction bearings work together to provide dependable lifting performance. The hook-mounted suspension and steel snap hook provide flexible installation across cranes, monorails, and overhead lifting systems.

Type: Air Chain Hoist | Series: MLK Series | Capacity: 1 Ton (2,200 lbs) | Lift: 40 ft | Pendant Drop: 12 ft | Control Type: Pendent Control | Top Suspension: Hook Mount | Bottom Suspension: Steel Snap Hook | Chain Falls: 2 | Hook Mount Headroom: 18 in. | Trolley Mount Headroom: 18 in. | Lifting Speed (Rated Load): 28 ft/min (8.5 m/min) | Lifting Speed (No Load): 53 ft/min (16.2 m/min) | Lowering Speed (Rated Load): 49 ft/min (14.9 m/min) | Lowering Speed (No Load): 30 ft/min (9.1 m/min) | Chain Size: 6.4 × 19.5

Features:

• 100% duty cycle with HMI Duty Classification A5 and FEM 9.511 Duty Classification 2m for continuous industrial operation.
• Pilot pendent control provides smooth, responsive load positioning for repetitive lifting applications.
• 40 ft lifting height supports overhead lifting applications requiring extended vertical travel.
• Self-adjusting, spring-applied, air-released disc brake securely holds suspended loads throughout lifting and lowering operations.
• Planetary gear transmission distributes loads evenly across multiple gear teeth to improve durability and operating efficiency.
• Ball and roller bearings support rotating components for smooth, dependable lifting performance.
• Interchangeable motor, brake, and throttle assemblies simplify maintenance and help reduce service downtime.
• Integrated inlet swivel, exhaust chain lubrication, and accessible control adjustments facilitate routine servicing.

Applications:

• Continuous-duty lifting in manufacturing, fabrication, and production facilities.
• Supporting equipment installation, maintenance, and repair operations.
• Handling fabricated steel components, tooling, dies, and industrial assemblies.
• Overhead lifting on cranes and monorails with extended lifting requirements.
• General industrial material handling requiring precise pneumatic load positioning.

FAQs:

• Q: What is the advantage of the 40 ft lift?
  A: The extended lifting height makes this hoist suitable for facilities with high ceilings, elevated workstations, and applications requiring significant vertical travel.
• Q: Why does this model have a 12 ft pendant drop?
  A: The 12 ft pendant drop allows operators to comfortably control the hoist from floor level when it is installed on elevated crane beams, monorails, or overhead support structures.
• Q: Is this hoist suitable for continuous-duty industrial use?
  A: Yes. The MLK Series features a 100% duty cycle, making it suitable for continuous lifting applications within its rated capacity.
• Q: What is the maximum lifting capacity?
  A: The ML1000K-2C40-C12S is rated to safely lift loads up to 1 Ton (2,200 lbs) when operated according to the manufacturer's recommendations.

Looking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog.

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
