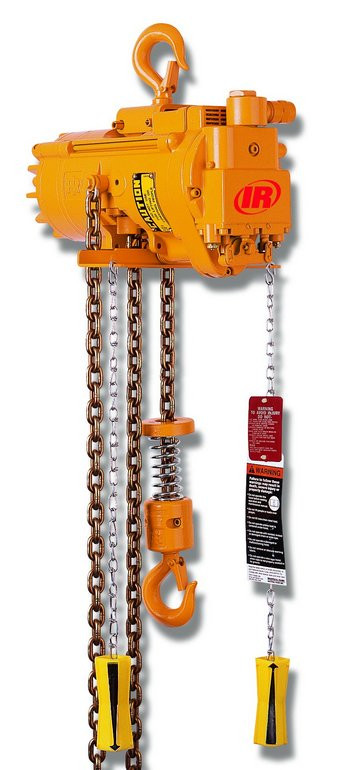

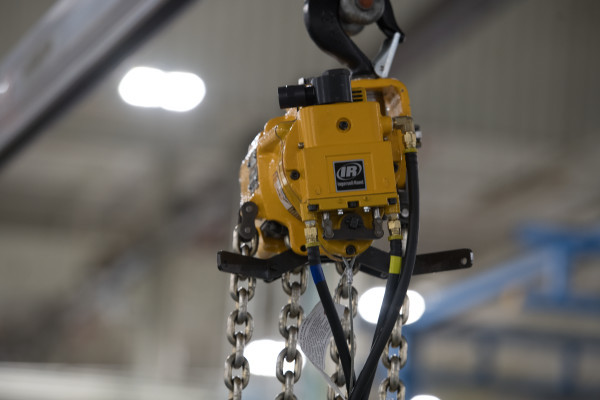

Ingersoll Rand ML1000K-2C15-C11U MLK Series Air Chain Hoist | 1 Ton Capacity | 15 ft Lift | 11 Drop | Steel Snap Hook | Pendent Control

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Ingersoll Rand

Ingersoll Rand ML1000K-2C15-C11U MLK Series Air Chain Hoist | 1 Ton Capacity | 15 ft Lift | 11 ft Drop | Steel Snap Hook | Pendent Control

List Price: $9,050.00
$7,982.70
(You save $1,067.30 )
Availability:
Available To Order From Supplier
SKU:
ML1000K-2C15-C11U
Shipping:
Calculated at Checkout
Weight:
150.0000 LBS
Condition:
New
Adding to cart… The item has been added
Description


Built for continuous lifting in manufacturing, maintenance, fabrication, and material handling operations, the Ingersoll Rand ML1000K-2C15-C11U MLK Series Air Chain Hoist combines a 1 Ton (2,200 lb) lifting capacity with a 15 ft lift and 11 ft pendant control drop to provide dependable overhead lifting in demanding industrial environments. Powered by compressed air, this hoist features a pilot pendent control (a suspended hand control that enables smooth and precise load positioning), allowing operators to accurately raise, lower, and position loads during repetitive lifting applications.

The MLK Series has been trusted in industrial lifting applications for more than 25 years and incorporates a modular design with interchangeable service components that simplify maintenance. A 100% duty cycle supports uninterrupted operation throughout production shifts, while the self-adjusting air-operated disc brake, enclosed planetary gearing, and anti-friction bearings deliver reliable load control and smooth lifting performance. Standard hook suspension and a durable steel snap hook provide versatile installation across a wide range of overhead lifting applications.

Type: Air Chain Hoist | Series: MLK Series | Capacity: 1 Ton (2,200 lbs) | Lift: 15 ft | Pendant Drop: 11 ft | Control Type: Pendent Control | Top Suspension: Hook Mount | Bottom Suspension: Steel Snap Hook | Chain Falls: 2 | Hook Mount Headroom: 18 in. | Trolley Mount Headroom: 18 in. | Lifting Speed (Rated Load): 28 ft/min (8.5 m/min) | Lifting Speed (No Load): 53 ft/min (16.2 m/min) | Lowering Speed (Rated Load): 49 ft/min (14.9 m/min) | Lowering Speed (No Load): 30 ft/min (9.1 m/min) | Chain Size: 6.4 × 19.5

Features:

  • 100% duty cycle with HMI Duty Classification A5 and FEM 9.511 Duty Classification 2m for continuous industrial lifting.
  • Pilot pendent control provides smooth, responsive load positioning during repetitive lifting operations.
  • Self-adjusting, spring-applied, air-released disc brake securely holds suspended loads throughout lifting and lowering cycles.
  • Planetary gear transmission distributes loads across multiple gear teeth to improve durability and operating efficiency.
  • Ball and roller bearings support all rotating components for smooth, dependable lifting performance.
  • Interchangeable motor, brake, and throttle assemblies simplify maintenance and reduce service downtime.
  • Integrated inlet swivel, exhaust chain lubrication, and accessible control adjustments support efficient routine servicing.
  • Optional spark-resistant configurations are available for specialized industrial applications.

Applications:

  • Moving machinery, tooling, and production materials throughout manufacturing facilities.
  • Supporting maintenance and repair operations involving pumps, motors, gearboxes, and industrial equipment.
  • Handling fabricated steel components, dies, molds, and heavy assemblies in fabrication shops.
  • Providing continuous-duty overhead lifting for production lines and assembly workstations.
  • General warehouse and industrial material handling where accurate load positioning is essential.

FAQs:

  • Q: What is the advantage of the 11 ft pendant drop?
    A: The 11 ft pendant drop allows operators to comfortably control the hoist from floor level while maintaining clear visibility of the suspended load during lifting operations.
  • Q: What are the benefits of the pilot pendent control?
    A: The pilot pendent control provides smooth, responsive lifting and lowering, allowing accurate load positioning during repetitive handling operations.
  • Q: Is this hoist suitable for continuous-duty industrial applications?
    A: Yes. The MLK Series is rated for a 100% duty cycle, making it suitable for continuous production and material handling operations within its rated capacity.
  • Q: What is the lifting capacity of this hoist?
    A: The ML1000K-2C15-C11U is rated to safely lift loads up to 1 Ton (2,200 lbs) when operated according to the manufacturer's recommendations.



industrial-tools-parts-breakdown.pngLooking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog.

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!

Specifications
Type:
Air Chain Hoist
Series:
MLK Series
Capacity (tons):
1
Capacity (lbs):
2200
Lift (ft.):
15
Drop (ft.):
11
Control:
Pendent Control
Top Suspension:
Swivel Top Hook
Bottom Suspension:
Steel Snap Hook
Chain Falls:
2
Hook Mount Headroom (in.):
18
Trolley Mount Headroom (in.):
18
Lifting Speed Rated Load (ft/min):
28
Lifting Speed Rated Load (m/min):
8.5
Lifting Speed No Load (ft/min):
53
Lifting Speed No Load (m/min):
16.2
Lowering Speed Rated Load (ft/min):
49
Lowering Speed Rated Load (m/min):
14.9
Lowering Speed No Load (ft/min):
30
Lowering Speed No Load (m/min):
9.1
Chain Size:
6.4 x 19.5
Warranty Information
One year warranty against manufacturers defects.
