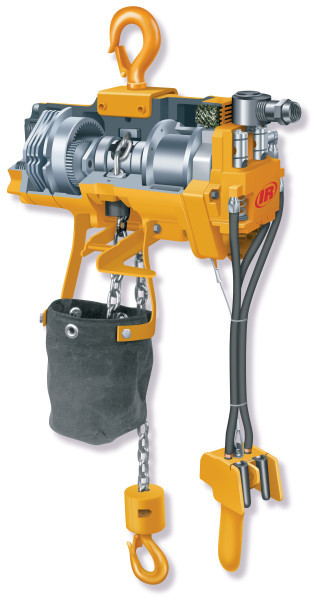

Ingersoll Rand ML1000K-2C12-B8U MLK Series Air Chain Hoist | 1 Ton Capacity | 12 ft Lift | 8 ft Drop | Bullard Self-Closing Hook | Pendent Control

Built for continuous lifting in manufacturing, maintenance, fabrication, and material handling operations, the Ingersoll Rand ML1000K-2C12-B8U MLK Series Air Chain Hoist combines a 1 Ton (2,200 lb) lifting capacity with a 12 ft lift and 8 ft pendant control drop to provide dependable overhead lifting in demanding industrial environments. Powered by compressed air, this hoist features a pilot pendent control (a suspended hand control that enables smooth and precise load positioning), allowing operators to accurately raise, lower, and position loads during repetitive lifting applications. A Bullard self-closing hook provides an added level of load retention by automatically closing after attachment.

The MLK Series has been trusted in industrial lifting applications for more than 25 years and incorporates a modular design with interchangeable service components that simplify maintenance. A 100% duty cycle supports uninterrupted operation throughout production shifts. At the same time, the self-adjusting air-operated disc brake, enclosed planetary gearing, and anti-friction bearings deliver reliable load control and smooth lifting performance. Standard hook suspension and the Bullard self-closing bottom hook provide secure load engagement across a wide variety of overhead lifting applications.

Type: Air Chain Hoist | Series: MLK Series | Capacity: 1 Ton (2,200 lbs) | Lift: 12 ft | Pendant Drop: 8 ft | Control Type: Pendent Control | Top Suspension: Hook Mount | Bottom Suspension: Bullard Self-Closing Hook | Chain Falls: 2 | Hook Mount Headroom: 18 in. | Trolley Mount Headroom: 18 in. | Lifting Speed (Rated Load): 28 ft/min (8.5 m/min) | Lifting Speed (No Load): 53 ft/min (16.2 m/min) | Lowering Speed (Rated Load): 49 ft/min (14.9 m/min) | Lowering Speed (No Load): 30 ft/min (9.1 m/min) | Chain Size: 6.4 × 19.5

Features:

• 100% duty cycle with HMI Duty Classification A5 and FEM 9.511 Duty Classification 2m for continuous industrial lifting.

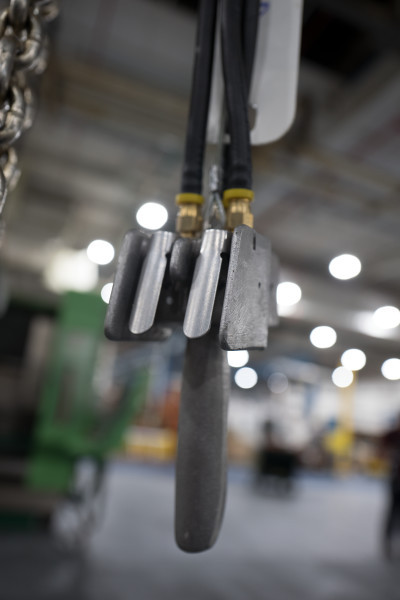

• Pilot pendent control provides smooth, responsive load positioning during repetitive lifting operations.
• Bullard self-closing bottom hook automatically closes after attachment to help improve load retention.
• Self-adjusting, spring-applied, air-released disc brake securely holds suspended loads throughout lifting and lowering cycles.
• Planetary gear transmission distributes loads across multiple gear teeth to improve durability and operating efficiency.
• Ball and roller bearings support all rotating components for smooth, dependable lifting performance.
• Interchangeable motor, brake, and throttle assemblies simplify maintenance and reduce service downtime.
• Integrated inlet swivel, exhaust chain lubrication, and accessible control adjustments support efficient routine servicing.

Applications:

• Moving machinery, tooling, and production materials throughout manufacturing facilities.
• Supporting maintenance and repair operations involving pumps, motors, gearboxes, and industrial equipment.
• Handling fabricated steel components, dies, molds, and heavy assemblies in fabrication shops.
• Providing continuous-duty overhead lifting for production lines and assembly workstations.
• General warehouse and industrial material handling where secure load retention and precise positioning are essential.

FAQs:

• Q: What is the advantage of the Bullard self-closing hook?
  A: The Bullard self-closing hook automatically closes after the load is attached, providing an added level of load security during lifting operations.
• Q: What does the 8 ft pendant drop provide?
  A: The 8 ft pendant drop allows the operator to comfortably control the hoist from below while maintaining good visibility of the suspended load.
• Q: Is this hoist suitable for continuous-duty industrial applications?
  A: Yes. The MLK Series is rated for a 100% duty cycle, making it suitable for continuous production and material handling operations within its rated capacity.
• Q: What is the lifting capacity of this hoist?
  A: The ML1000K-2C12-B8U is rated to safely lift loads up to 1 Ton (2,200 lbs) when operated according to the manufacturer's recommendations.

Looking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog.

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
