Ingersoll Rand ML1000K-2C10-C6U MLK Series Air Chain Hoist | 1 Ton Capacity | 10 ft. Lift | Steel Snap Hook | Pendent Control

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Ingersoll Rand

Ingersoll Rand ML1000K-2C10-C6U MLK Series Air Chain Hoist | 1 Ton Capacity | 10 ft Lift | 6 ft Drop | Steel Snap Hook | Pendent Control

List Price: $8,500.00
$7,497.57
(You save $1,002.43 )
Availability:
Available To Order From Supplier
SKU:
ML1000K-2C10-C6U
Shipping:
Calculated at Checkout
Weight:
150.0000 LBS
Condition:
New
Adding to cart… The item has been added
Description

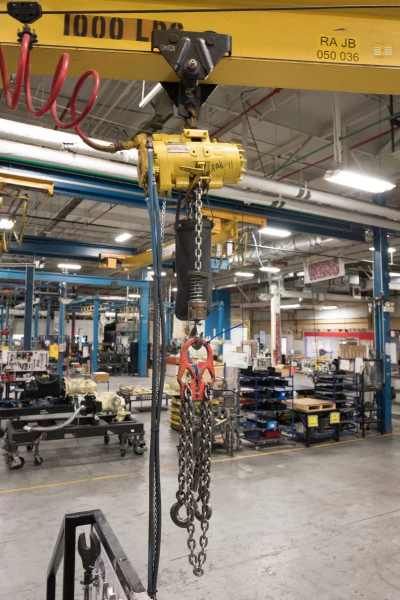

Built for continuous lifting in manufacturing, maintenance, steel processing, and material handling operations, the Ingersoll Rand ML1000K-2C10-C6U MLK Series Air Chain Hoist combines a 1 Ton (2,200 lb) lifting capacity with a 10 ft lift and 6 ft pendant control drop to provide dependable load handling in demanding production environments. Its air-powered design makes it well suited for facilities where pneumatic equipment is preferred, while the pilot pendent control (a suspended hand control that allows precise load positioning) helps operators accurately raise and lower loads during repetitive lifting tasks.

The MLK Series has been proven in industrial service for more than 25 years and features a common platform with interchangeable service parts to simplify maintenance. A 100% duty cycle allows continuous operation throughout production shifts, while the self-adjusting air-operated disc brake, planetary gearing, and anti-friction bearings contribute to reliable performance in high-cycle lifting applications. Standard swivel top hook suspension and a steel snap hook provide flexible installation for a wide variety of overhead lifting points. Product details are based on the manufacturer catalog and supporting documentation.

Type: Air Chain Hoist | Series: MLK Series | Capacity: 1 Ton (2,200 lbs) | Lift: 10 ft | Pendant Drop: 6 ft | Control: Pendent Control | Top Suspension: Swivel Top Hook | Bottom Suspension: Steel Snap Hook | Chain Falls: 2 | Hook Mount Headroom: 18 in. | Trolley Mount Headroom: 18 in. | Lifting Speed (Rated Load): 28 ft/min (8.5 m/min) | Lifting Speed (No Load): 53 ft/min (16.2 m/min) | Lowering Speed (Rated Load): 49 ft/min (14.9 m/min) | Lowering Speed (No Load): 30 ft/min (9.1 m/min) | Chain Size: 6.4 × 19.5

Features:

  • 100% duty cycle with HMI Duty Classification A5 and FEM 9.511 Duty Classification 2m for continuous production service.

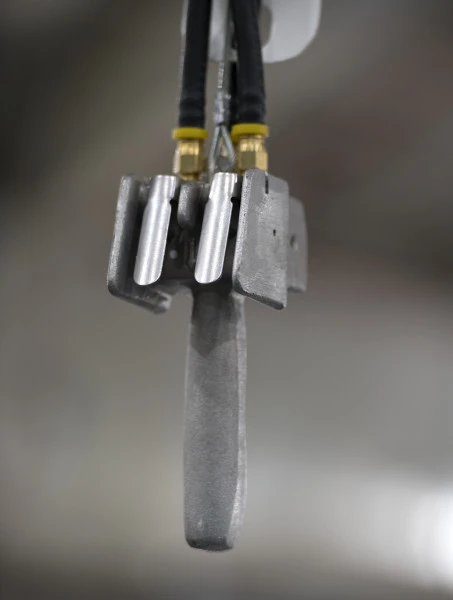

  • Pilot pendent control provides smooth, accurate load spotting for repetitive lifting operations.
  • Self-adjusting, air-operated disc brake is spring applied and air released, with wear testing exceeding one million cycles before replacement.
  • Planetary gear system distributes load across multiple gear teeth to support reliable torque transmission and extended component life.
  • Ball and roller bearings support all rotating components for smooth operation and reduced wear.
  • Interchangeable motor, brake, and throttle components simplify servicing and reduce maintenance downtime.
  • Inlet swivel, exhaust air chain lubrication, and control adjustment screws support convenient operation and routine maintenance.
  • Spark-resistant configurations and additional factory options are available for specialized operating environments.

Applications:

  • Moving components through high-production manufacturing and assembly lines.
  • Supporting maintenance and repair operations in industrial plants and processing facilities.
  • Handling materials in steel mills, foundries, and electroplating operations where continuous-duty lifting is required.
  • Positioning machinery, tooling, dies, and fabricated components during installation or service.
  • General overhead lifting where accurate load control and rapid lifting cycles improve workflow efficiency.

FAQs:

  • Q: What does the 6 ft pendant drop refer to?
    A: It is the length of the pendant control suspended below the hoist, allowing the operator to safely control lifting and lowering while standing away from the load.
  • Q: Is this hoist suitable for continuous production use?
    A: Yes. The MLK Series is rated for a 100% duty cycle with HMI Duty Classification A5, making it suitable for continuous industrial operation when used within its rated capacity.
  • Q: What type of suspension does this model use?
    A: This model features a swivel top hook for mounting and a steel snap hook on the lower block for attaching the load.
  • Q: Can this hoist provide precise load positioning?
    A: Yes. The pilot pendant control is designed to provide smooth throttle response for accurate load spotting during lifting operations.



industrial-tools-parts-breakdown.pngLooking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog.

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!

Specifications
Type:
Air Chain Hoist
Series:
MLK Series
Capacity (tons):
1
Capacity (lbs):
2200
Lift (ft.):
10
Drop (ft.):
6
Control:
Pendent Control
Top Suspension:
Swivel Top Hook
Bottom Suspension:
Steel Snap Hook
Chain Falls:
2
Hook Mount Headroom (in.):
18
Trolley Mount Headroom (in.):
18
Lifting Speed Rated Load (ft/min):
28
Lifting Speed Rated Load (m/min):
8.5
Lifting Speed No Load (ft/min):
53
Lifting Speed No Load (m/min):
16.2
Lowering Speed Rated Load (ft/min):
49
Lowering Speed Rated Load (m/min):
14.9
Lowering Speed No Load (ft/min):
30
Lowering Speed No Load (m/min):
9.1
Chain Size:
6.4 x 19.5
Warranty Information
One year warranty against manufacturers defects.
