Ingersoll Rand ML1000K-2C10-C10U MLK Series Air Chain Hoist | 1 Ton Capacity | 10 ft Lift | 10 ft Drop | Steel Snap Hook | Pendent Control

Designed for continuous lifting in manufacturing, maintenance, fabrication, and material handling operations, the Ingersoll Rand ML1000K-2C10-C10U MLK Series Air Chain Hoist delivers a 1 Ton (2,200 lb) lifting capacity with a 10 ft lift and 10 ft pendant control drop. Powered by compressed air, this hoist features a pilot pendent control (a suspended hand control that enables smooth and precise load positioning), allowing operators to accurately raise, lower, and position loads during repetitive industrial lifting tasks.

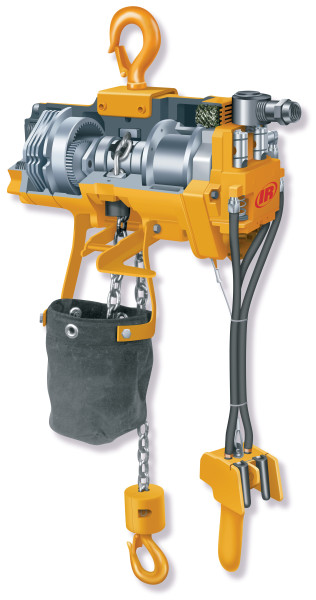

Built on the proven MLK Series platform, this air chain hoist is engineered for continuous-duty industrial service with interchangeable internal components that simplify maintenance and reduce downtime. A 100% duty cycle, self-adjusting air-operated disc brake, enclosed planetary gearing, and anti-friction bearings work together to provide dependable lifting performance. The hook-mounted suspension and steel snap hook provide flexible installation across cranes, monorails, and overhead lifting systems.

Type: Air Chain Hoist | Series: MLK Series | Capacity: 1 Ton (2,200 lbs) | Lift: 10 ft | Pendant Drop: 10 ft | Control Type: Pendent Control | Top Suspension: Hook Mount | Bottom Suspension: Steel Snap Hook | Chain Falls: 2 | Hook Mount Headroom: 18 in. | Trolley Mount Headroom: 18 in. | Lifting Speed (Rated Load): 28 ft/min (8.5 m/min) | Lifting Speed (No Load): 53 ft/min (16.2 m/min) | Lowering Speed (Rated Load): 49 ft/min (14.9 m/min) | Lowering Speed (No Load): 30 ft/min (9.1 m/min) | Chain Size: 6.4 × 19.5

Features:

• 100% duty cycle with HMI Duty Classification A5 and FEM 9.511 Duty Classification 2m for continuous industrial operation.
• Pilot pendent control provides smooth, responsive load positioning for repetitive lifting applications.
• Self-adjusting, spring-applied, air-released disc brake securely holds suspended loads throughout lifting and lowering operations.
• Planetary gear transmission distributes loads evenly across multiple gear teeth to improve durability and operating efficiency.
• Ball and roller bearings support rotating components for smooth, dependable lifting performance.
• Interchangeable motor, brake, and throttle assemblies simplify maintenance and help reduce service downtime.
• Integrated inlet swivel, exhaust chain lubrication, and accessible control adjustments facilitate routine servicing.
• Optional spark-resistant configurations are available for specialized industrial applications.

Applications:

• Continuous-duty lifting in manufacturing, fabrication, and production facilities.
• Supporting equipment installation, maintenance, and repair operations.
• Handling fabricated steel components, tooling, dies, and industrial assemblies.
• Overhead lifting for production lines, maintenance bays, and assembly workstations.
• General industrial material handling requiring precise pneumatic load positioning.

FAQs:

• Q: What is the advantage of the 10 ft pendant drop?
  A: The 10 ft pendant drop provides a comfortable operating height, allowing operators to maintain clear visibility and accurate control of suspended loads.
• Q: Is this hoist suitable for continuous-duty industrial use?
  A: Yes. The MLK Series features a 100% duty cycle, making it suitable for continuous lifting applications within its rated capacity.
• Q: What type of hook is included with this hoist?
  A: This model includes a steel snap hook for secure attachment to compatible loads and lifting hardware.
• Q: What is the maximum lifting capacity?
  A: The ML1000K-2C10-C10U is rated to safely lift loads up to 1 Ton (2,200 lbs) when operated according to the manufacturer's recommendations.

Looking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog.

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
