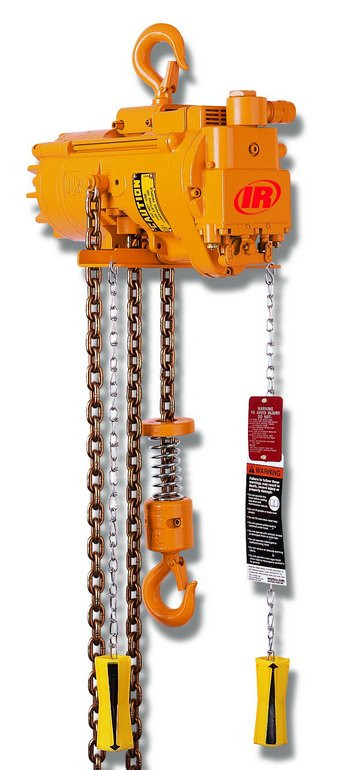

Ingersoll Rand ML1000K-1C80-C8 MLK Series Air Chain Hoist | 1 Ton Capacity | 80 ft Lift | 8 ft Drop | Steel Snap Hook | Pull Chain Control

Designed for continuous lifting in manufacturing, maintenance, fabrication, and material handling operations, the Ingersoll Rand ML1000K-1C80-C8 MLK Series Air Chain Hoist delivers a 1 Ton (2,200 lb) lifting capacity with an extended 80 ft lift and 8 ft control drop. Powered by compressed air, this hoist features a pull chain control, allowing operators to manually actuate the lifting mechanism for dependable load handling without the need for a pendant control station. Its long lifting height makes it well suited for facilities with high ceilings, multi-level production areas, and elevated overhead lifting systems.

Built on the proven MLK Series platform, this air chain hoist is engineered for continuous-duty industrial service with interchangeable internal components that simplify maintenance and minimize downtime. A 100% duty cycle, self-adjusting air-operated disc brake, enclosed planetary gearing, and anti-friction bearings work together to provide dependable lifting performance. The hook-mounted suspension and steel snap hook provide versatile installation across cranes, monorails, and other overhead lifting applications.

Type: Air Chain Hoist | Series: MLK Series | Capacity: 1 Ton (2,200 lbs) | Lift: 80 ft | Control Drop: 8 ft | Control Type: Pull Chain Control | Top Suspension: Hook Mount | Bottom Suspension: Steel Snap Hook | Chain Falls: 2 | Hook Mount Headroom: 18 in. | Trolley Mount Headroom: 18 in. | Lifting Speed (Rated Load): 28 ft/min (8.5 m/min) | Lifting Speed (No Load): 53 ft/min (16.2 m/min) | Lowering Speed (Rated Load): 49 ft/min (14.9 m/min) | Lowering Speed (No Load): 30 ft/min (9.1 m/min) | Chain Size: 6.4 × 19.5

Features:

• 100% duty cycle with HMI Duty Classification A5 and FEM 9.511 Duty Classification 2m for continuous industrial operation.
• Manual pull chain control provides dependable operation without requiring a pendant control station.
• Extended 80 ft lift is well suited for facilities with high overhead lifting requirements.
• Self-adjusting, spring-applied, air-released disc brake securely holds suspended loads throughout lifting and lowering operations.
• Planetary gear transmission distributes loads evenly across multiple gear teeth to improve durability and operating efficiency.
• Ball and roller bearings support rotating components for smooth, reliable lifting performance.
• Interchangeable motor, brake, and throttle assemblies simplify maintenance and help reduce service downtime.
• Integrated inlet swivel, exhaust chain lubrication, and accessible control adjustments facilitate routine servicing.

Applications:

• High-bay manufacturing and fabrication facilities.
• Maintenance operations involving elevated machinery and equipment.
• Material handling on overhead crane systems and monorails.
• Lifting heavy tooling, fabricated steel components, and industrial assemblies.
• Industrial applications requiring long vertical lifting travel with pneumatic operation.

FAQs:

• Q: What is the advantage of the 80 ft lift?
  A: The extended lifting height allows the hoist to handle loads in facilities with tall ceilings, elevated structures, and multi-level production environments.
• Q: Why does this model have an 8 ft control drop?
  A: The pull chain control is designed to provide comfortable manual operation while maintaining dependable control of the lifting mechanism.
• Q: Is this hoist suitable for continuous-duty industrial applications?
  A: Yes. The MLK Series features a 100% duty cycle, making it suitable for continuous industrial lifting within its rated capacity.
• Q: What is the maximum lifting capacity?
  A: The ML1000K-1C80-C8 is rated to safely lift loads up to 1 Ton (2,200 lbs) when operated according to the manufacturer's recommendations.

Looking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog.

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
