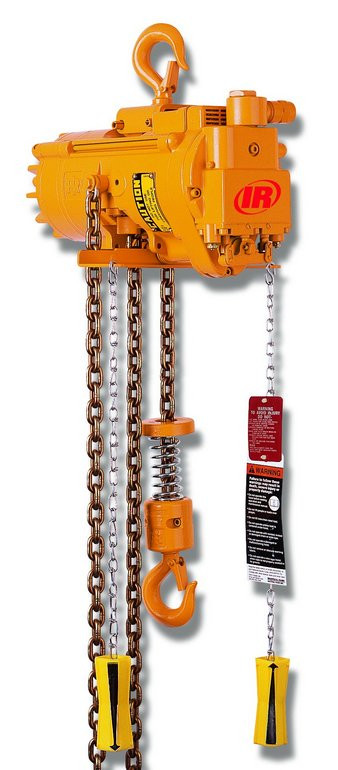

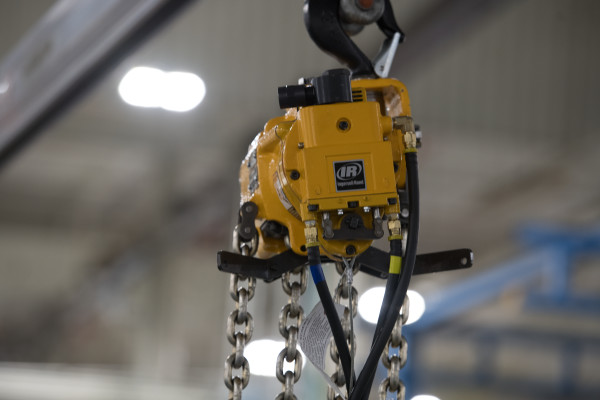

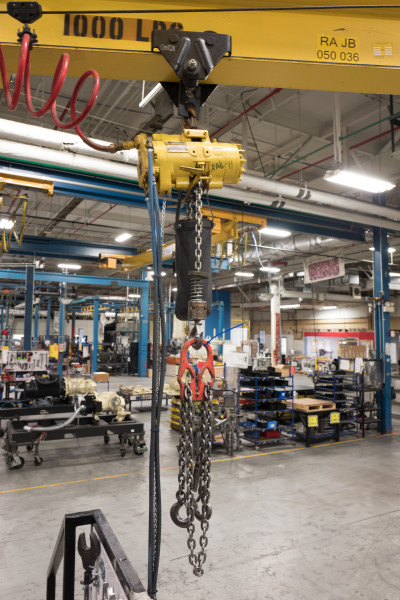

Ingersoll Rand ML1000K-1C35-C30S MLK Series Air Chain Hoist | 1 Ton Capacity | 35 ft Lift | 30 ft Drop | Steel Snap Hook | Pull Chain Control

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Ingersoll Rand

Ingersoll Rand ML1000K-1C35-C30S MLK Series Air Chain Hoist | 1 Ton Capacity | 35 ft Lift | 30 ft Drop | Steel Snap Hook | Pull Chain Control

Please Call (800) 608-5210 for Price and Availability or Email info@intlairtool.com

Availability:
Available To Order From Supplier
SKU:
ML1000K-1C35-C30S
Weight:
77.0000 LBS
Condition:
New
Description


Designed for continuous lifting in manufacturing, maintenance, fabrication, and material handling operations, the Ingersoll Rand ML1000K-1C35-C30S MLK Series Air Chain Hoist delivers a 1 Ton (2,200 lb) lifting capacity with a 35 ft lift and 30 ft control drop. Powered by compressed air, this hoist features a pull chain control, allowing operators to manually actuate the lifting mechanism for dependable load handling without the need for a pendant control station. Its robust design is ideal for facilities requiring long lift heights while maintaining reliable pneumatic operation.

Built on the proven MLK Series platform, this air chain hoist is engineered for continuous-duty industrial service with interchangeable internal components that simplify maintenance and reduce downtime. A 100% duty cycle, self-adjusting air-operated disc brake, enclosed planetary gearing, and anti-friction bearings work together to provide dependable lifting performance. The hook-mounted suspension and steel snap hook allow versatile installation across cranes, monorails, and overhead lifting systems.

Type: Air Chain Hoist | Series: MLK Series | Capacity: 1 Ton (2,200 lbs) | Lift: 35 ft | Control Drop: 30 ft | Control Type: Pull Chain Control | Top Suspension: Hook Mount | Bottom Suspension: Steel Snap Hook | Chain Falls: 2 | Hook Mount Headroom: 18 in. | Trolley Mount Headroom: 18 in. | Lifting Speed (Rated Load): 28 ft/min (8.5 m/min) | Lifting Speed (No Load): 53 ft/min (16.2 m/min) | Lowering Speed (Rated Load): 49 ft/min (14.9 m/min) | Lowering Speed (No Load): 30 ft/min (9.1 m/min) | Chain Size: 6.4 × 19.5

Features:

  • 100% duty cycle with HMI Duty Classification A5 and FEM 9.511 Duty Classification 2m for continuous industrial operation.
  • Manual pull chain control provides dependable operation without requiring a pendant control station.
  • Extended 30 ft control drop allows convenient operation when the hoist is mounted on high overhead structures.
  • Self-adjusting, spring-applied, air-released disc brake securely holds suspended loads throughout lifting and lowering operations.
  • Planetary gear transmission distributes loads evenly across multiple gear teeth to improve durability and operating efficiency.
  • Ball and roller bearings support rotating components for smooth, reliable lifting performance.
  • Interchangeable motor, brake, and throttle assemblies simplify maintenance and help reduce service downtime.
  • Integrated inlet swivel, exhaust chain lubrication, and accessible control adjustments facilitate routine servicing.

Applications:

  • Continuous-duty lifting in manufacturing, fabrication, and production facilities.
  • Supporting equipment installation, maintenance, and repair operations.
  • Handling heavy tooling, fabricated steel components, and industrial assemblies.
  • Overhead lifting on crane systems, monorails, and elevated workstations.
  • Material handling applications requiring long lift heights and extended operator reach.

FAQs:

  • Q: Why does this hoist have a 30 ft control drop?
    A: The extended control drop enables operators to safely actuate the pull chain from floor level when the hoist is mounted at significant heights.
  • Q: Is this hoist suitable for continuous industrial use?
    A: Yes. The MLK Series is designed with a 100% duty cycle, making it suitable for continuous lifting operations within its rated capacity.
  • Q: What type of hook is supplied with this model?
    A: This hoist includes a steel snap hook for secure attachment to compatible loads and lifting accessories.
  • Q: What is the rated lifting capacity?
    A: The ML1000K-1C35-C30S is rated to safely lift loads up to 1 Ton (2,200 lbs) when operated according to the manufacturer's guidelines.



industrial-tools-parts-breakdown.pngLooking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog.

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!

Specifications
Type:
Air Chain Hoist
Series:
MLK Series
Capacity (tons):
1
Capacity (lbs):
2200
Lift (ft.):
35
Drop (ft.):
30
Control:
Pull Chain Control
Top Suspension:
Swivel Top Hook
Bottom Suspension:
Steel Snap Hook
Chain Falls:
2
Hook Mount Headroom (in.):
18
Trolley Mount Headroom (in.):
18
Lifting Speed Rated Load (ft/min):
28
Lifting Speed Rated Load (m/min):
8.5
Lifting Speed No Load (ft/min):
53
Lifting Speed No Load (m/min):
16.2
Lowering Speed Rated Load (ft/min):
49
Lowering Speed Rated Load (m/min):
14.9
Lowering Speed No Load (ft/min):
30
Lowering Speed No Load (m/min):
9.1
Chain Size:
6.4 x 19.5
Warranty Information
One year warranty against manufacturers defects.
