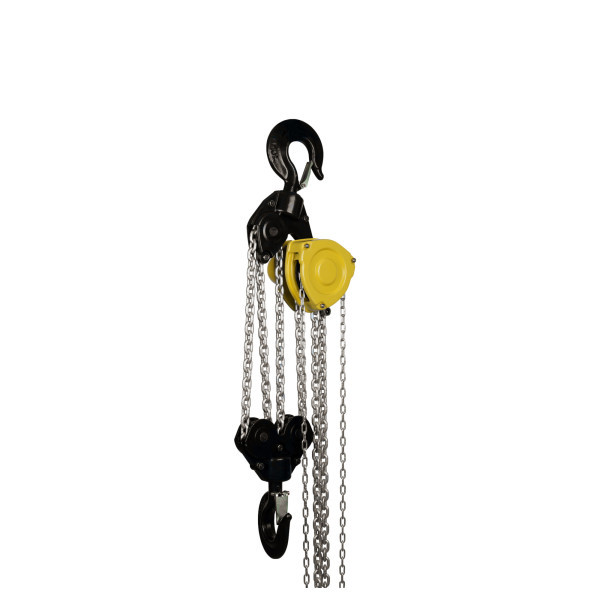

Ingersoll Rand KM500V KM Kinetic Series Manual Hoist | 5 Ton Capacity | Overload Clutch

Ingersoll Rand KM500V Manual Hoist is a Kinetic Series manual chain hoist configured for controlled hand-operated lifting and load positioning. This 5-ton capacity model is rated for 11,000 lbs. and uses two chain falls for its rated lifting capacity. The KM500V configuration adds an overload clutch to the Kinetic Series design, making it suitable for compatible industrial material-handling, maintenance, construction, and equipment installation applications.

The KM500 requires 74.9 lbs. of pull to lift the rated load and uses premium Grade 100 electro-galvanized load chain specified at 2.96 lb./ft. Full bearing construction on the load sprockets and pinion shaft is designed to reduce pull effort during manual operation, while the reinforced double pawl brake provides controlled load handling. The KM500V is the overload-clutch base configuration; lift and hand chain drop are specified separately for configured versions.

Type: Manual Chain Hoist | Series: Kinetic | Model: KM500V | Capacity: 5 Ton (11,000 lbs.) | Chain Falls: 2 | Overload Protection: Overload Clutch | Pull to Lift Rated Load: 74.9 lbs. | Load Chain Weight: 2.96 lb./ft.

Features:

• Overload clutch provides the specified overload-protection feature for this Kinetic Series configuration.
• Two chain falls provide the specified lifting arrangement for the 5-ton capacity.
• All-steel construction provides the specified Kinetic Series manual hoist design for compatible lifting applications.
• Reinforced double pawl brake with large-diameter pawl springs provides controlled load handling during manual lifting and positioning.
• Full bearing construction on the load sprockets and pinion shaft is designed to reduce pull effort during manual operation.
• Premium Grade 100 electro-galvanized chain provides the specified load-chain construction and corrosion resistance.
• Heavy-duty cast hook latches are designed to reduce the need for latch replacements.
• The Kinetic Series is CE certified and is stated by the manufacturer to meet or exceed regional requirements including ASME B30.16 and HST-2M.

Applications:

• Manual lifting and positioning of loads within the 11,000 lb. rated capacity.
• Industrial maintenance and MRO operations requiring a 5-ton manual chain hoist with overload protection.
• Equipment installation and material-handling tasks compatible with a two-chain-fall manual hoist.
• Construction applications requiring a 5-ton manual hoist with an overload clutch configuration.
• Replacement installations where the required capacity, chain-fall arrangement, and overload-clutch configuration match the KM500V.

FAQs:

• Q: What is the capacity of the KM500V?
  A: The hoist is rated for 5 tons, or 11,000 lbs.
• Q: What does the “V” indicate?
  A: The V configuration identifies the Kinetic Series hoist with the overload clutch option.
• Q: How many chain falls does the KM500V use?
  A: The KM500V uses two chain falls for its 5-ton rated capacity.
• Q: How much pull is required to lift the rated load?
  A: The manufacturer specifies 74.9 lbs. of pull to lift the rated load for the KM500 series.
• Q: What type of load chain does the KM500V use?
  A: The Kinetic Series uses premium Grade 100 electro-galvanized load chain. The KM500 series specifies a load-chain weight of 2.96 lb. per foot.
• Q: Does the KM500V specify a lift length?
  A: KM500V is the base overload-clutch model. The manufacturer specifies lift and hand chain drop separately for configured versions.
• Q: Is the overload clutch included with the KM500V?
  A: Yes. The supplied KM500V model is identified as the overload-clutch configuration.
• Q: What standards are associated with the Kinetic Series?
  A: The manufacturer states that Kinetic Series manual chain hoists are CE certified and meet or exceed regional requirements including ASME B30.16 and HST-2M.
