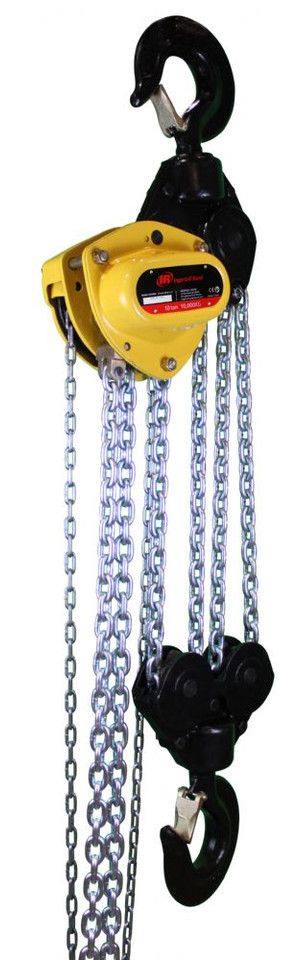

Ingersoll Rand KM500V-10-8 Manual Hoist is a Kinetic Series manual chain hoist designed for controlled hand-operated lifting and load positioning. This 5-ton capacity configuration is rated for 11,000 lbs. and provides 10 ft. of lift with an 8 ft. hand chain drop. The integrated overload clutch provides the specified overload-protection option, while the two chain falls support the higher-capacity lifting configuration for compatible industrial maintenance, construction, equipment installation, and material-handling applications.
The KM500 requires 74.9 lbs. of pull to lift the rated load and uses premium Grade 100 electro-galvanized load chain specified at 2.96 lb./ft. Full bearing construction on the load sprockets and pinion shaft is designed to reduce pull effort and support longer service life, while the reinforced double pawl brake provides controlled load handling. The 10 ft. lift and 8 ft. hand chain drop should be matched to the required vertical travel and available operator access.
Type: Manual Chain Hoist | Series: Kinetic | Model: KM500V-10-8 | Capacity: 5 Ton (11,000 lbs.) | Lift: 10 ft. | Hand Chain Drop: 8 ft. | Chain Falls: 2 | Overload Protection: Overload Clutch | Pull to Lift Rated Load: 74.9 lbs. | Load Chain Weight: 2.96 lb./ft. | Shipping Weight with 10 ft. Lift: 93.7 lbs.
Features:
- Overload clutch provides the specified overload protection option for this Kinetic Series configuration.
- Two chain falls provide the specified lifting arrangement for the 5-ton capacity.
- All-steel construction provides the specified Kinetic Series manual hoist design for compatible lifting applications.
- Reinforced double pawl brake with large-diameter pawl springs provides a dependable braking system for controlled load handling.
- Full bearing construction on the load sprockets and pinion shaft is designed to reduce pull effort and support longer service life.
- Premium Grade 100 electro-galvanized chain provides the specified load-chain construction with corrosion resistance for increased durability.
- Heavy-duty cast hook latches are designed to reduce the need for latch replacements.
- The 10 ft. lift provides a defined vertical travel configuration for compatible heavy-load lifting and positioning tasks.
- The Kinetic Series is CE certified and is stated by the manufacturer to meet or exceed regional requirements including ASME B30.16 and HST-2M.
Applications:
- Manual lifting and positioning of loads within the 11,000 lb. rated capacity.
- Industrial maintenance and MRO operations requiring a 5-ton manual chain hoist with overload protection.
- Equipment installation and material-handling tasks requiring up to 10 ft. of lift.
- Construction applications compatible with a 5-ton, two-chain-fall manual hoist.
- Replacement installations where the required capacity, lift, hand-chain drop, and overload-clutch configuration match the KM500V-10-8.
FAQs:
- Q: What is the capacity of the KM500V-10-8?
A: The hoist is rated for 5 tons, or 11,000 lbs. - Q: How much lift does the KM500V-10-8 provide?
A: This configuration provides 10 ft. of lift. - Q: What does the “8” in KM500V-10-8 indicate?
A: The configuration specifies an 8 ft. hand chain drop. - Q: What does the “V” indicate?
A: The V configuration identifies the hoist as including an overload clutch. - Q: How many chain falls does the KM500V-10-8 use?
A: The KM500 uses two chain falls. - Q: How much pull is required to lift the rated load?
A: The manufacturer specifies 74.9 lbs. of pull to lift the rated load for the KM500. - Q: What type of load chain does the KM500 use?
A: The Kinetic Series uses premium Grade 100 electro-galvanized load chain. The KM500 specifies a load-chain weight of 2.96 lb. per foot. - Q: What is the shipping weight of the KM500 with 10 ft. of lift?
A: The manufacturer lists a shipping weight of 93.7 lbs. for the KM500 with 10 ft. of lift. - Q: What standards are associated with the Kinetic Series?
A: The manufacturer states that Kinetic Series manual chain hoists are CE certified and meet or exceed regional requirements including ASME B30.16 and HST-2M.
| SKU | CAPACITY | NUMBER OF FALLS | PULL TO LIFT RATED LOAD | CHAIN WEIGHT | SHIPPING WEIGHT WITH 10' OF LIFT | ||||
|---|---|---|---|---|---|---|---|---|---|
| lbs | metric tons | lb | kg | lb/ft | kg/ft | lb | kg | ||
| KM025 | 550 | 0.25 | 1 | 41.8 | 19 | 0.25 | 0.11 | 9.5 | 4.3 |
| KM050 | 1,100 | 0.5 | 1 | 51.3 | 23.2 | 1.01 | 0.46 | 24.8 | 11.25 |
| KM100 | 2,200 | 1 | 1 | 63.8 | 29 | 1.21 | 0.55 | 28.4 | 12.9 |
| KM150 | 3,300 | 1.5 | 1 | 77.1 | 35 | 1.41 | 0.64 | 36 | 16.35 |
| KM200 | 4,400 | 2 | 1 | 79.4 | 36 | 1.55 | 0.7 | 46.3 | 21 |
| KM300 | 6,600 | 3 | 1 | 82.7 | 37.5 | 1.55 | 0.7 | 63.7 | 28.9 |
| KM500 | 11,000 | 5 | 2 | 74.9 | 34 | 2.96 | 1.34 | 93.7 | 42.5 |
| KM750 | 16,500 | 7.5 | 3 | 77.1 | 35 | 4.17 | 1.89 | 138.9 | 63 |
| KM1000 | 22,000 | 10 | 4 | 79.4 | 36 | 5.31 | 2.41 | 231.2 | 104.9 |
| KM2000 | 44,000 | 20 | 8 | 79.4x2 | 36x2 | 10.62 | 4.82 | 481.9 | 218.6 |
Looking for more information about Ingersoll Rand Manual Chain Hoist? Click here to view the Catalog
