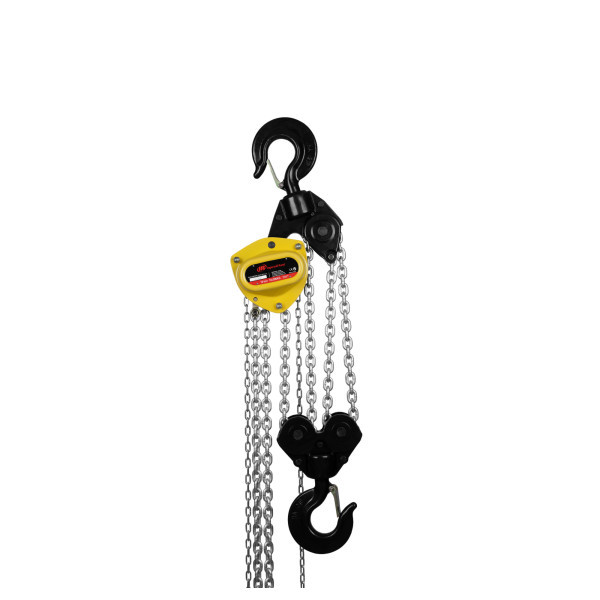

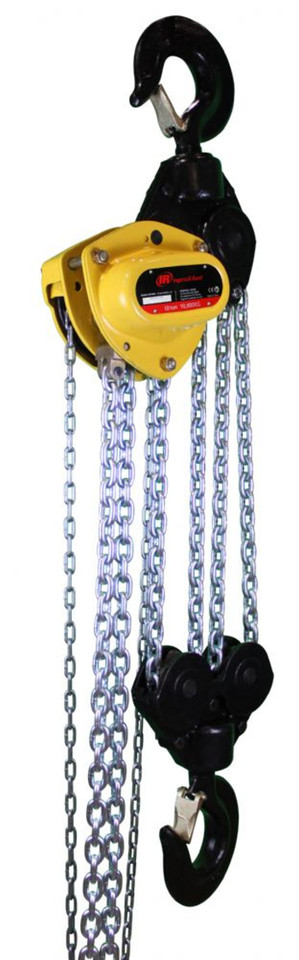

Ingersoll Rand KM500-20-18 KM Kinetic Series Manual Hoist | 5 Ton Capacity | 20 ft Lift | 18 ft Drop

Ingersoll Rand KM500-20-18 Manual Hoist is a Kinetic Series manual chain hoist built for controlled hand-operated lifting and load positioning. This 5-ton capacity configuration is rated for 11,000 lbs. and provides 20 ft. of lift with an 18 ft. hand chain drop. Its two-chain-fall arrangement provides the lifting configuration required for this capacity, making it suitable for compatible industrial material-handling, maintenance, construction, and equipment installation tasks.

The KM500 requires 74.9 lbs. of pull to lift the rated load and uses premium Grade 100 electro-galvanized load chain specified at 2.96 lb./ft. Full bearing construction on the load sprockets and pinion shaft is intended to reduce pull effort during manual operation, while the reinforced double pawl brake provides controlled load handling. The 20 ft. lift extends vertical travel for installations where a shorter configuration is insufficient, while the 18 ft. hand chain drop should be matched to operator access.

Type: Manual Chain Hoist | Series: Kinetic | Model: KM500-20-18 | Capacity: 5 Ton (11,000 lbs.) | Lift: 20 ft. | Hand Chain Drop: 18 ft. | Chain Falls: 2 | Pull to Lift Rated Load: 74.9 lbs. | Load Chain Weight: 2.96 lb./ft.

Features:

• Two chain falls provide the specified lifting arrangement for the 5-ton capacity.
• All-steel construction provides the specified Kinetic Series manual hoist configuration for compatible lifting applications.
• Reinforced double pawl brake with large-diameter pawl springs provides controlled load handling during manual lifting and positioning.
• Full bearing construction on the load sprockets and pinion shaft is intended to reduce pull effort during manual operation.
• Premium Grade 100 electro-galvanized chain provides the specified load-chain construction for the Kinetic Series.
• Heavy-duty cast hook latches are designed to reduce the need for latch replacements.
• The 20 ft. lift provides extended vertical travel for applications requiring additional lifting distance.
• The Kinetic Series is CE certified and is stated by the manufacturer to meet or exceed regional requirements including ASME B30.16 and HST-2M.

Applications:

• Manual lifting and positioning of loads within the 11,000 lb. rated capacity.
• Industrial maintenance and MRO operations requiring a 5-ton manual chain hoist.
• Equipment installation and material-handling tasks requiring up to 20 ft. of lift.
• Construction applications compatible with a 5-ton, two-chain-fall manual hoist.
• Replacement installations where the required capacity, lift, hand-chain drop, and mounting arrangement match the KM500-20-18 configuration.

FAQs:

• Q: What is the capacity of the KM500-20-18?
  A: The hoist is rated for 5 tons, or 11,000 lbs.
• Q: How much lift does the KM500-20-18 provide?
  A: This configuration provides 20 ft. of lift.
• Q: What does the “18” in KM500-20-18 indicate?
  A: The configuration specifies an 18 ft. hand chain drop.
• Q: How many chain falls does the KM500-20-18 use?
  A: The KM500 uses two chain falls.
• Q: How much pull is required to lift the rated load?
  A: The manufacturer specifies 74.9 lbs. of pull to lift the rated load for the KM500.
• Q: What type of load chain does the KM500 use?
  A: The Kinetic Series uses premium Grade 100 electro-galvanized load chain. The KM500 specifies a load-chain weight of 2.96 lb. per foot.
• Q: Is an overload clutch included with the KM500-20-18?
  A: The supplied KM500-20-18 configuration does not identify an overload clutch as included. The overload-clutch version should be selected when that feature is specifically required.
• Q: What standards are associated with the Kinetic Series?
  A: The manufacturer states that Kinetic Series manual chain hoists are CE certified and meet or exceed regional requirements including ASME B30.16 and HST-2M.
